266 Keysight N9010A EXA Service Guide
Analog/Digital IF Troubleshooting
25 MHz BW IF Section
8. Carefully disconnect the W15 or W36 cable at A13J7 as shown in Figure
7-1 or Figure 7-2.

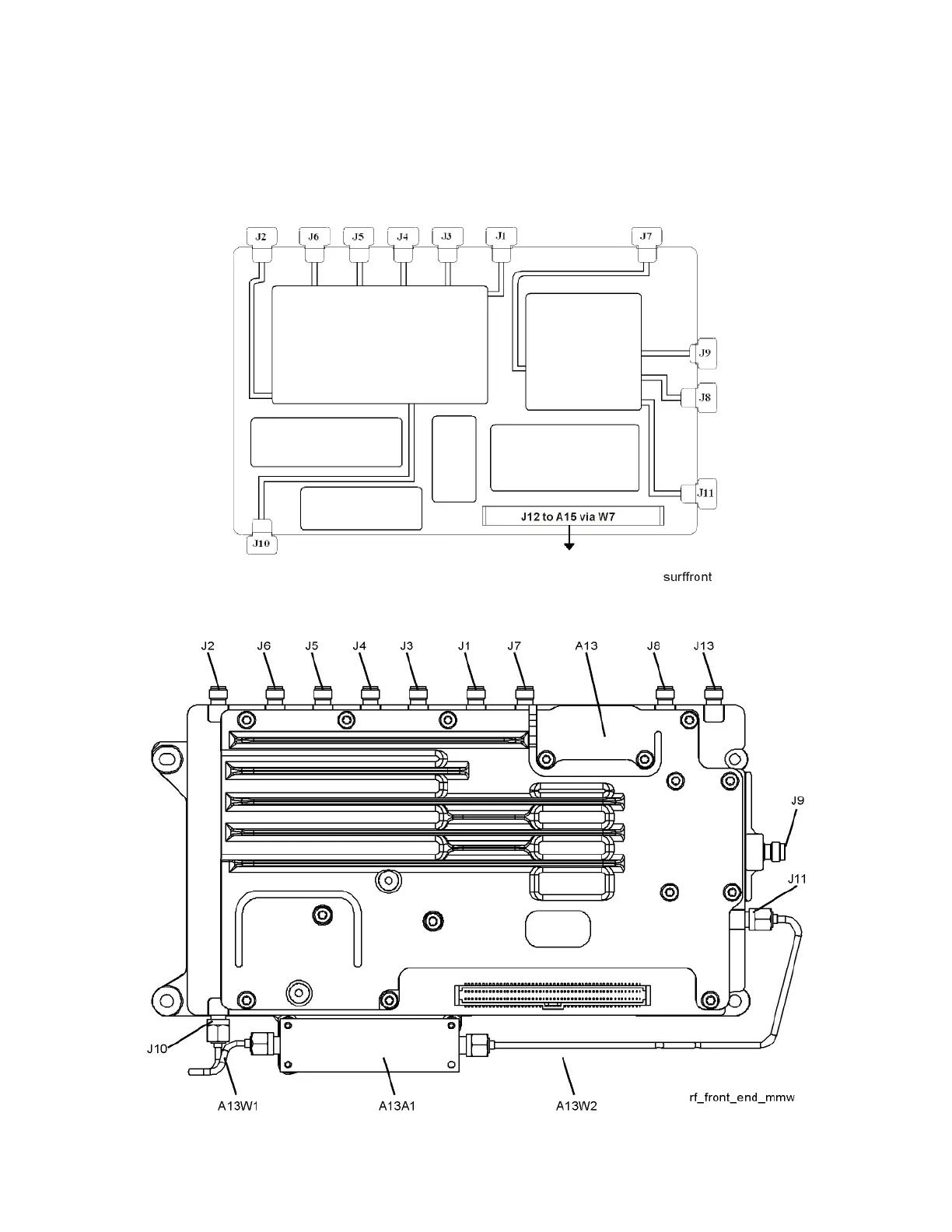

Figure 7-1 A13 RF Front End Assembly - RF/Microwave Instruments
Figure 7-2 A13 RF Front End Assembly - Millimeter Wave Instruments
