486 Keysight N9010A E
XA Service Guide
Assembly Replacement Procedur
es
RF Ar
ea (Option 503, 507, 513, 526)
2.
Refer to
Figur
e 15-15
. Remove semi-rigid coax cables W31 and W34.

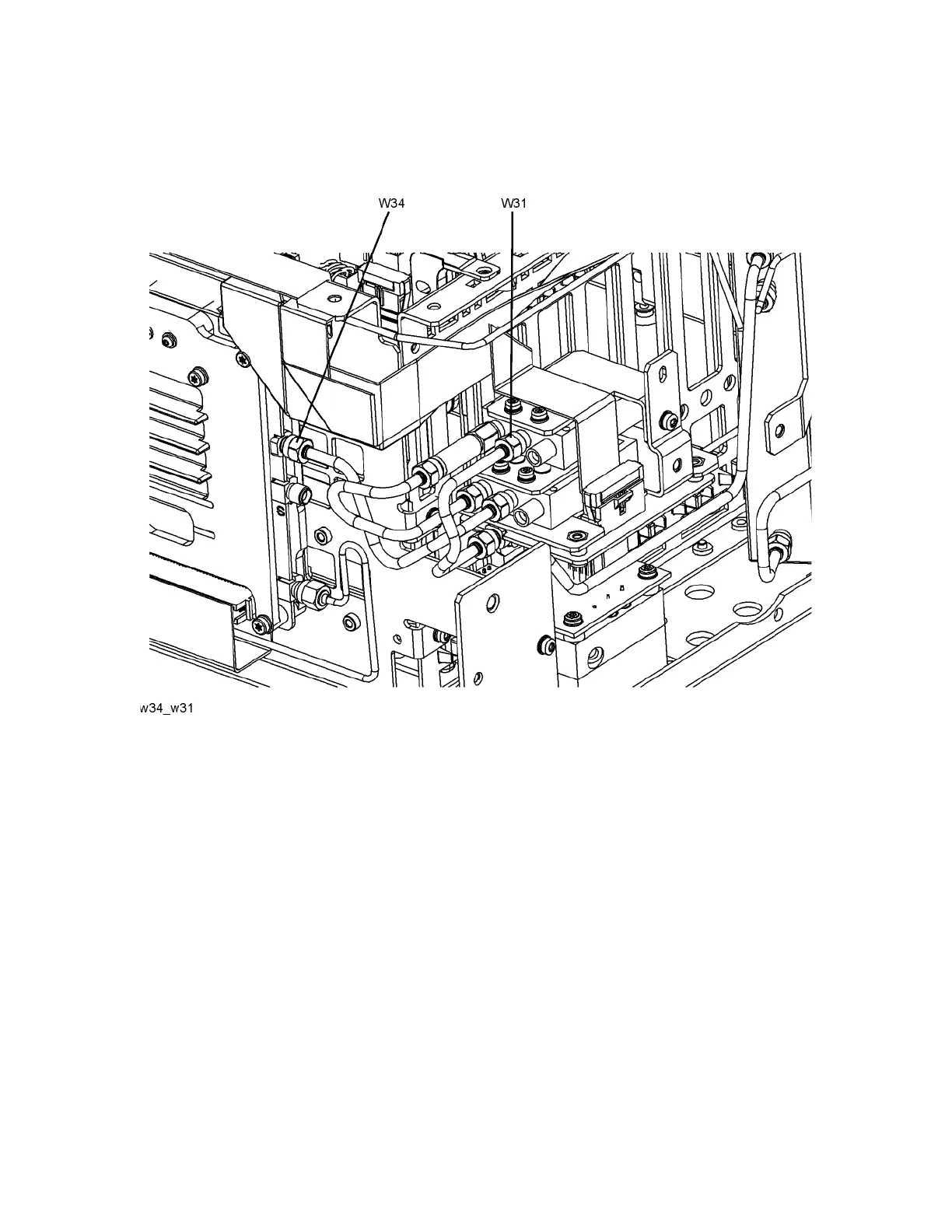

Figure 15-15
Remove W34 and W31
