548 Keysight N9010A EXA Service Guide
Assembly Replacement Procedures
Disk Drive
5. Refer to Figure 15-68. Carefully lift up the CPU top shield and unlock the
Hard Drive ribbon cable from the CPU Board by pressing down and out on
the two locking tabs located on the sides of the connector as shown.

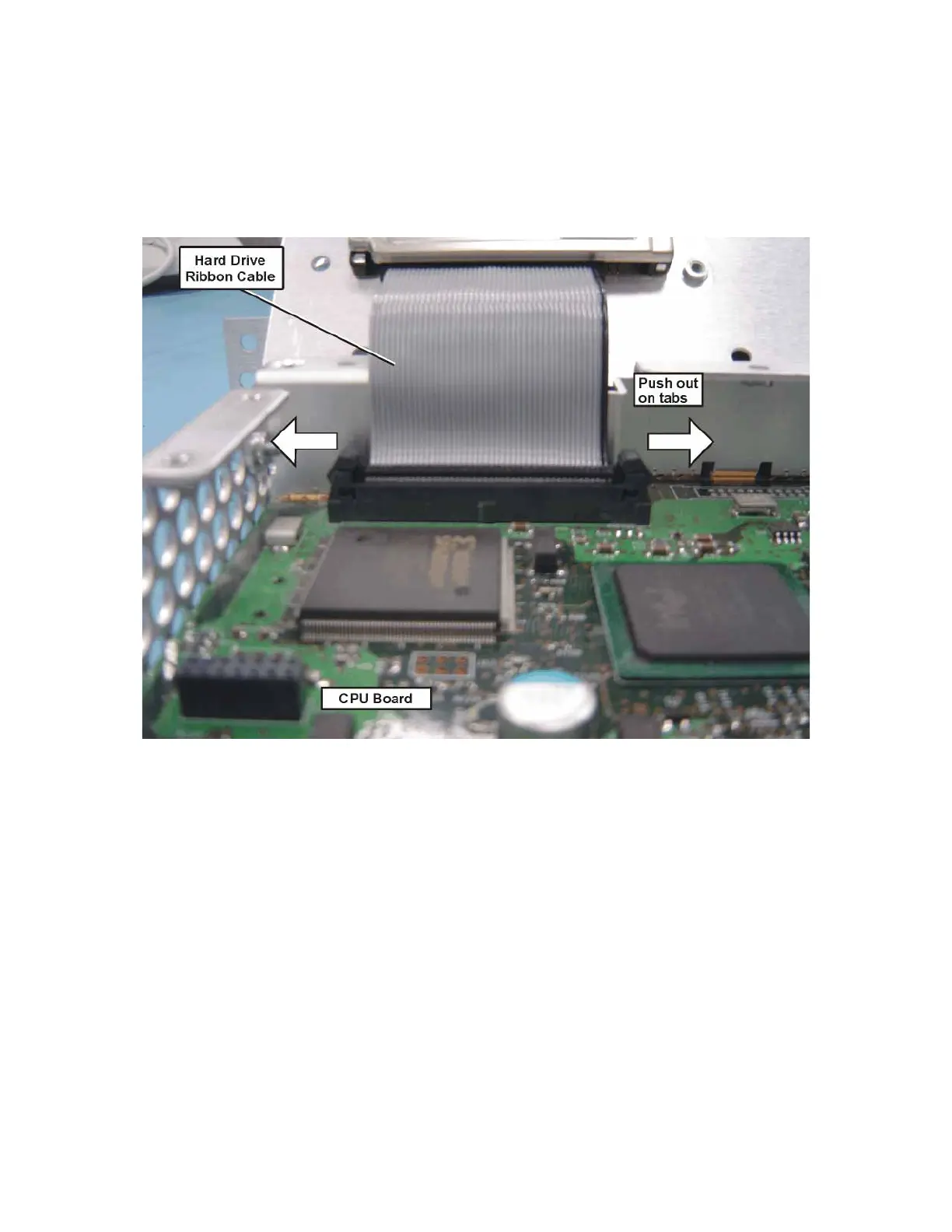

Figure 15-68 Hard Drive Ribbon Cable
