KoamTac KDC20 - Page 187

187
User ID
Defined
Scan User ID Valid User ID
Store User ID
Please
scan Pick data
User Input
Valid Barcode
Please scan
Bin data
User Input
Barcode
Match?
No
Yes
Yes
No
Up
Side Key
Scan button
Yes
No
Up
Side Key
Scan button
Yes
No
Ignore Scanned
Pick Label
Timeout
Ignore Scanned
Pick Label
Store
User ID,
KDC Serial Number,
Timestamp,
Pick Barcode
Exit to KDC Menu <Up>+<Down>

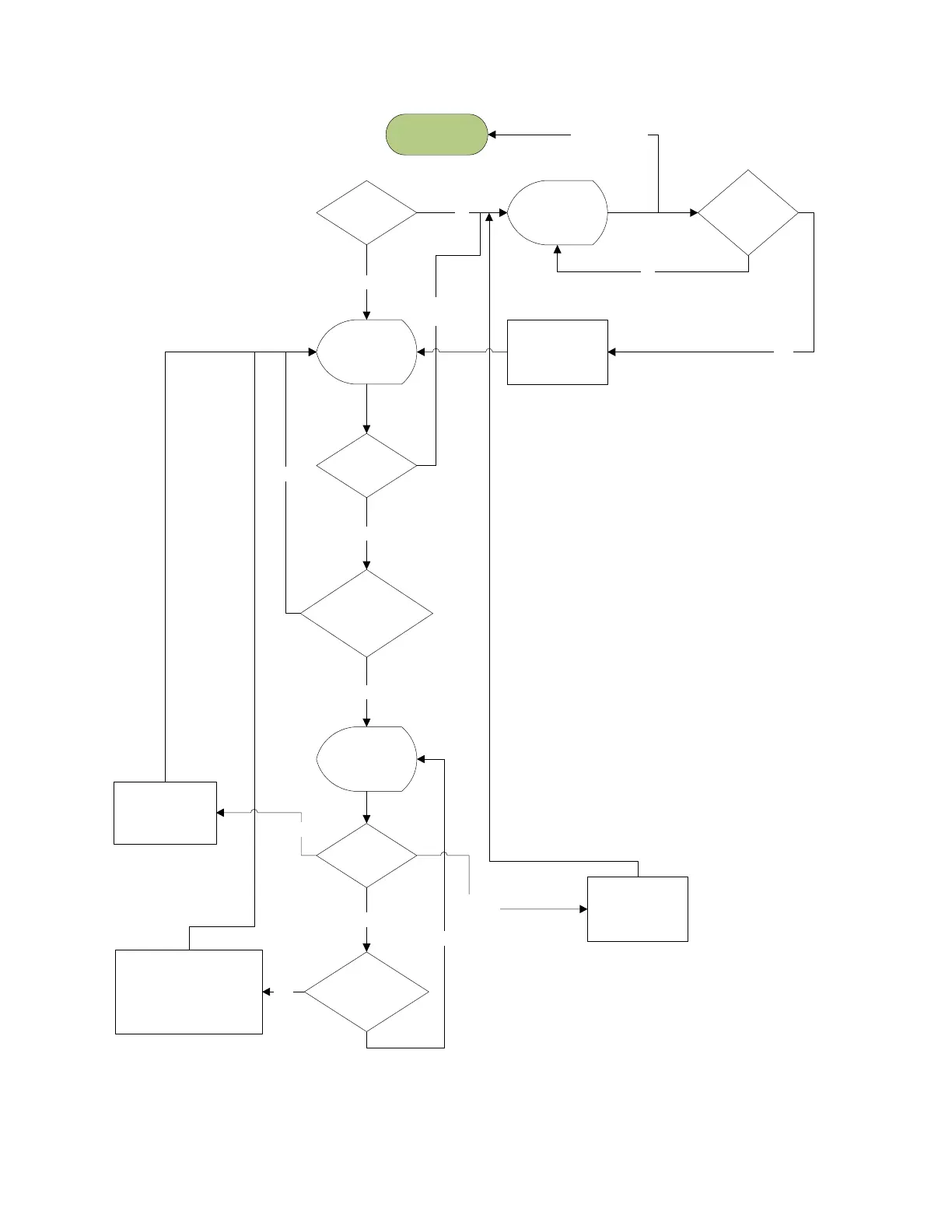

Figure 49 - Pick/BIN Application Flow Chart
