Manitowoc MLC650 User Manual

Manitowoc Published 08-12-19, Control # 224-13_v2 4-7
MLC650 OPERATOR MANUAL SET-UP AND INSTALLATION
4
(4)
(4)
Item Description
1 Upperworks Lifting Points
2 Lowerworks Lifting Points

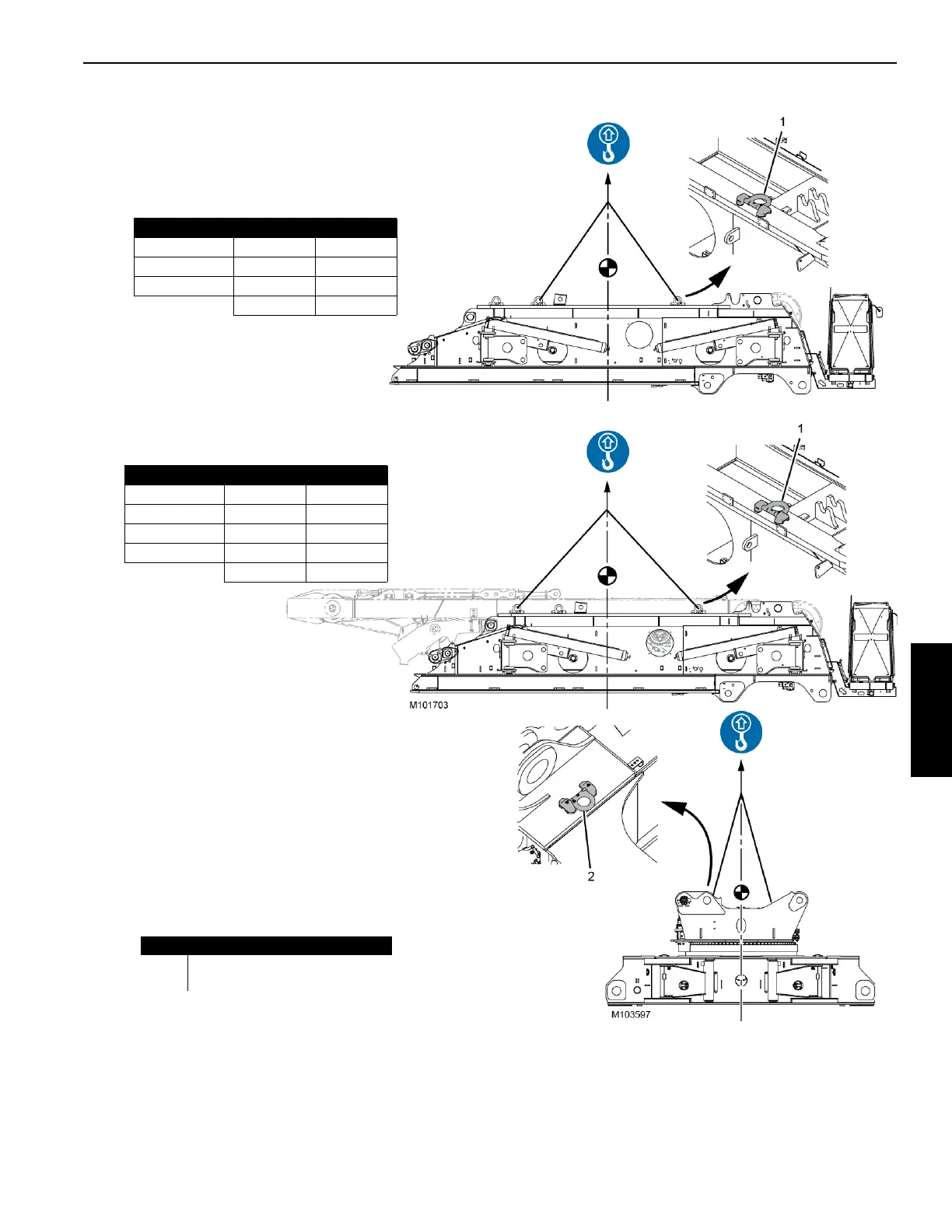

FIGURE 4-8
(4)
LIFTING POINTS WITHOUT LIVE MAST
4- SH 3-SHACKLES-40 t (44.00 USt)
4- SL 6-SLINGS-5,00 m (16.40 ft) - 31 751kg (70,000 lb)
LIFTING POINTS WITHLIVE MAST
4- SH 3-SHACKLES-40 t (44.00 USt)
4- SL 6-SLINGS-5,00 m (16.40 ft) - 31 751kg (70,000 lb)
LOWER WORKS LIFTING POINTS
42 200 kg (93,000 lb)
4- SH 3-SHACKLES-40 t (44 USt)
4- SL 6-SLINGS-5,00 m (16.40 ft) - 31 751kg (70,000 lb)
Item kg lb
Rotating Bed 43 800 76,600
Jacks 6 000 13,200
Drum 5 700 12,500
Total 46 500 102,300
Item kg lb
Rotating Bed 43 800 76,600
Jacks 6 000 13,200
Drum 5 700 12,500
Live Mast 26 800 59,000
Total 73 300 161,300
