SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-20
Published 08-12-19, Control # 224-13_v2

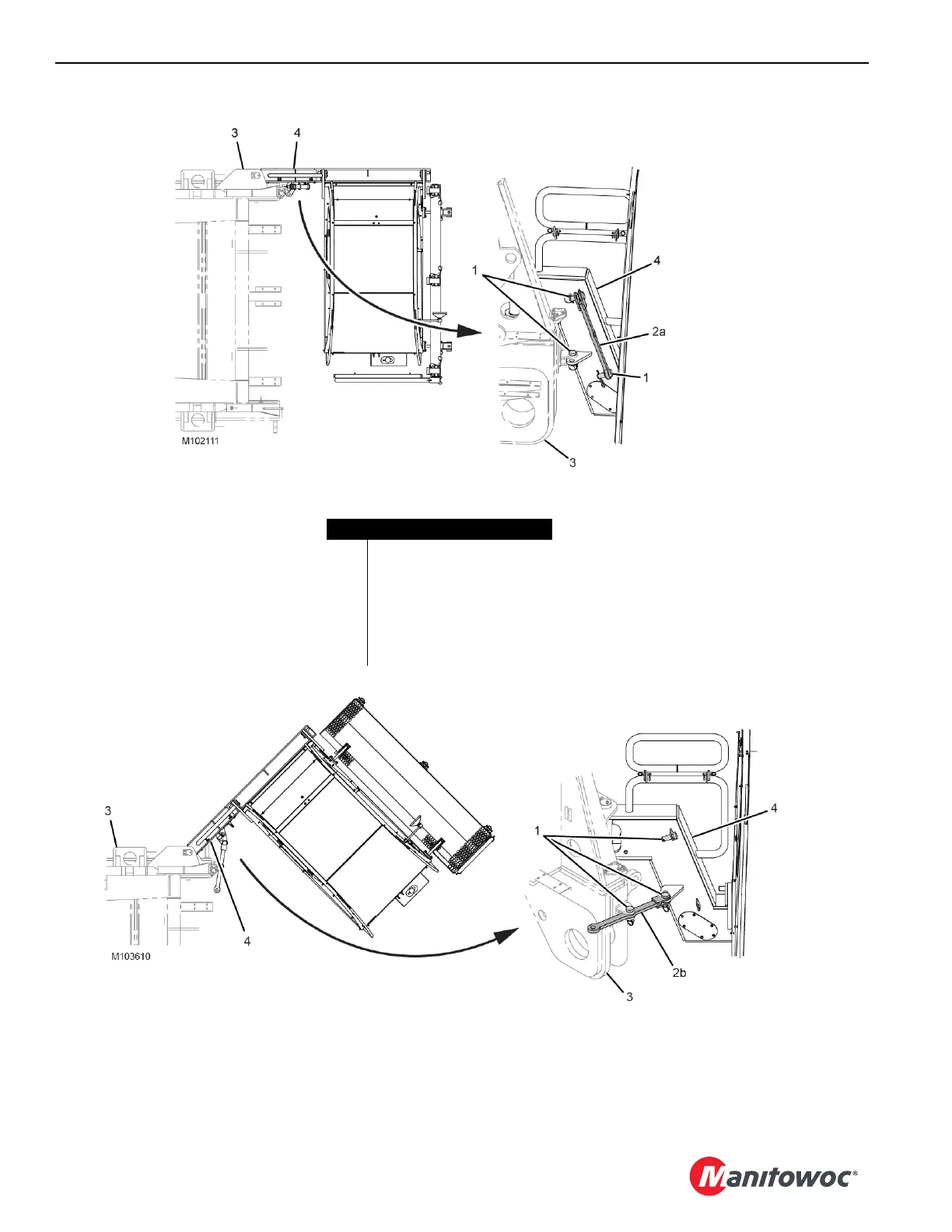

FIGURE 4-18
Item Description
1 Pins and Safety Pin (qty 3)
2a Strut (shipping position)
2b Strut (set up position)
2c Strut (working position)
3 Rotating Bed
4 Operator Cab Support
SETUP POSITION
SHIPPING POSITION
