MLC650 OPERATOR MANUAL SET-UP AND INSTALLATION
Deploy Operator Cab
See Figure 4-18 for the following procedure:
1. Remove the strut (2a) from the shipping position.
2. Remove the pins and safety pins (1) from the shipping
position that secure the operator cab support (4) to the
rotating bed (3).
3. Rotate the operator cab to the setup position.
4. Install the strut (2b) using the pins and safety pins (1) to
secure the operator cab in the setup position.
5. Loosen the clamping handle on the RCL light (5a), rotate
the light up into the working position (5b), tighten the
clamping handle.
Securing the operator cab in the setup position allows
cab access and the set up of the cab platforms and
handrails when the front rotating bed jacking cylinders
are deployed.

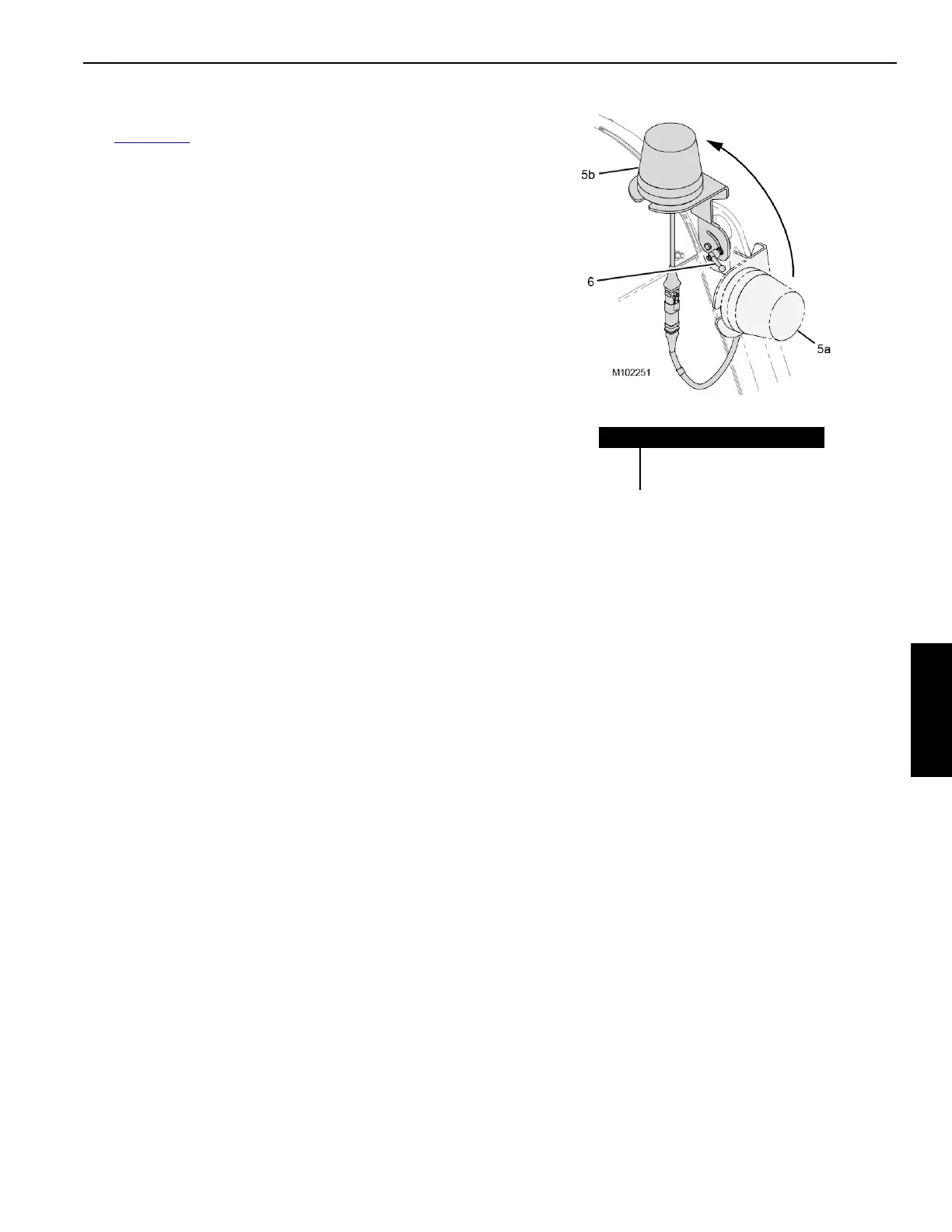

FIGURE 4-18 continued
Item Description
5a RCL Light (shipping position)
5b RCL Light (working position)
