SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL

4-22

Published 08-12-19, Control # 224-13_v2

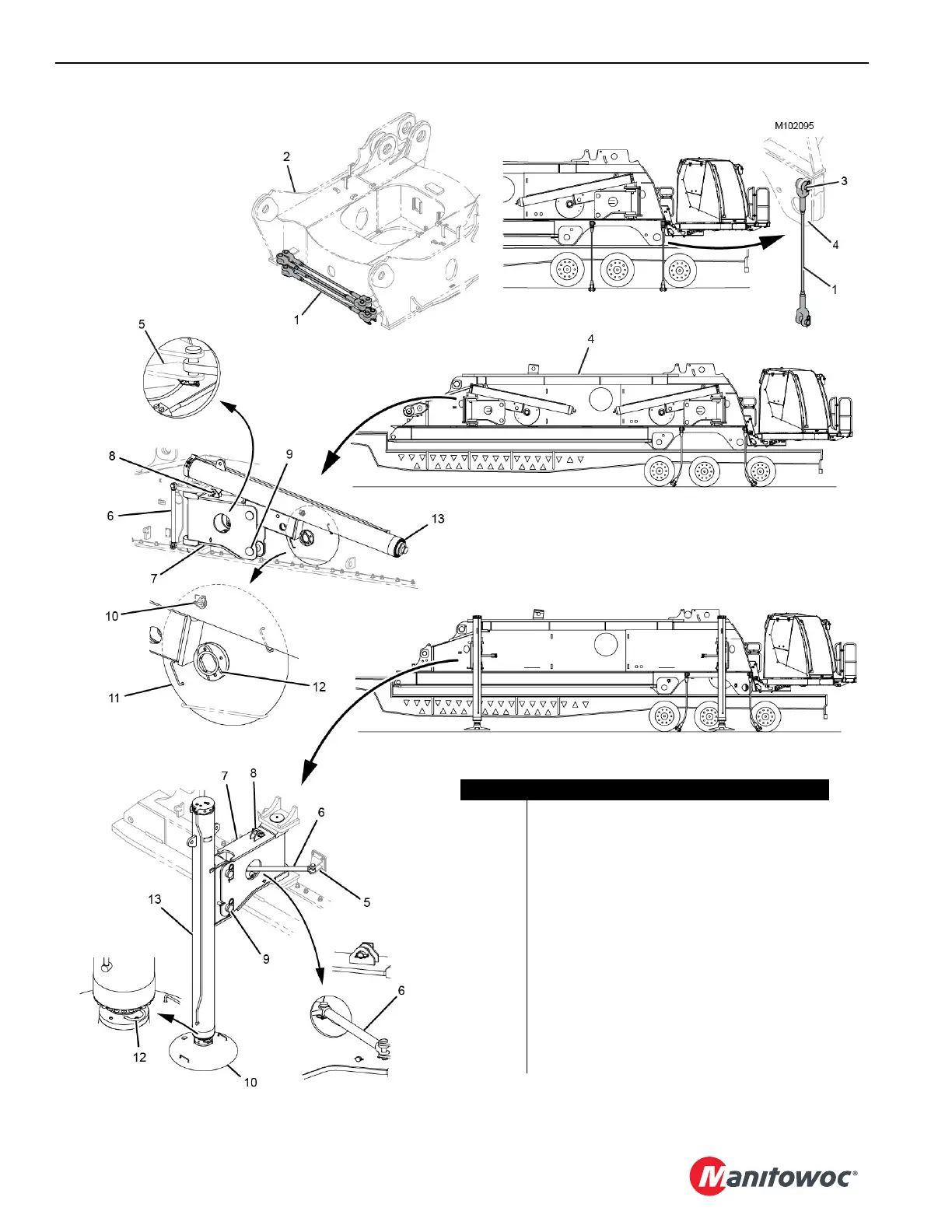

FIGURE 4-19

Item Description

1 Alignment Pendants

2 Adapter Frame

3 Pins and Safety Pins

4 Rotating Bed

5 Rotating Bed Lug (working and stored positions)

6 Outrigger Strut

7 Outrigger Beam Assembly

8 Jacking Cylinder Lug (stored position)

9 Jacking Cylinder Pin (working position)

10 Outrigger Pad Locking Pin (stored position)

11 Outrigger Pad

12 U-shaped Locking Pin

13 Rotating Bed Jacking Cylinder

View B–Set-Up Position

View C–Set-Up Position

View A- Stored Position
