MLC650 OPERATOR MANUAL SET-UP AND INSTALLATION
4
Removing and Storing Alignment Pendants
See Figure 4-48 for the following procedure:
1. Remove safety pin and pin (4) from the lugs on the
rotating bed (3) and adapter frame (2). Remove the
alignment pendants (1).
2. Install the alignment pendants on the adapter frame in
the stored position.

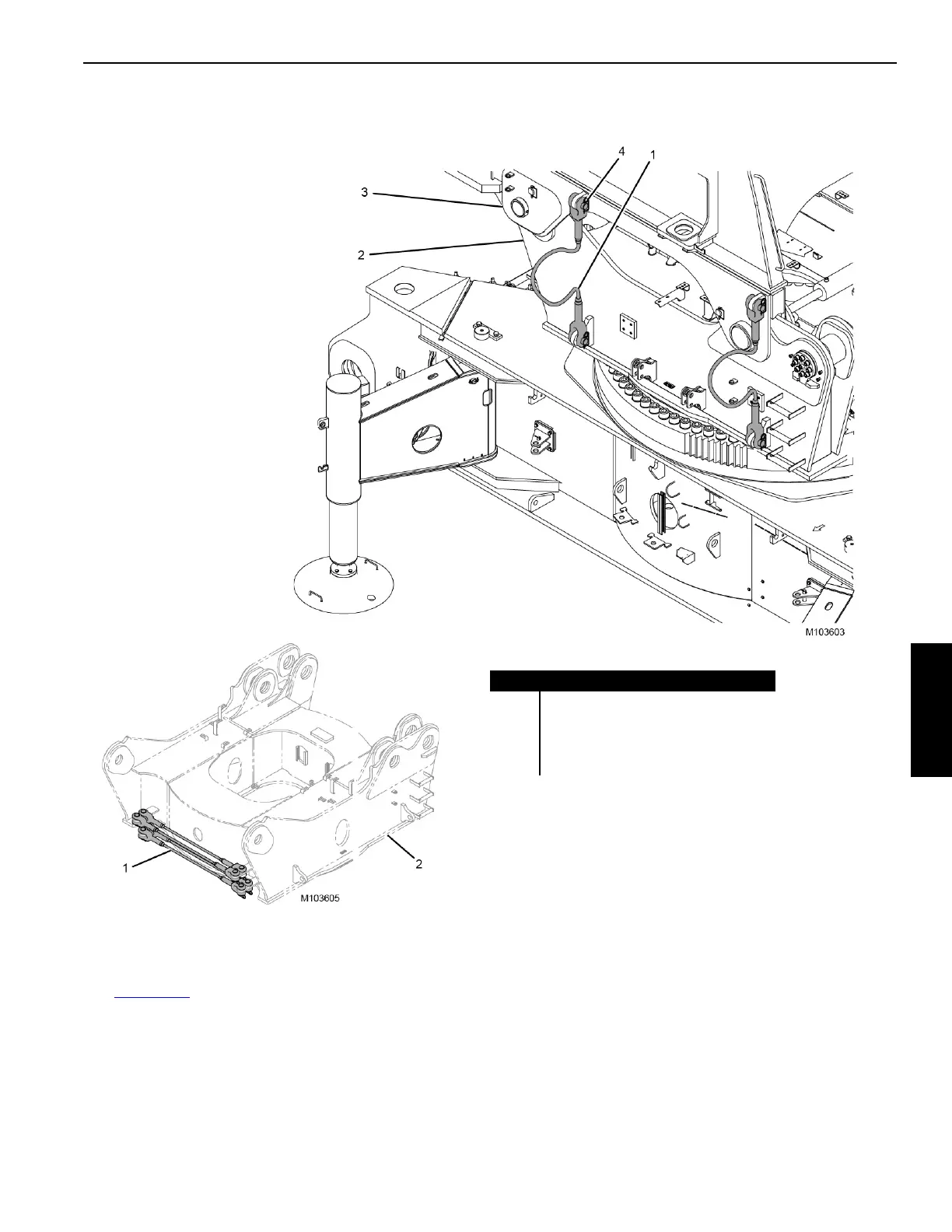

FIGURE 4-48
Item Description
1 Alignment Pendant (qty 4)
2 Adapter Frame
3 Rotating Bed
4 Safety Pin and Pin (qty 8)
WORKING POSITION
STORED POSITION
