SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-64
Published 08-12-19, Control # 224-13_v2

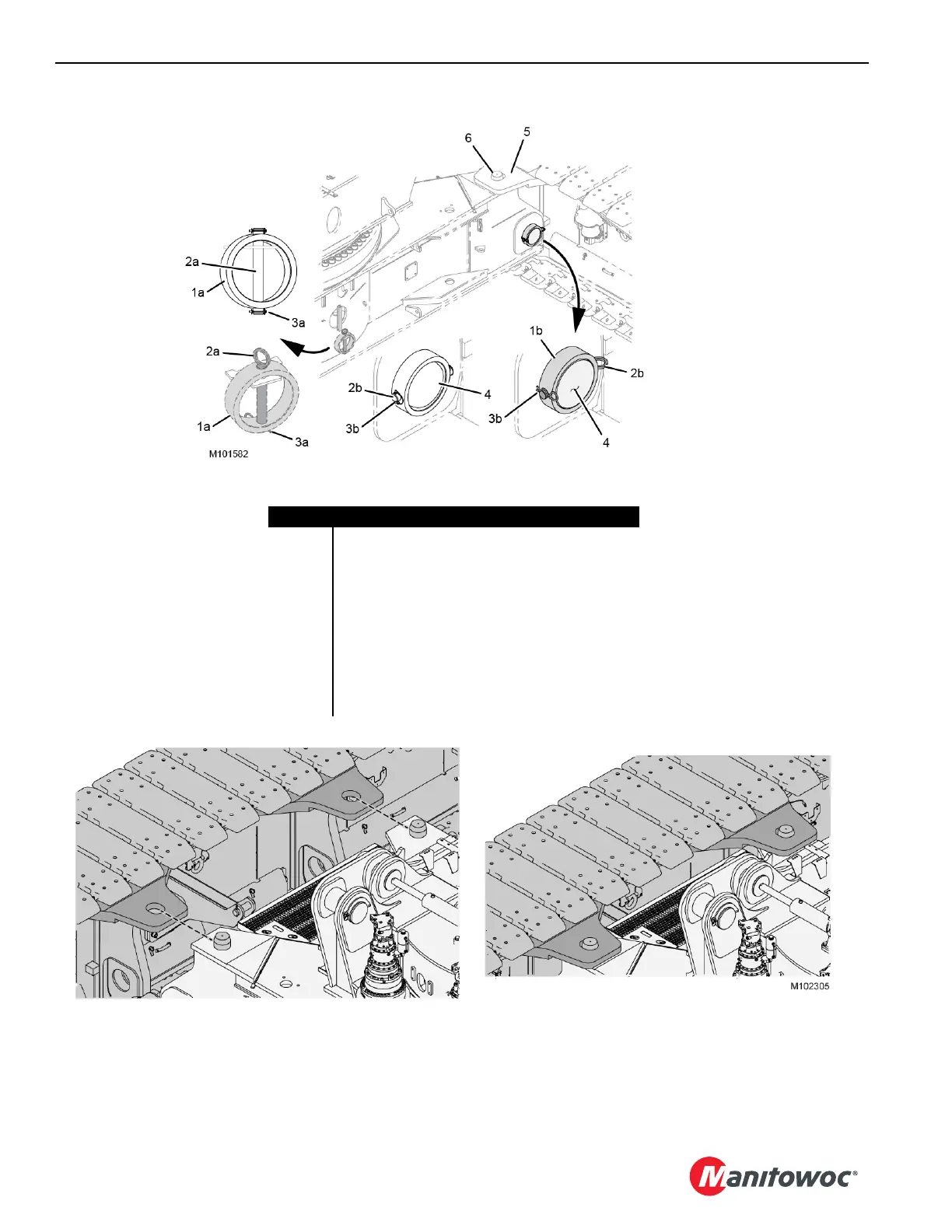

FIGURE 4-52
Item Description
1a Collar (stored position) (qty 2)
1b Collar (working position) (qty 2)
2a Retaining Pin (stored position) (qty 2)
2b Retaining Pin (working position) (qty 2)
3a Hair-Pin Cotter or Safety Pin (stored position)
3b Hair-Pin Cotter or Safety Pin (working position)
4Crawler Pin
5 Crawler Hook (qty 2)
6 Carbody Pin (qty 2)
CRAWLER HOOKS/CARBODY PINS DISENGAGED
CRAWLER HOOKS/CARBODY PINS ENGAGED
