Manitowoc Published 08-12-19, Control # 224-13_v2 4-85
MLC650 OPERATOR MANUAL SET-UP AND INSTALLATION
around the counterweight tray lug (6). The
counterweight chain assemblies (2) are designed to
minimize counterweight movement during travel and
operation permitted by Manitowoc’s operating
instructions.
12. Connect the counterweight chain assemblies to the
turnbuckle hooks (7).
13. Tighten the turnbuckles until the counterweight chain
assemblies around the lugs are snug.
NOTE: The ratchet on the turnbuckle must be flipped in
one direction to tighten the turnbuckle and in the
opposite direction to loosen the turnbuckle.

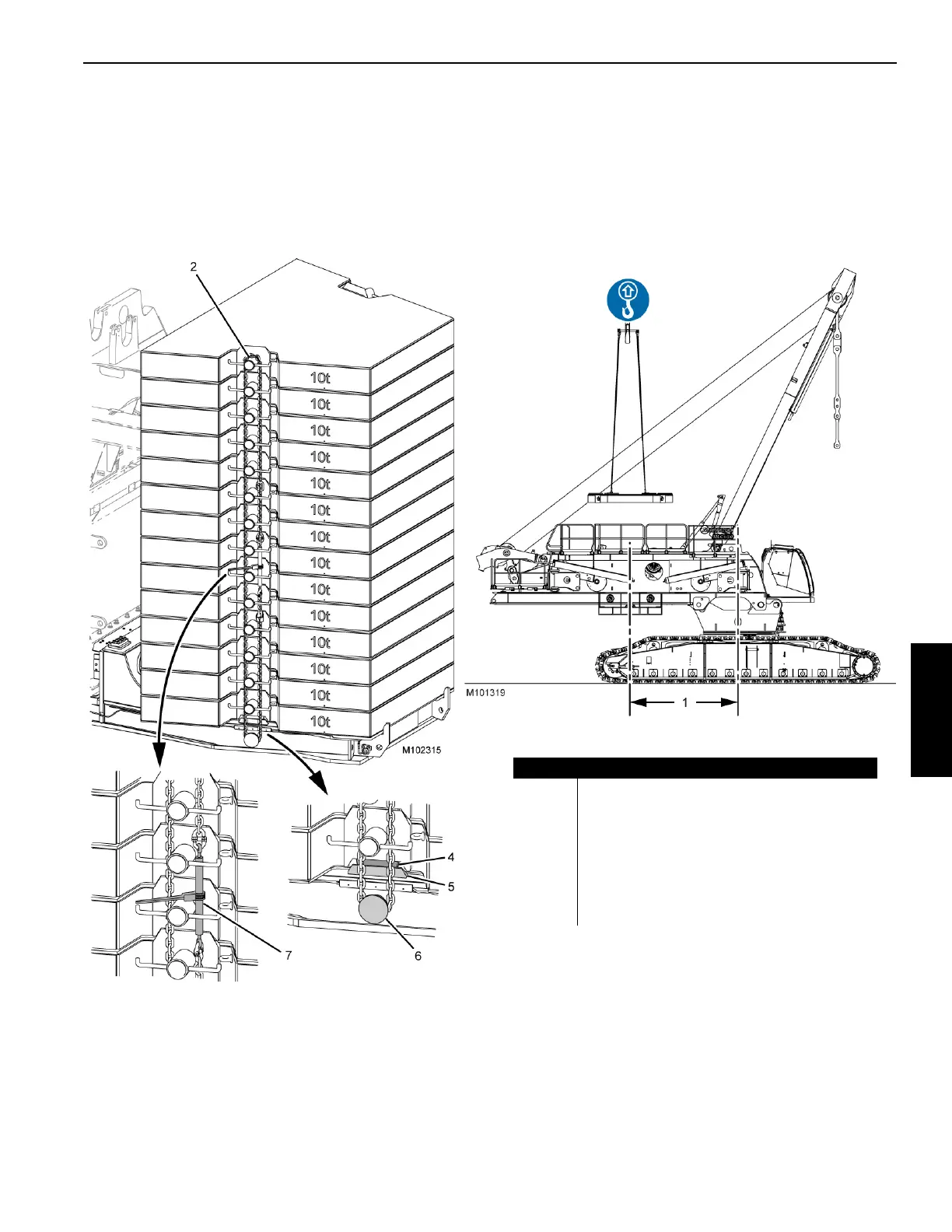

FIGURE 4-67 continued
Item Description
1 Tray at the minimum working position
2 Counterweight Chain Assembly
3 Lifting Sling
4 Counterweight Box Alignment Lug
5 Counterweight Tray Alignment Lug
6 Counterweight Tray Lug
7 Turnbuckle
(2)
To Next Page
