SET-UP AND INSTALLATION MLC650 OPERATOR MANUAL
4-140
Published 08-12-19, Control # 224-13_v2

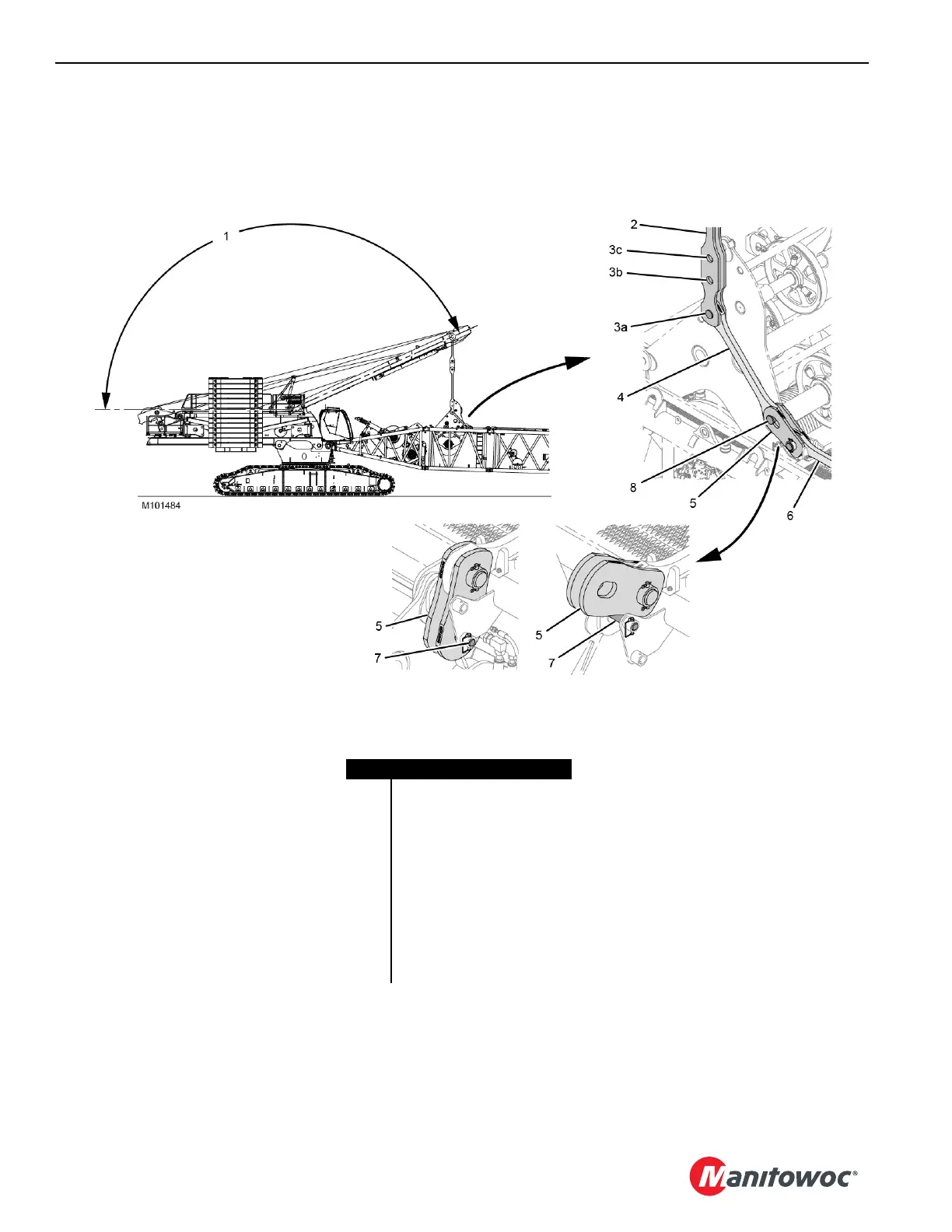

FIGURE 4-107
View A
View B
View D
View C
Item Description
1
Live
Mast Angle (maximum)
2 Live Mast Link
3a Hole A
3b Hole B
3c Hole C
4Strap
5Link
6Strap
7 Locking Pin and Pin
8 Retaining Pin
