39 HD96-24-CC-TP User Manual
Dynamics

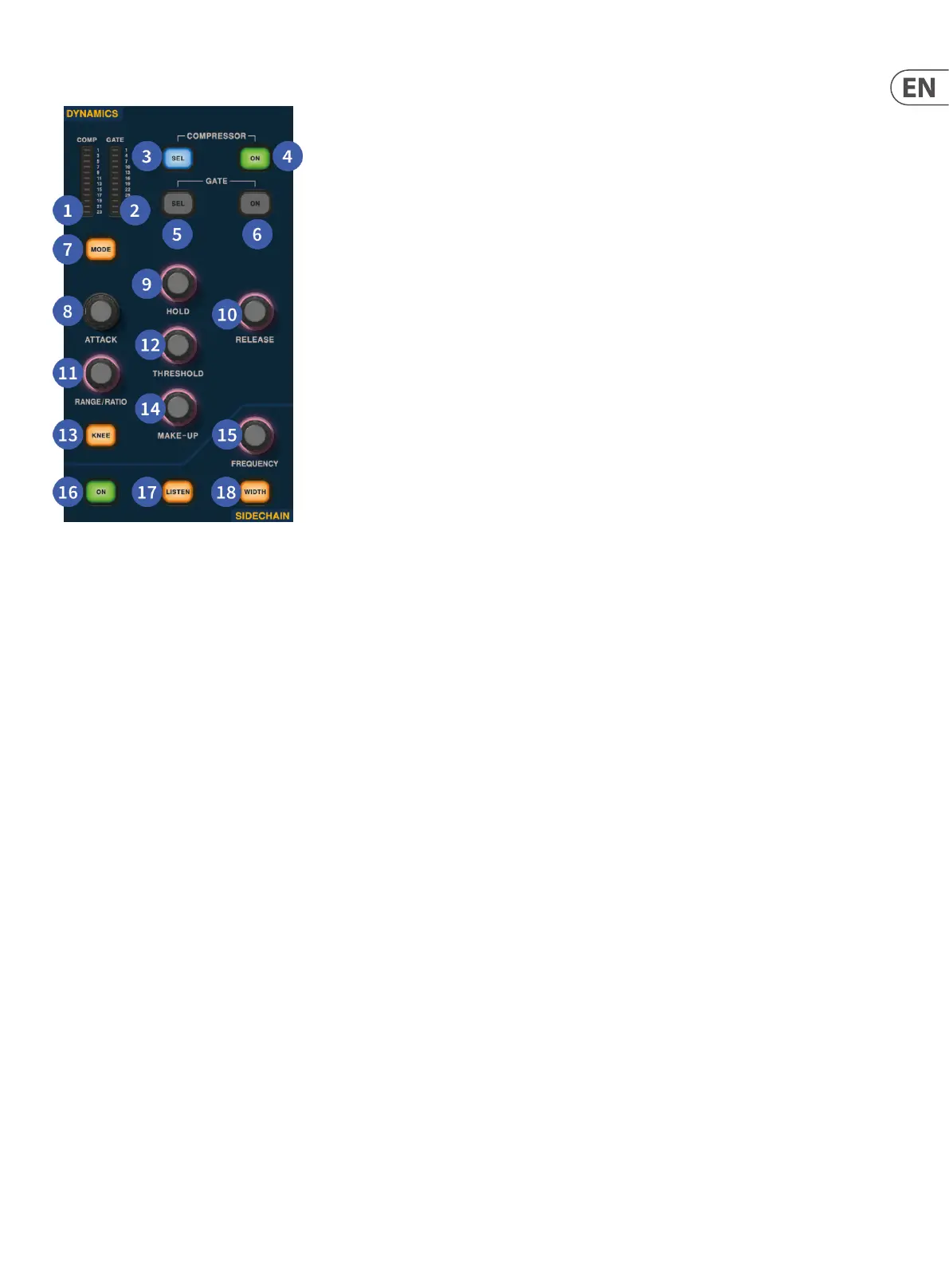

1. Compressor GR Meter – Compressor (Comp) Gain Reduction Meter (Range -1 dB to – 23 dB).
2. GATE GA Meter – Gate Gain Attenuator Meter Range (-1 dB to -34 dB).
3. SEL Comp – Selects the compressor setting for the selected channel.
4. ON – Turns the compressor on for the selected channel.
5. SEL Gate – Selects the gate setting for the selected channel.
6. ON – Turns the gate on for the selected channel.
7. Mode – Selects the mode of the compressor (Corrective, Adaptive, Creative and Vintage) or gate (Gate or Ducker).
8. Attack – Controls the attack settings of the gate or comp.
9. Hold – Controls the hold value of the gate. Hold is the amount of time the gate is open until the release part of the gate starts.
10. Release – Controls the release characteristic of the gate and comp.
11. Range/Ratio – Range relates to the gate and controls the amount of signal allowed to pass when the gate is closed. Ratio relates to the comp. With a ratio
setting of 3:1 for every 1 dB above the threshold point the signal will be turned down or compressed by 3 dB.
12. Threshold – Adjust the point at which either the gate opens, or compression starts to take place.
13. Knee – Changes the compression knee setting (Hard, Medium or Soft).
14. Make-Up – Adds gain to the compressors output. This allows you to balance the levels of the compressor when on and o by increasing the make-up gain to
match the amount of gain reduction taking place. (Range 0 dB to 24 dB).
15. Sidechain Frequency – Set the frequency that the sidechain of the gate or comp listens to in order to give tighter control of a certain range of frequencies.
16. On – Turns the sidechain of the gate or comp on/o.
17. Listen – Sends the selected sidechain frequency to the solo bus for monitoring and to give accurate adjustment.
18. Width – Changes the width of the sidechain frequency for the gate and comp (0.1 Oct, 0.3 Oct, 1 Oct and 2 Oct).
