41 HD96-24-CC-TP User Manual

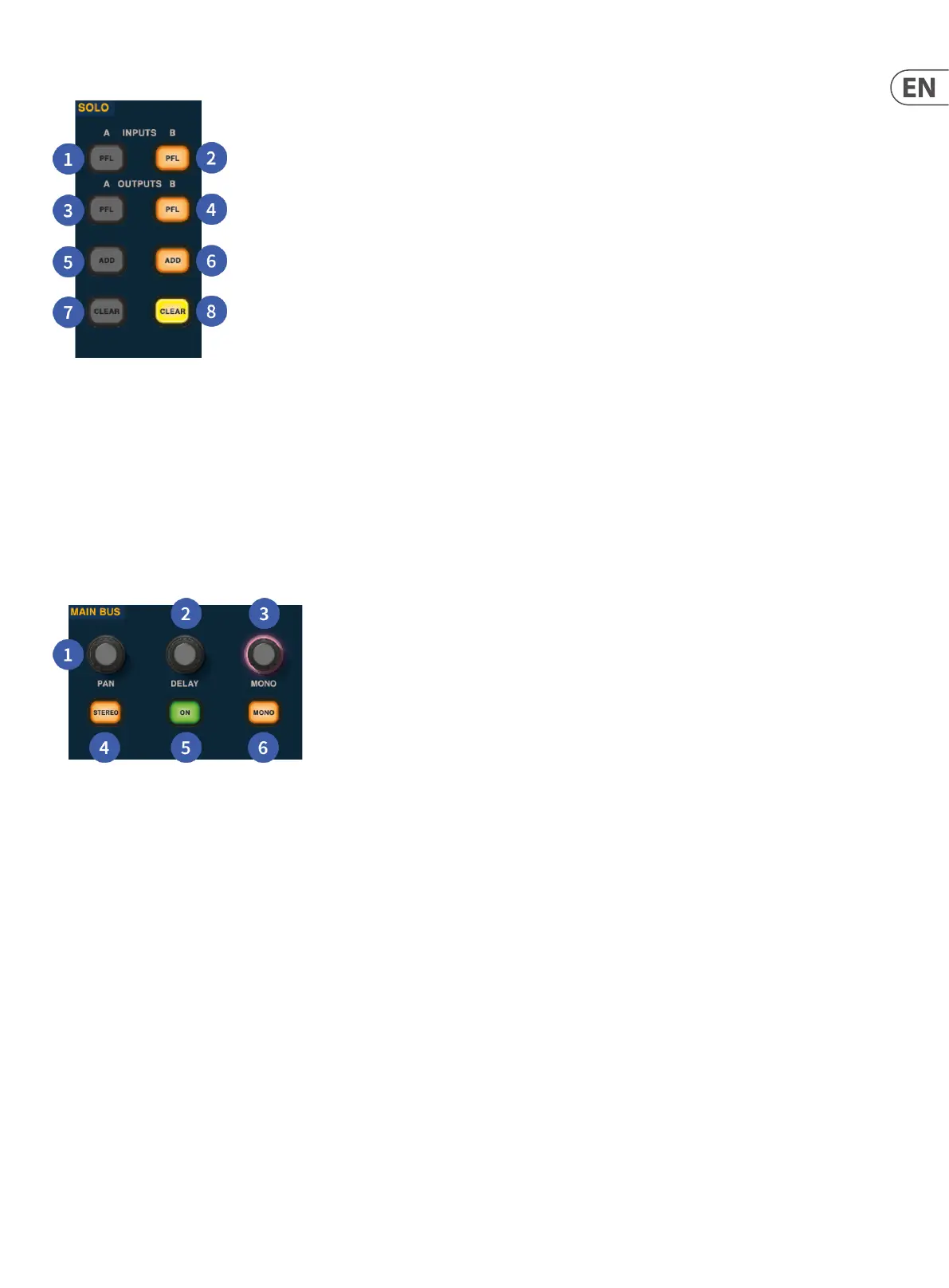

Solo
1. A PFL – Any input routed to the monitor A bus is pre fader.
2. B PFL – Any input routed to the monitor B bus is pre fader.
3. A PFL – Any output routed to the monitor A bus is pre fader.
4. B PFL – Any output routed to the monitor B bus is pre fader.
5. Add (A) – Additive mode allows more than one input channel to be listened at once on the A solo bus.
6. Add (B) – Additive mode allows more than one input channel to be listened at once on the B solo bus.
7. Clear (A) – Clears any current solo A selections.
8. Clear (B) – Clears any current solo B selections.
Main Bus
1. Pan – Controls the position of the signal in the stereo eld.
2. Delay – Adjusts the delay time for the selected channel.
3. Mono – Adjust send level to the Mono Bus from the selected channel.
4. Stereo – Sends the selected channel to the Stereo Bus.
5. On – Turns the selected channel’s delay time on.
6. Mono – Sends the selected channel to the Mono Bus.
