Midas PRO2 User Manual

Surround panning 89
PRO2 Live Audio System
Owner’s Manual

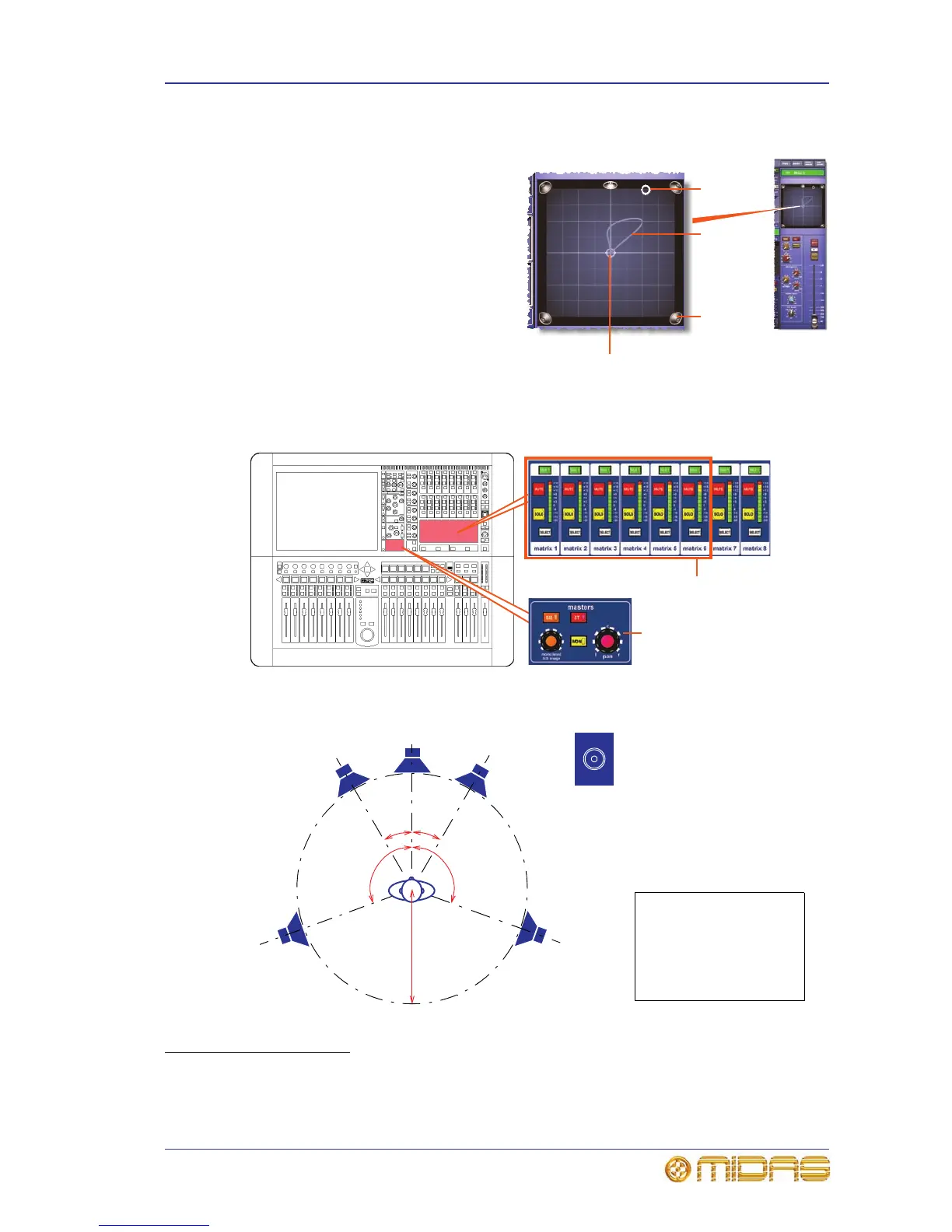

Surround panning
In addition to stereo and left-centre-
right (LCR) panning, PRO2 has three
surround panning modes: quad; left,
centre, right and surround (LCRS); and
5.1 surround. To help you visualise the
surround panning envelope, the
masters detail area of the GUI channel
strip has a spatial diagram (shown
right) that updates when you operate
the panning controls.
The 5.1 panning mode uses six matrix
channels, while quad mode uses four
(left and right on both the front and
surround). Although the LCRS mode
uses five channels (front left and right, centre and surround left and right), both
surround channels are the same. (In an LCRS surround panning arrangement, you can
have a single surround speaker positioned directly behind the listener.)
The sound image is controlled via the masters detail area. The following below shows
the recommended
1
5.1 surround system configuration.
Figure 8: 5.1 surround panning loudspeaker arrangement
1. Reference - ITU-R BS.775.1, 1994. Multichannel stereophonic sound system with and without
accompanying picture. International Telecommunications Union.
LCR
Position
cursor
Speaker
Sound
RR
Listener’s position
RL
The six matrix channels
used for surround
panning
masters detail area
30°30°
110° ±10°
110° ±10°
Listening
distance
L
C
R
LFE
Ls
Rs
Key:
C = centre
L = left
Ls = left surround
R = right
Rs = right surround
LFE = low frequency effects
(usually a subwoofer)

Midas PRO2 Specifications

General

Sample Rate	96 kHz
Talkback	Yes
MIDI I/O	Yes
Computer Connectivity	USB, Ethernet
Processing	40-bit floating point
Recallable Preamps	Yes
Channels	64
Matrix	8 matrix buses
Display	15" TFT display
Connectivity	Ethernet, MIDI
Type	Digital
EQ Bands	4-band parametric EQ
Inputs - Mic Preamps	8 XLR
Outputs - Main	8 XLR
Effects	Reverb, Delay, Modulation, etc.
Dynamic Processing	Gate, Compressor, Limiter
Control Surface	Motorized faders, touchscreen
Power Supply	Internal
