Midas PRO2 User Manual

272 Chapter 31: Output Channels
PRO2 Live Audio System
Owner’s Manual

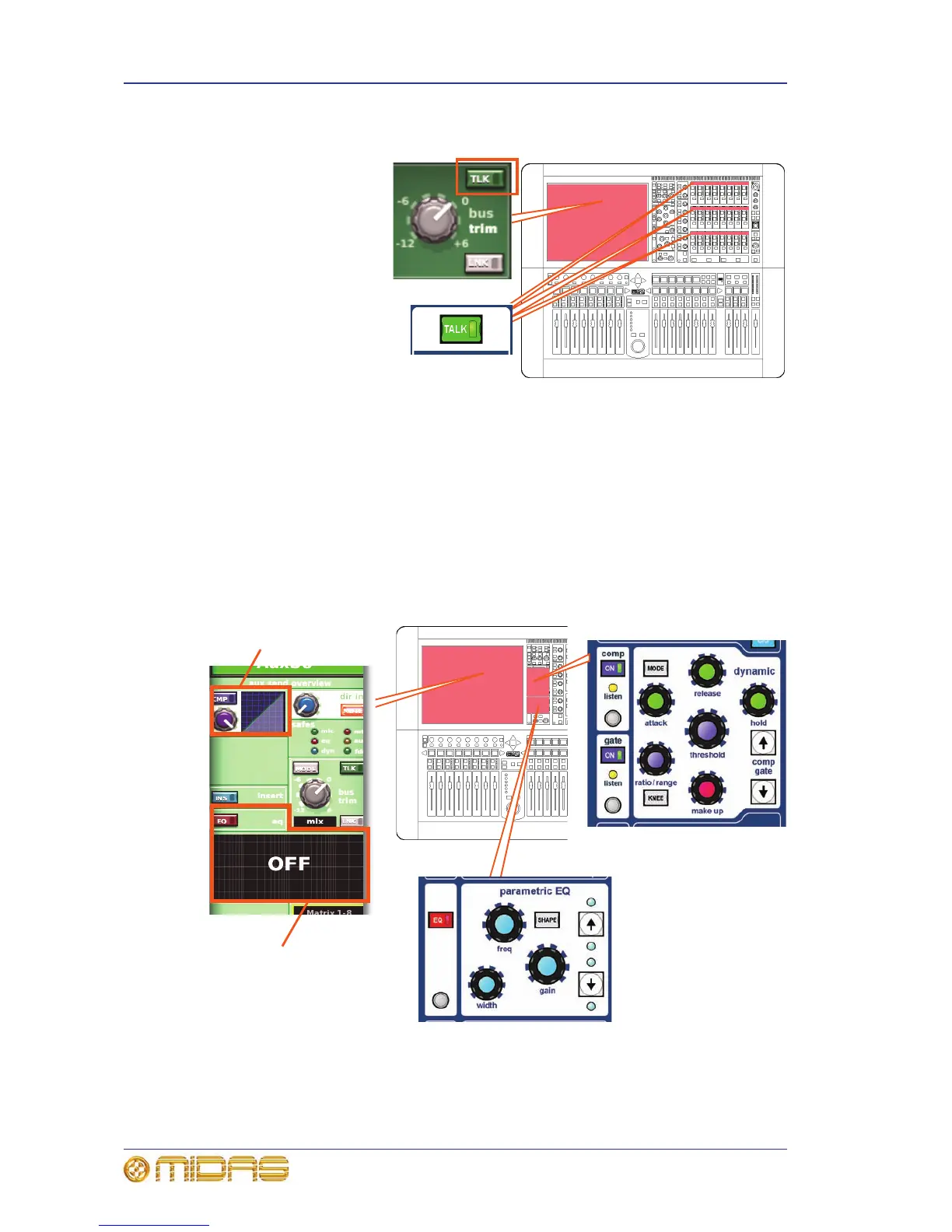

Talk
There is a talk switch in
each output fast strip and
also on the output
‘overview’ displays of the
GUI channel strip, which
are labelled “TALK” and
“TLK”, respectively.
If the TALK/[TLK]
(internal) switch in the
talk mic section is active,
the talk buttons will
illuminate to prompt the
operator to select a bus
that the talk signals
should be routed to. These are also used to set up a talk group after pressing one of
the talk/osc routing panel buttons.
Dynamics and EQ
The control surface has a combined dynamics and EQ section that contains DYN and
EQ on/off buttons, and a listen LED (yellow) that illuminates when listen is active in
the output processing area to show when a channel has its dynamic side chain soloed.
In the GUI channel strip overview display the aux, matrix and master outputs each
have a compressor section and an EQ section (both are highlighted in the diagram
below). Clicking within either of these sections will open their respective processing
areas, which are described in the following subsections.
Compressor section
EQ section
D zone
E zone

Midas PRO2 Specifications

General

Sample Rate	96 kHz
Talkback	Yes
MIDI I/O	Yes
Computer Connectivity	USB, Ethernet
Processing	40-bit floating point
Recallable Preamps	Yes
Channels	64
Matrix	8 matrix buses
Display	15" TFT display
Connectivity	Ethernet, MIDI
Type	Digital
EQ Bands	4-band parametric EQ
Inputs - Mic Preamps	8 XLR
Outputs - Main	8 XLR
Effects	Reverb, Delay, Modulation, etc.
Dynamic Processing	Gate, Compressor, Limiter
Control Surface	Motorized faders, touchscreen
Power Supply	Internal
