VCA unfolding 211
PRO2 Live Audio System
Owner’s Manual
• Aux sends 1-16 and matrices 1-8 (PRO2 only)
• Aux Sends 1-16 (PRO2c only)
• The sixth POPulation group is pre-populated with:
• Matrices 1-8 (PRO2c only)
• FX 1-3 are pre-loaded with DN780 Reverb effects
• FX 4 is pre-loaded with a Pitch Shifter effect
• FX 1-4 stereo outputs are patched to aux returns 1-8
Normal (FOH) mode
In addition to the common normal mode settings (above), the following settings are
applied in Normal (FOH) mode.
• Matrix outputs 1-4 are configured as mono sends and patched to FX 1-4
• Aux send outputs 1-8 are patched to DL251 outputs 1-8
• Matrix outputs 1-5 are patched to DL251 outputs 9-13
• Master L, R and C outputs are patched to DL251 outputs 14-16
• All input and aux return channels are routed to the stereo masters
• Aux send 9-16 are configured as stereo groups and routed to the stereo masters
Normal (Monitors) mode
In addition to the common normal mode settings (above), the following settings are
applied in Normal (Monitors) mode.
• Aux sends 1-16 are patched to DL251 outputs 1-16
• All input and aux return channels are routed to all aux sends with pre-fade set to ON
and send level set to OFF

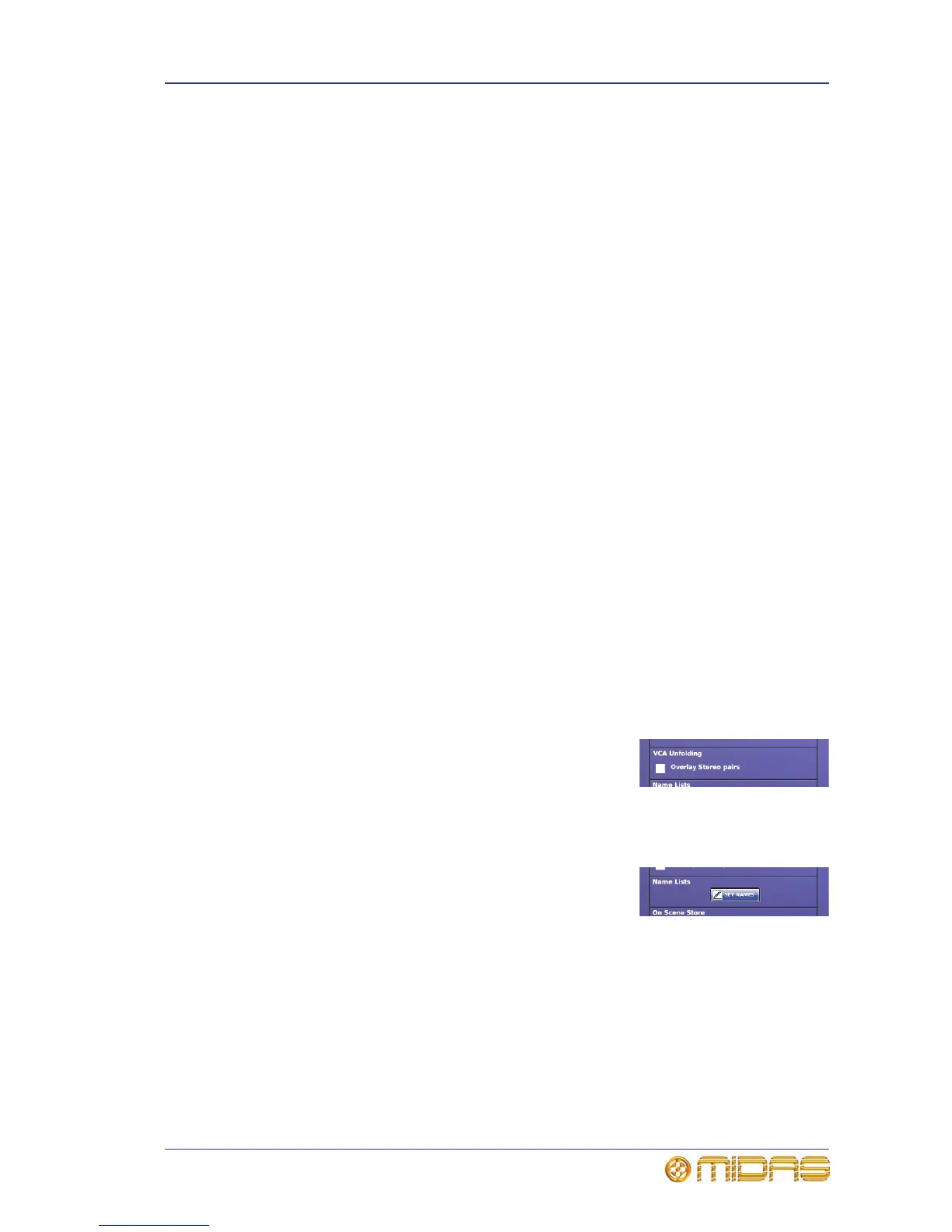

VCA unfolding
The VCA Unfolding section of the User tab lets you select
Overlay Stereo Pairs to unfold only left channels of
channel pairs when a VCA group is selected. Use the
navigation buttons to display any desired right channel.
Changing the default input/output names
The Name Lists section of the User tab lets you change
the names that appear in the lists on the Input Sheet and
Output Sheet. These lists provide you with a number of
default names from which you can choose when naming
your inputs and outputs in the GUI menu.
>> To change the set names in the Input/Output Sheets
1 At the GUI, choose homePreferencesGeneral.
2 In the Names Lists section of User Interface Preferences, click SET NAMES.
