Midas PRO2 User Manual

Output processing 73
PRO2 Live Audio System
Owner’s Manual

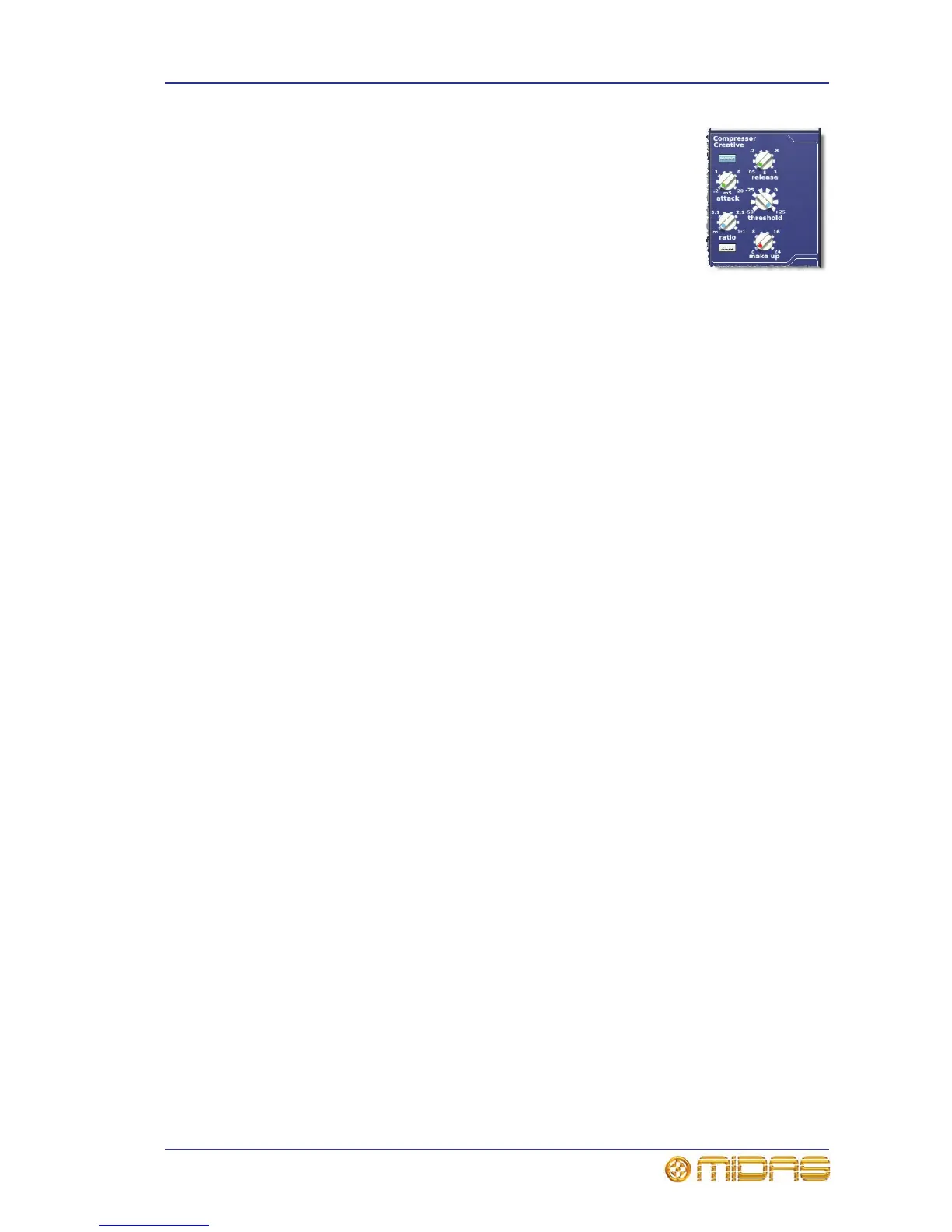

6 Press MODE to try the different compressor types
(Corrective, Adaptive, Creative and Vintage). For
example, Creative (shown right).
>> To set up a gate
1 Select the desired input channel.
2 In the channel strip, press the quick access button in the gate section (see
Figure 5 “Compressor and gate channel strips” on page 72) to select the input
channel’s compressor detail area.
3 Press ON in the gate section to switch the gate in.
4 Operate the attack, ratio/range (range), release, threshold and hold control
knobs (make up has no effect) to apply processing. See “Gate” on page 254.
Output processing
All outputs — except for the returns — have a six-band PEQ with shelving modes on
bands 1, 2 and 6, and have the option of using a GEQ (accessed via a GEQ button in
GUI channel strip). The returns have a similar EQ to that of the inputs channels.
The outputs (except returns) have five compressor modes, which include all of the ones
on the input channels, but with the addition of a shimmer mode. The returns have the
same compressor modes as those of the input channels.

Midas PRO2 Specifications

General

Sample Rate	96 kHz
Talkback	Yes
MIDI I/O	Yes
Computer Connectivity	USB, Ethernet
Processing	40-bit floating point
Recallable Preamps	Yes
Channels	64
Matrix	8 matrix buses
Display	15" TFT display
Connectivity	Ethernet, MIDI
Type	Digital
EQ Bands	4-band parametric EQ
Inputs - Mic Preamps	8 XLR
Outputs - Main	8 XLR
Effects	Reverb, Delay, Modulation, etc.
Dynamic Processing	Gate, Compressor, Limiter
Control Surface	Motorized faders, touchscreen
Power Supply	Internal
