Configuring the number of GEQs (and effects) 125
PRO2 Live Audio System
Owner’s Manual

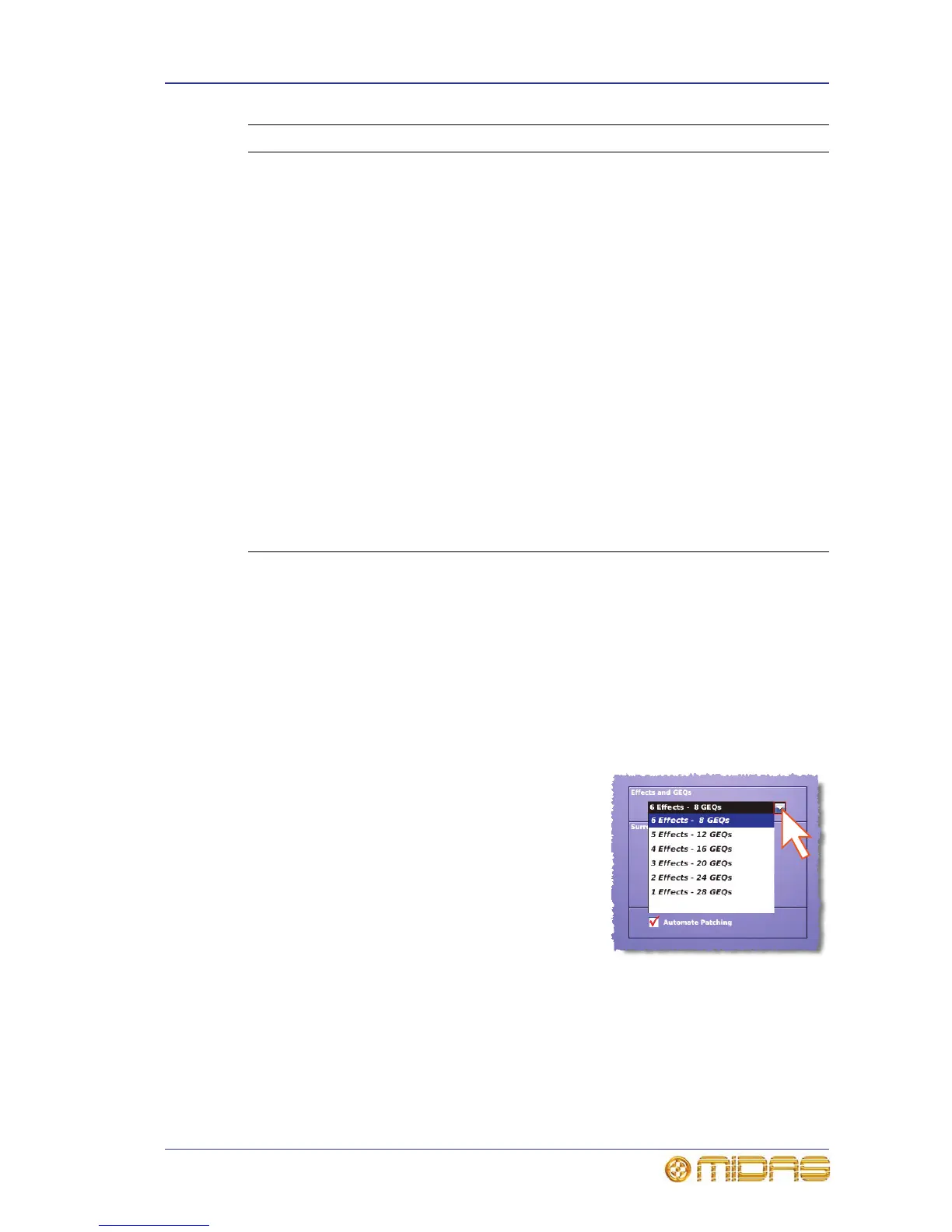

Configuring the number of GEQs (and effects)
GEQ (and effects) configuration is a GUI-only operation. We recommend that you
configure the number of GEQs and effects before you start using the PRO2 Control
Centre.
>> To configure the PRO2 Control Centre with the number of GEQs and effects
1 At the GUI, choose homePreferencesGeneral.
2 Click the Show tab to open the Preferences Show window.
3 In the Effects and GEQs section, open the
drop-down list (as shown right).
4 Click on your desired option to select it. For
example, click the 3 Effects - 20 GEQs option
to have three internal effects and 28 GEQs.
5 EQ button Selects the EQ. The adjacent green IN LED shows
the EQ is on (illuminated) or is being bypassed
(extinguished).
6 10-segment meter Shows the incoming signal level and is pre-EQ (but
post-gain control). The LED functions are: two red
LEDs illuminate when signal has exceeded +20dBu;
two yellow LEDs illuminate when signal level exceeds
0dB (range is between 0dB to +20dB); and the top
five green LEDs encompass the signal level range of
between 0dB and -40dB, while the bottom one
illuminates when the signal has exceeded -40dB.
7 Q button Selects proportional Q (PROP.) or constant Q (CON.)
modes.
8 Notch filter control
knob
Adjusts the position of the notch filter within the
range 200Hz to 20kHz.
9 IN button Switches the respective high pass/low pass/notch
filter in/out.
10 Notch filter control
knob
Adjusts the position of the notch filter within the
range 20Hz to 2kHz.
11 Fader group ID
number
See “Controlling a GEQ via the I zone” on page 194.
