Midas PRO2 User Manual

Control surface 235
PRO2 Live Audio System
Owner’s Manual
Control surface
The PRO2 has a rear connector panel that caters for the connection of mains power
leads, 19” rack unit(s), USB memory keys, keyboards, headphones, talk mics,
communications, external monitor, AES3 synchronisation, diagnostics (for service
personnel only), lamp and word clocks (75R).
The control surface houses a USB connector for uploading/downloading show files and
updating the system software, and a connector for a talk mic.

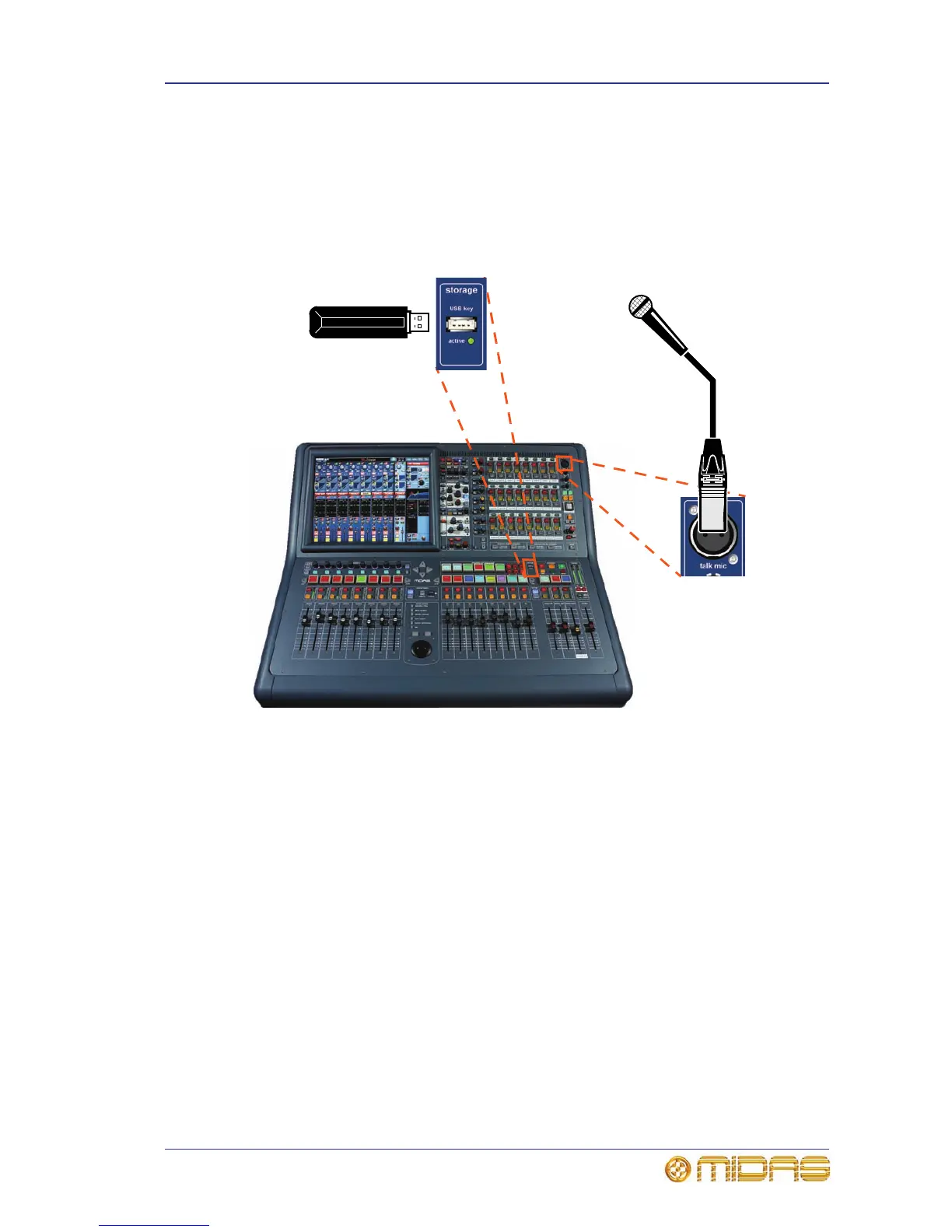

Talk mic connector and storage USB connector on the control surface
For more information, see Chapter 29 "Panel Connections" on page 227.
There are two similar connector panels at the front of the PRO2 Control Centre, which
are situated at either end under the armrest as shown in the following diagram.
USB memory stick
talk mic
Female input
XLR

Midas PRO2 Specifications

General

Sample Rate	96 kHz
Talkback	Yes
MIDI I/O	Yes
Computer Connectivity	USB, Ethernet
Processing	40-bit floating point
Recallable Preamps	Yes
Channels	64
Matrix	8 matrix buses
Display	15" TFT display
Connectivity	Ethernet, MIDI
Type	Digital
EQ Bands	4-band parametric EQ
Inputs - Mic Preamps	8 XLR
Outputs - Main	8 XLR
Effects	Reverb, Delay, Modulation, etc.
Dynamic Processing	Gate, Compressor, Limiter
Control Surface	Motorized faders, touchscreen
Power Supply	Internal
