PRO2 Live Audio System
Owner’s Manual
Chapter 11: Panning
The PRO2 has two main types of panning mode, default and surround. The default
mode comprises stereo and LCR panning formats, and only uses the channels for the
front loudspeakers, while the surround mode includes channels for the rear surround
loudspeakers. For more information, see “Surround panning” on page 89.
The following table shows the panning formats available on the PRO2.
Table 3: Panning formats
Key: L = left; R = right; C = centre; Lr = left rear; Rr = right rear; Ls = left surround;
Rs = right surround; LFE = low frequency effects (usually handled by a subwoofer)

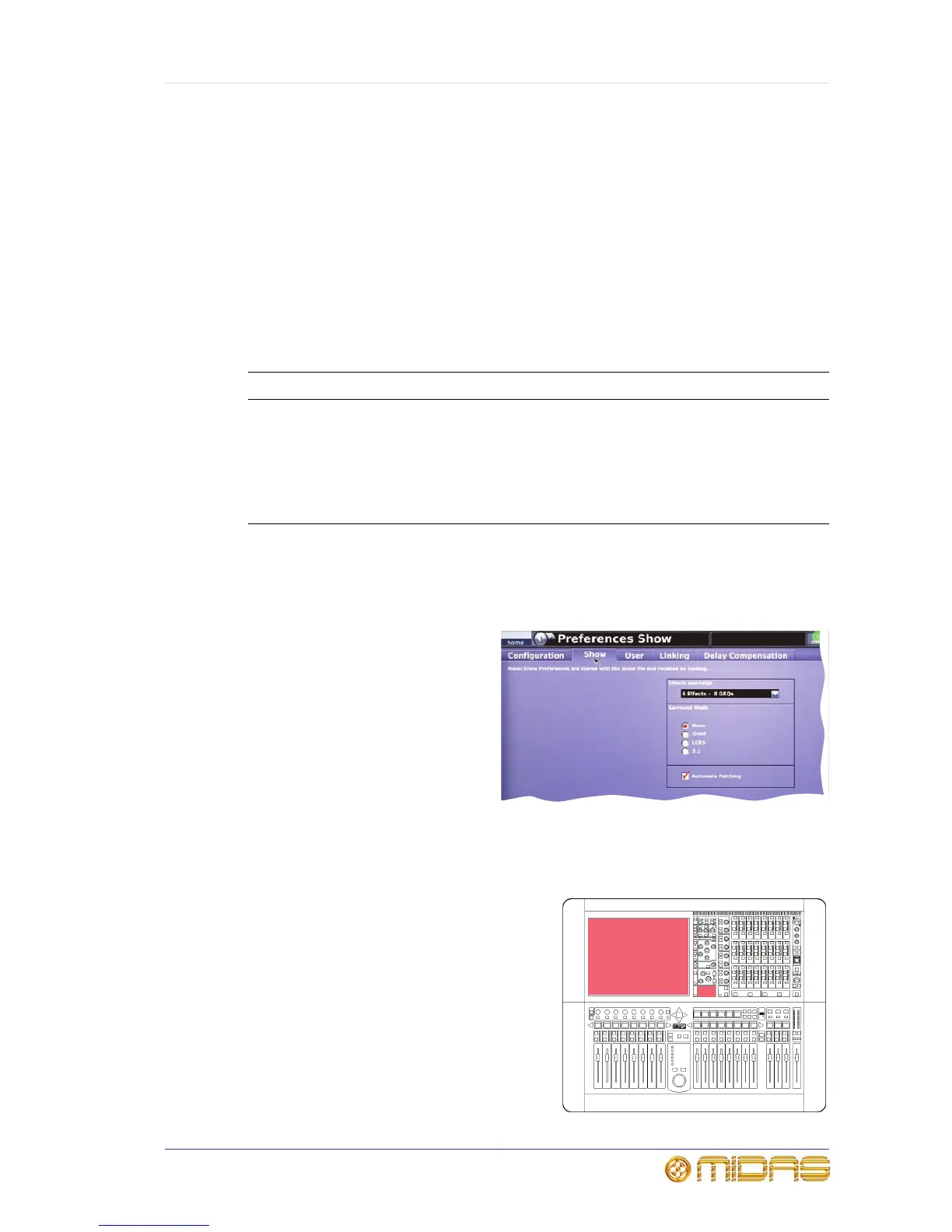

>> To select the panning mode
At the GUI, choose
home
PreferencesGeneral.
Then click the Show tab to open
the Preferences Show screen.
Click the desired panning mode in
the Surround Mode section.
Note: The None option is the
default mode for stereo and LCR
(SIS™) (see Table 3 above).
Stereo panning
The control surface controls for stereo
panning are located in the masters section
of the channel detail area. The pan control
in each masters section may be switched for
either conventional or spatial imaging system
(SIS™) stereo operation via the ST or SIS
switches, respectively.
Panning mode No. of channels Format Channel types
Default 2 Stereo L, R
3 LCR (SIS™) L, C, R
Surround 4 Quad L, R, Lr, Rr
5 LCRS L, C, R, Ls, Rs
6 5.1 L, C, R, Ls, Rs, LFE
