Outputs on the GUI 267
PRO2 Live Audio System
Owner’s Manual
Outputs on the GUI
The outputs are represented on the GUI in a similar way to the inputs, although each
has a different coloured background. Each output channel has a GUI fast strip and
these are displayed in banks of eight (except for the three masters). When a channel is
selected, its overview is displayed in the GUI channel strip; selecting a non-control
area in an overview section will open its associated detail area. This will be detailed
more fully later on in this chapter.
All of the outputs are shown in on the Console Overview screen of the GUI and each
has its own meter. For more information, see “Input metering” on page 241.
GUI output fast strips

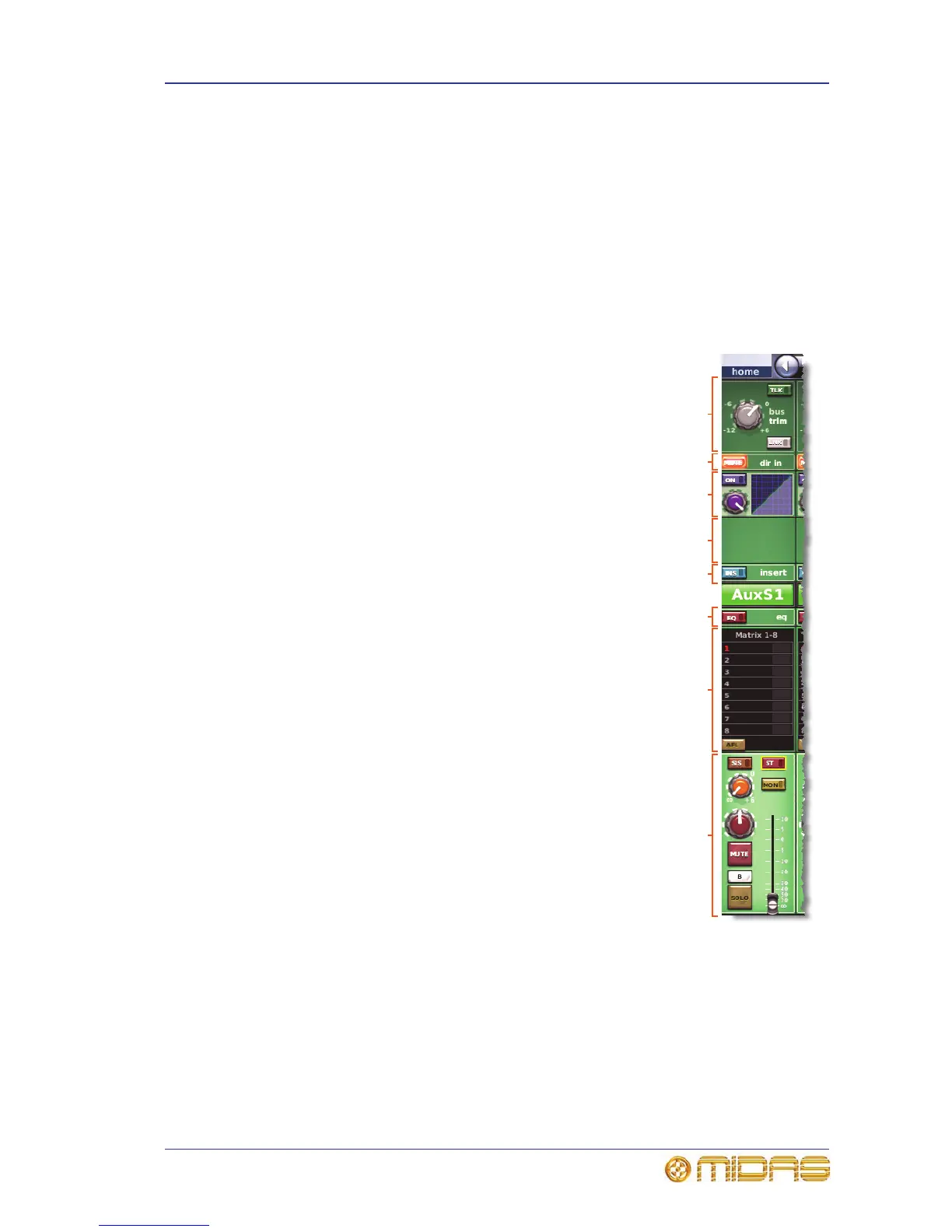

The output fast strips on the GUI (a typical example
is shown right) give an overview of their equivalent
versions on the control surface. These show the
gain, bus controls, pan control knob and fader.
Some detail areas are configuration dependent,
such as the bus sends (depends on surround
configuration) and console gain/digital trim.
GUI channel strips
When a channel is selected, its ‘overview’ appears in the channel strip. For diagrams
showing the ‘overview’ of each output and all their processing areas, see Figure 25,
Figure 26 and Figure 27.
As with the input channels, the output overview provides a limited set of controls and
status information (see “Inputs on the GUI” on page 239).
