Other connections
The section gives details of the other PRO2 Control Centre interconnections.
The diagnostics socket is for service personnel use only.

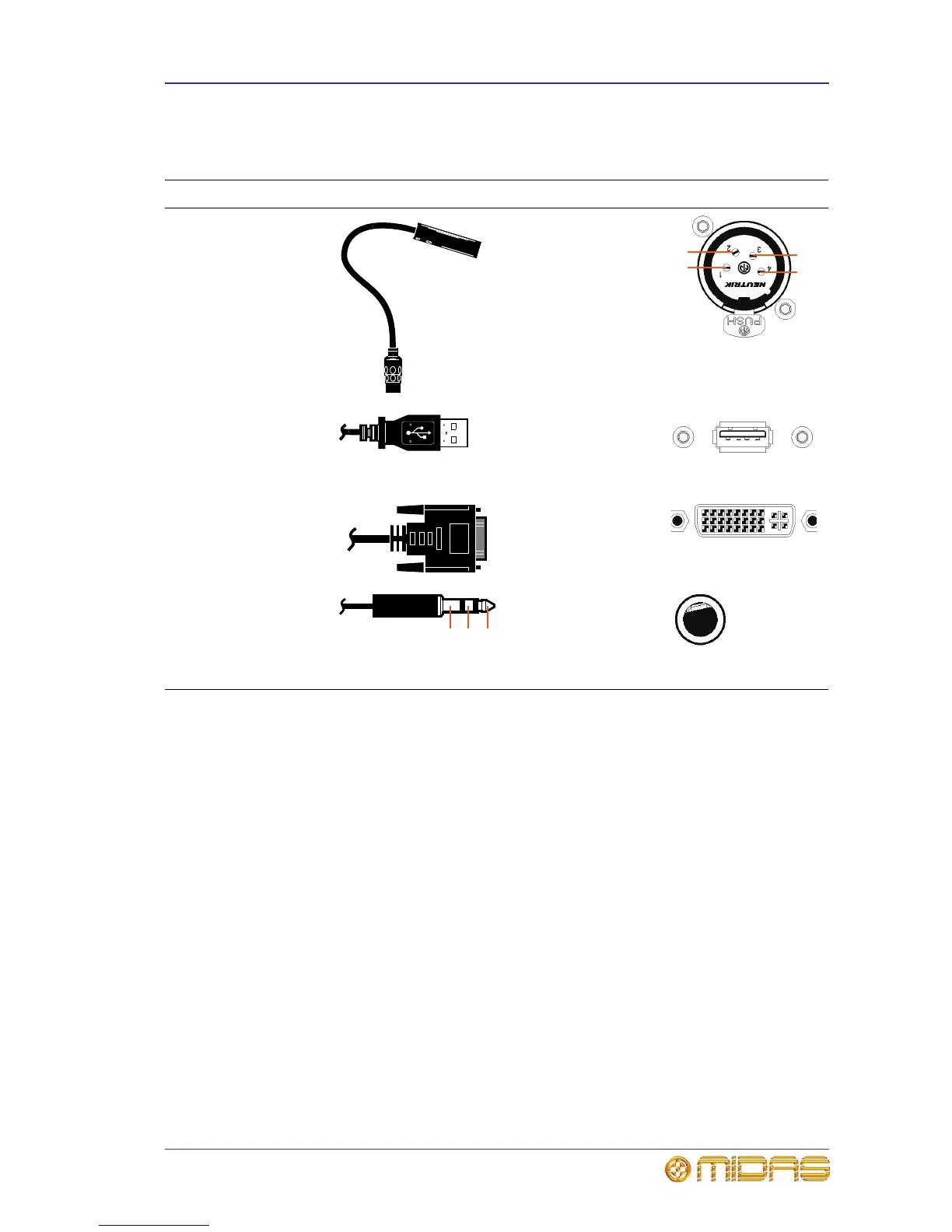

Description Example Pinouts Example of socket
4-pin, male XLR
chassis connector(s)
on the rear panel for
connecting 12V/5W
lamp(s)
1 = N/A
2 = N/A
3 = ground
4 = 12V
USB type A socket N/A
DVI screen output
socket for connecting
N/A
foot switch socket
for connecting a 1/4”
TRS Jack plug
1 (tip) = foot
switch 1
2 (ring) = foot
switch 2
3 (sleeve) =
ground
4
1
3
2
123

Midas PRO2 Specifications

General

Sample Rate	96 kHz
Talkback	Yes
MIDI I/O	Yes
Computer Connectivity	USB, Ethernet
Processing	40-bit floating point
Recallable Preamps	Yes
Channels	64
Matrix	8 matrix buses
Display	15" TFT display
Connectivity	Ethernet, MIDI
Type	Digital
EQ Bands	4-band parametric EQ
Inputs - Mic Preamps	8 XLR
Outputs - Main	8 XLR
Effects	Reverb, Delay, Modulation, etc.
Dynamic Processing	Gate, Compressor, Limiter
Control Surface	Motorized faders, touchscreen
Power Supply	Internal
