Midas PRO2 User Manual

Output metering 271
PRO2 Live Audio System
Owner’s Manual

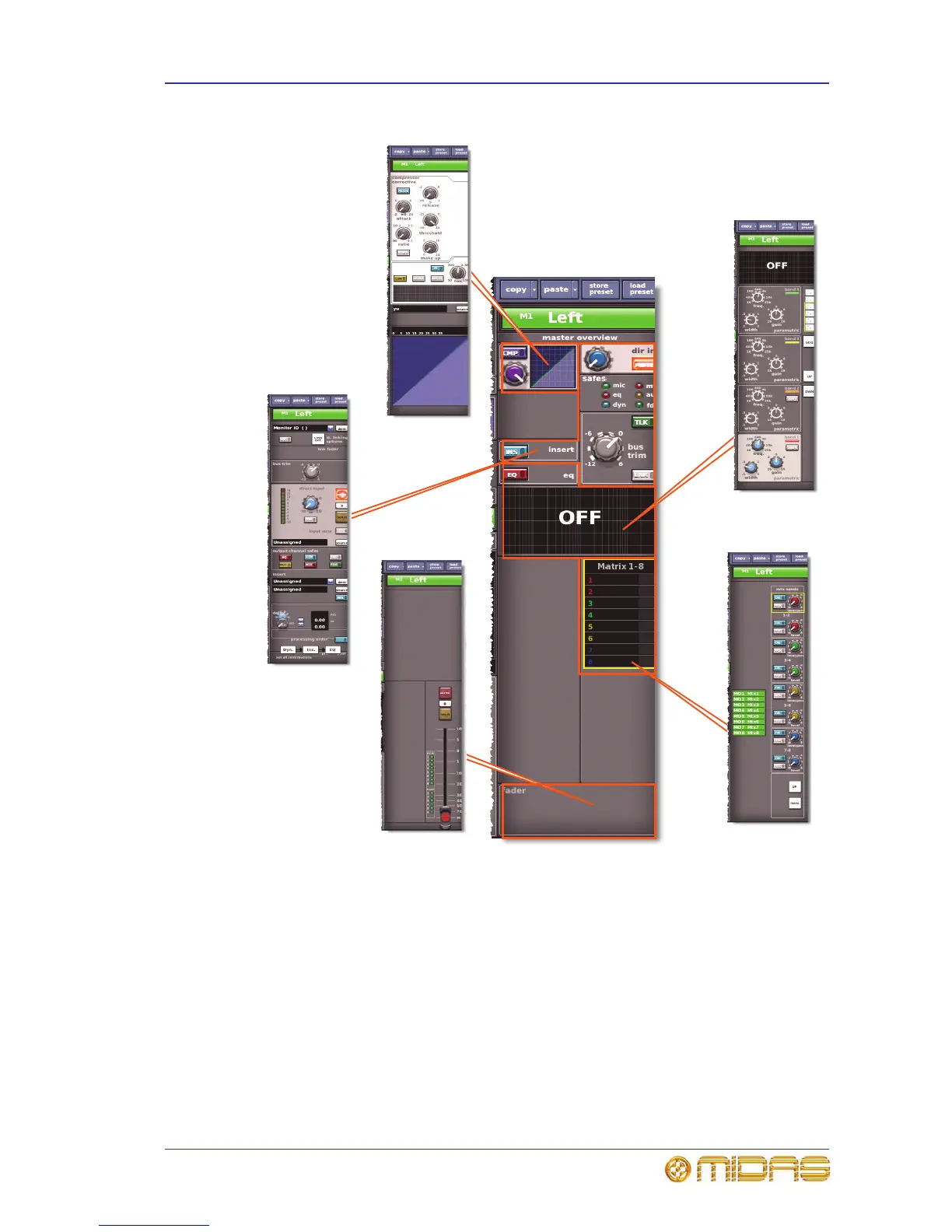

Figure 27: Processing areas available from the master overview display
Output metering
Each output fast strip on the control surface has an 11-segment LED meter and all of
the outputs are shown in on the Console Overview screen of the GUI, each with its
own meter. For more information, see “Input metering” on page 241.
EQ
Matrix buses
Insert and
Configuration
Fader
master overview
Compressor

Midas PRO2 Specifications

General

Sample Rate	96 kHz
Talkback	Yes
MIDI I/O	Yes
Computer Connectivity	USB, Ethernet
Processing	40-bit floating point
Recallable Preamps	Yes
Channels	64
Matrix	8 matrix buses
Display	15" TFT display
Connectivity	Ethernet, MIDI
Type	Digital
EQ Bands	4-band parametric EQ
Inputs - Mic Preamps	8 XLR
Outputs - Main	8 XLR
Effects	Reverb, Delay, Modulation, etc.
Dynamic Processing	Gate, Compressor, Limiter
Control Surface	Motorized faders, touchscreen
Power Supply	Internal
