Connections
The PRO2 has a rear connector panel that caters for the connection of mains power
leads, AES50 I/O unit(s), USB devices, keyboards, headphones, talk mics,
communications, external monitor, AES3 synchronisation, diagnostics (for service
personnel only), lamp and word clocks (75R).
The control surface houses a USB connector for uploading/downloading show files and
updating the system software, and a connector for a talk mic.

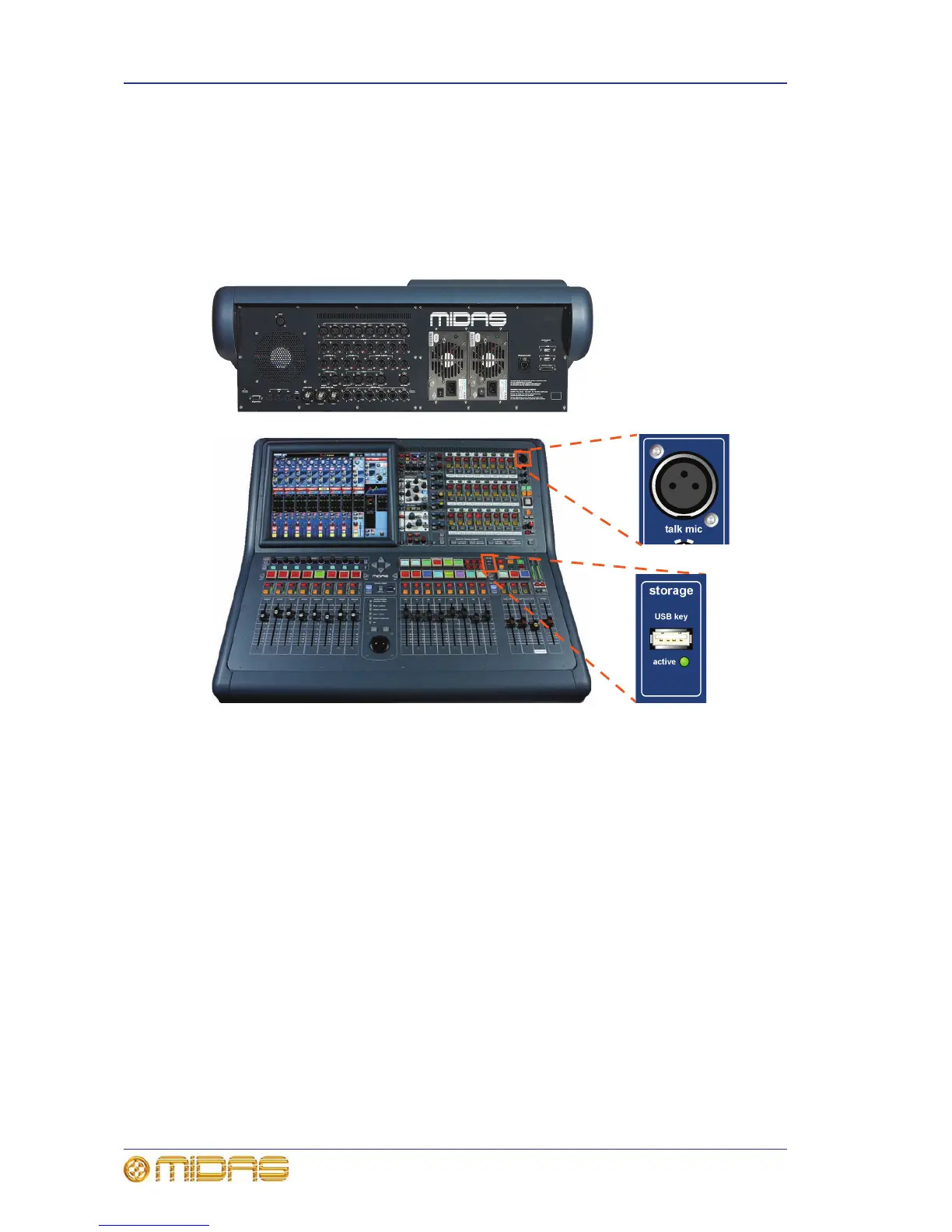

Rear panel connectors (top) and storage USB connector on the control surface
For more information, see Chapter 29 "Panel Connections" on page 227.
Keyboard
A QWERTY keyboard is supplied that is used mainly for inputting text, such as when
configuring a channel or using automation.
External interfaces
Various devices can be used with the PRO2, such as:
• External USB mouse: Instead of using the navigation zone to operate the GUI
screen, you can use an external USB mouse. This can be plugged into one of the
USB connectors on the rear panel of the PRO2. The USB mouse behaves in the
same way as any PC mouse.
• External USB keyboard: You can plug a USB keyboard into one of the USB
connectors on the rear panel of the PRO2.
• MIDI: Standard 5-pin connectors are housed in the rear panel of the PRO2 for use
as MIDI in, out and through ports.
