Midas PRO2

Rear panel connections 229
PRO2 Live Audio System
Owner’s Manual

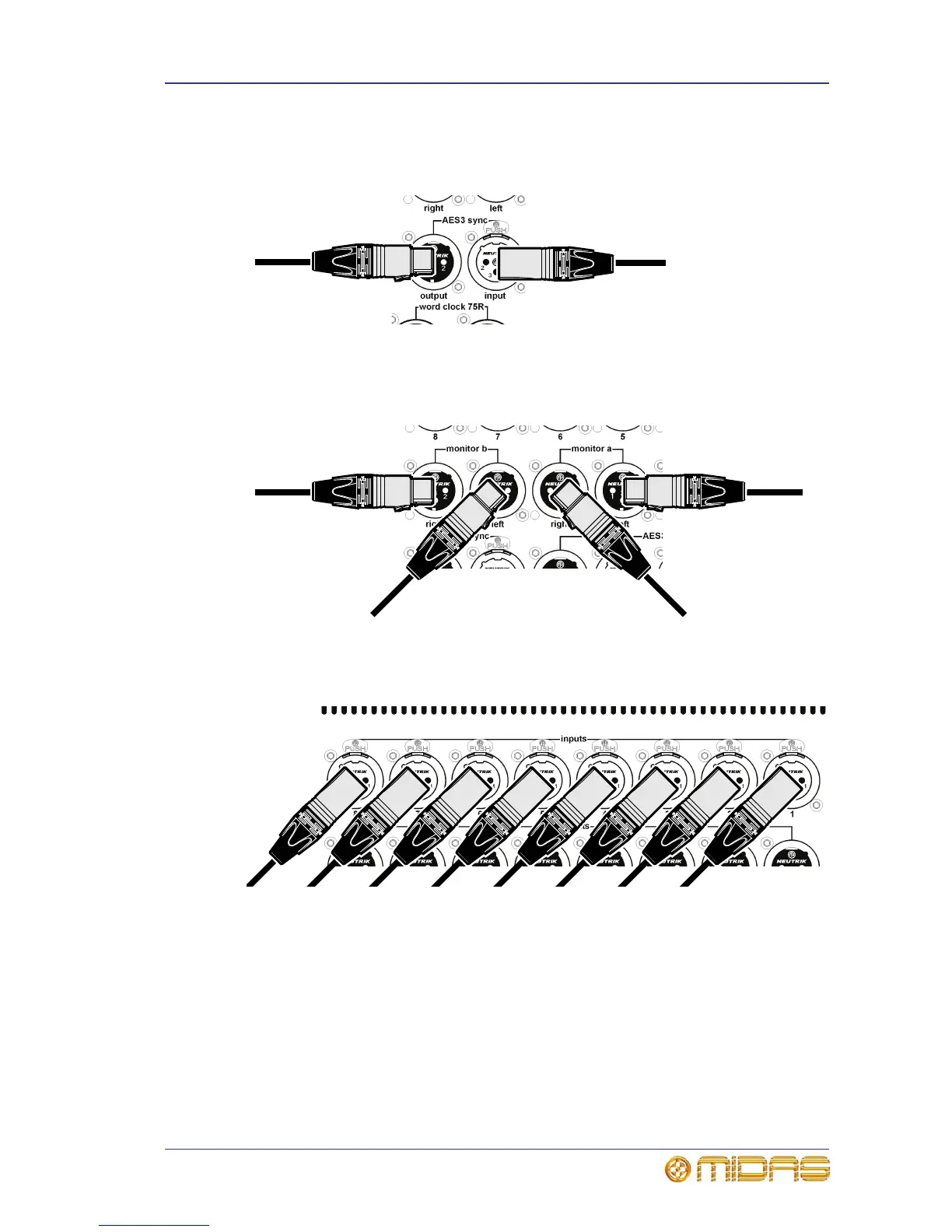

AES3 sync
input and output connectors for synchronisation with external devices that can
transmit/receive a 96kHz AES3 signal.
Monitor a and b outputs
There are two monitor outputs sections (monitor a and monitor b) for the monitor A
and B sections, and both have right and left connectors.
Inputs
The inputs section has eight input connectors for XLR mic/line inputs.
right
left
right
left
