280 Chapter 31: Output Channels
PRO2 Live Audio System
Owner’s Manual

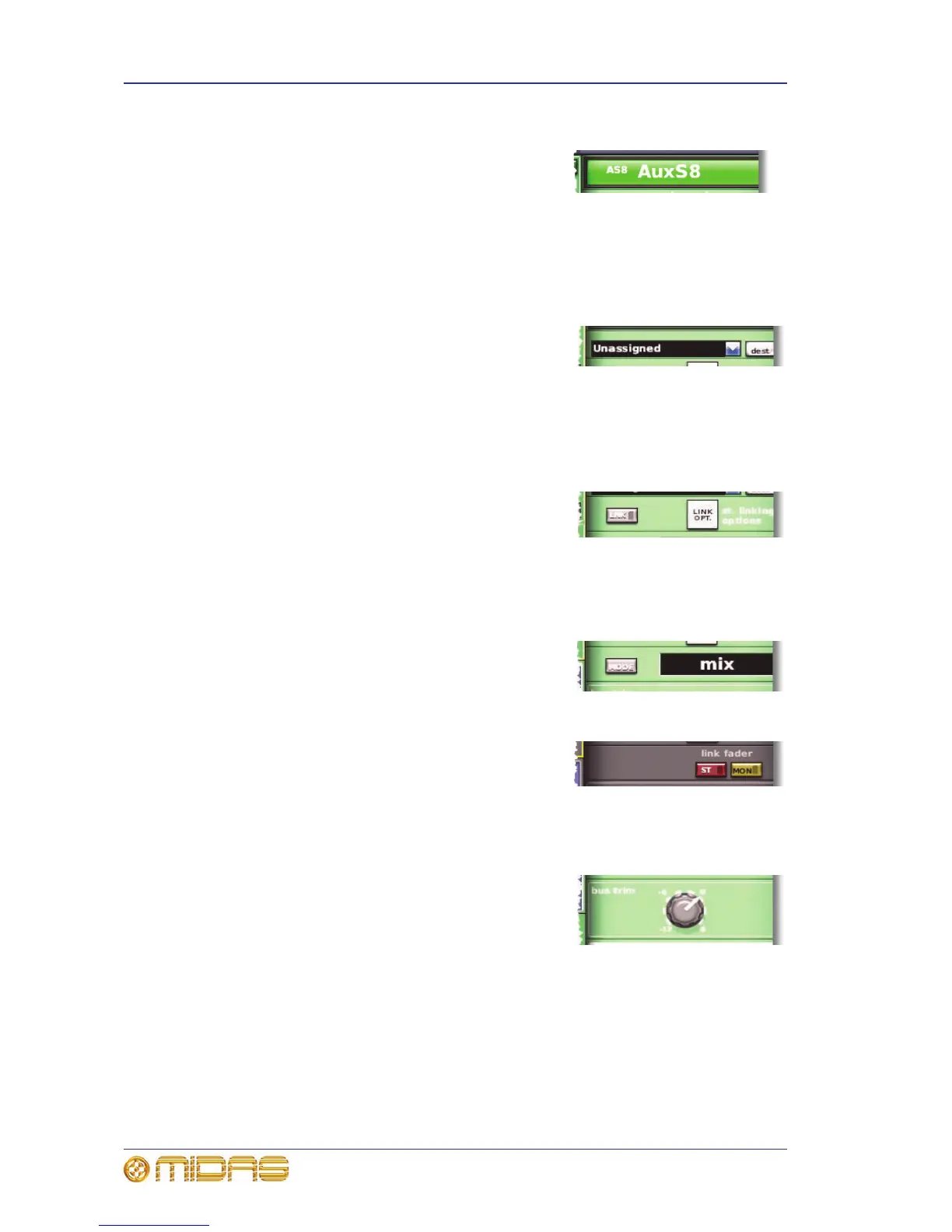

Output channel ID (GUI only)
You can change the channel name that appears in
the GUI channel strip (see “Text editing” on
page 42). This can be done in the output channel
overview or in any of the processing areas.
You can also change the background colour of the output channel name field, which is
done in the home
Mix & OutputsNaming Sheet screen of the GUI menu (see
“Configuring VCA/POPulation groups” on page 75).
Output channel source/destination (GUI only)
The channel’s destination is shown in the text field
of the configuration processing area. If no
destination has been selected, it will contain the
text “Unassigned” (as shown right). You can select
the destination for this channel by clicking dest, which opens the Patching screen (see
Chapter 8 "Patching" on page 47). For routing information, see Table “Navigating to
the Patching screen” on page 16.
Stereo linking (GUI only)
The linking section of the configuration processing
area has a LINK switch for linking the selected
output channel to the adjacent (higher numbered)
output channel. The LINK OPT. button opens a
Stereo Linking Options window from where you can select which parameters you
want to link. For more information, see Chapter 10 "Stereo Linking" on page 95.
Mix mode (GUI only)
The mix section (aux only) has a MODE button for
scrolling through the three mix modes, that is, mix,
mix minus and group.
Fader linking (GUI only)
The link fader section (matrix only), has an ST and
a MON button for linking the matrix channel fader
to the stereo or mono master faders, respectively.
Control of the stereo master faders reverts to the
highest fader.
Bus trim (GUI only)
The bus trim section has a control for fine
adjustment of the gain, in the range -12 dB to +6
dB.
