Midas PRO2 User Manual

340 Appendix F: Parameters Affected By Scope
PRO2 Live Audio System
Owner’s Manual
Configuration

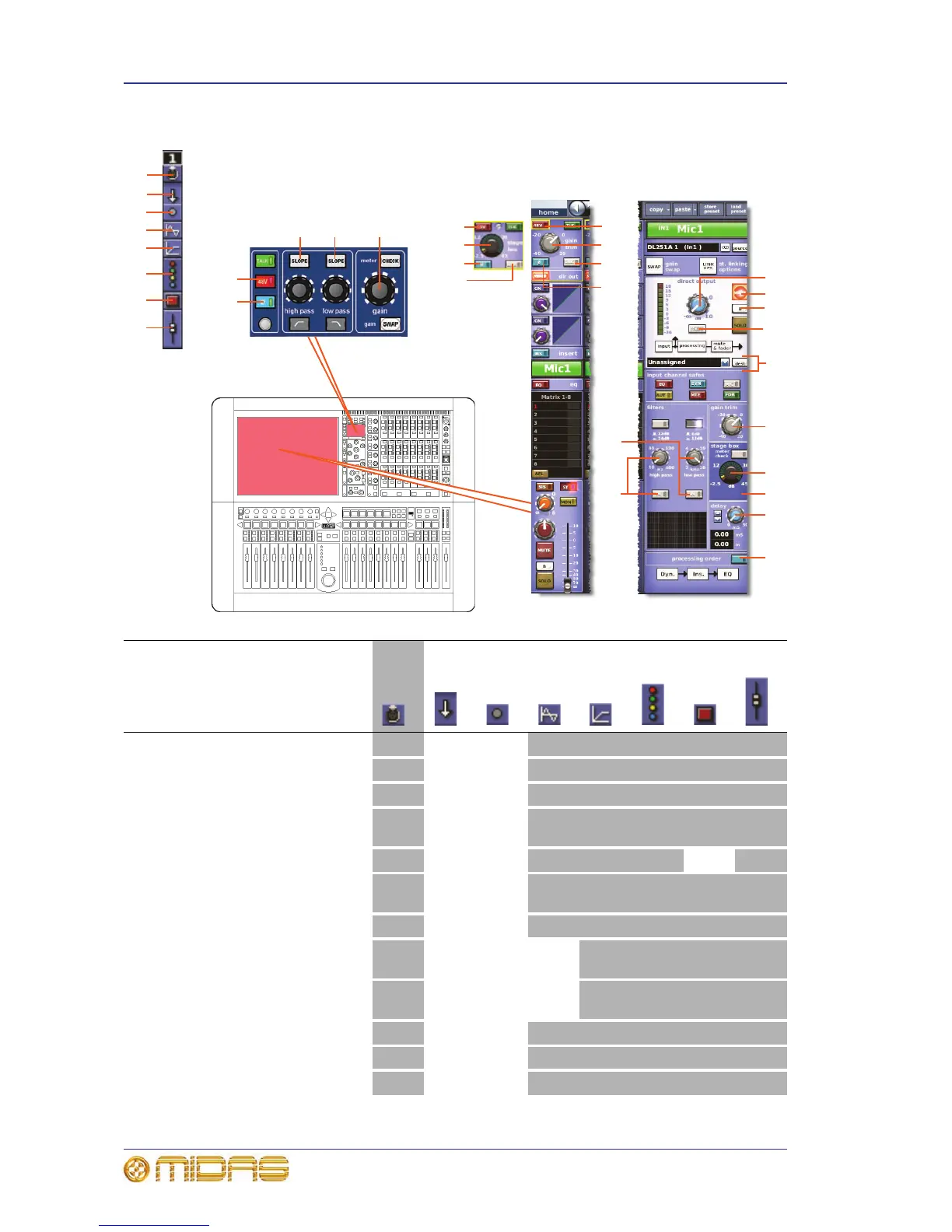

The following diagram details the scoped mic parameters of the input channels, and
shows the configuration detail area in the GUI channel strip.
ABCDEFGH
Item Parameter
1 Mic gain* N/A Yes Yes N/A N/A N/A N/A N/A
2 Digital trim*
N/A Yes Yes N/A N/A N/A N/A N/A
3 Direct output level
N/A Yes Yes N/A N/A N/A N/A N/A
4 Direct output
tap-off point
N/A Yes Yes N/A N/A N/A N/A N/A
5 Direct output mute
N/A Yes No N/A N/A N/A Yes N/A
6 Direct output patch
destination
N/A No No N/A N/A N/A N/A N/A
7 Input delay
N/A Yes Yes N/A N/A N/A N/A N/A
8 Hi pass filter: slope
in/out and rotary control
N/A Yes No Yes N/A N/A N/A N/A
9 Low pass filter: slope
in/out and rotary control
N/A Yes No Yes N/A N/A N/A N/A
10 48V
N/A Yes Yes N/A N/A N/A N/A N/A
11 30Hz filter**
N/A Yes Yes N/A N/A N/A N/A N/A
12 Input phase
N/A Yes Yes N/A N/A N/A N/A N/A
A
B
C
D
E
F
G
H
5
3
4
6
2
1
11
7
14
9
8
10
12
2
13
1
12
10
13
15
8 9
1/2
10
12

Midas PRO2 Specifications

General

Sample Rate	96 kHz
Talkback	Yes
MIDI I/O	Yes
Computer Connectivity	USB, Ethernet
Processing	40-bit floating point
Recallable Preamps	Yes
Channels	64
Matrix	8 matrix buses
Display	15" TFT display
Connectivity	Ethernet, MIDI
Type	Digital
EQ Bands	4-band parametric EQ
Inputs - Mic Preamps	8 XLR
Outputs - Main	8 XLR
Effects	Reverb, Delay, Modulation, etc.
Dynamic Processing	Gate, Compressor, Limiter
Control Surface	Motorized faders, touchscreen
Power Supply	Internal
