EQ safe

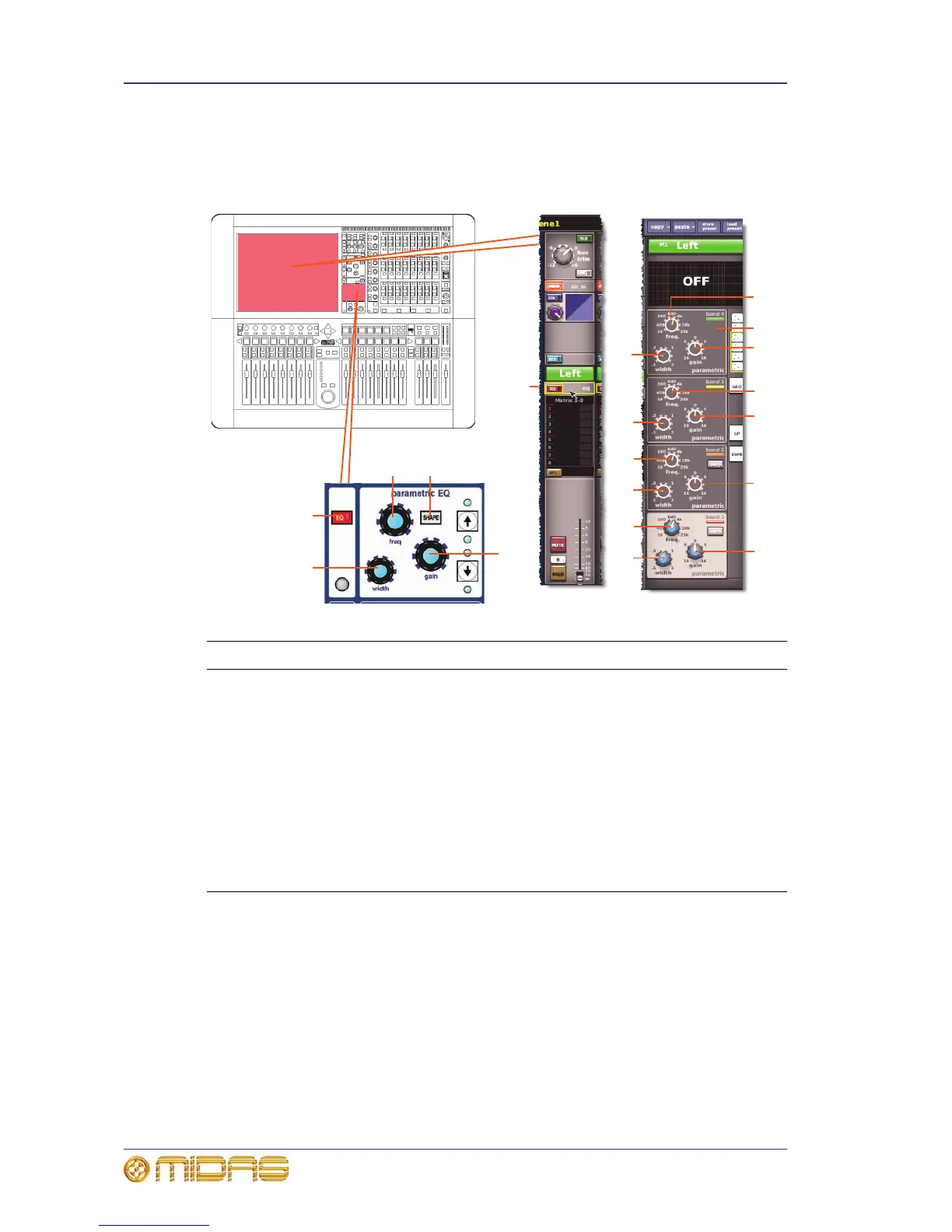

The following diagram details the EQ parameters protected by the EQ safe, and shows
the EQ detail area in the GUI channel strip and the GEQ window on the GUI screen.
* Not shown in diagram.
Note: Although bands 1 and 2 are not shown above, the items in the table also apply.
Both bands have items 2, 3 and 4. Additionally, band 1 has item 6, and band 2 has
item 7.
Item Control Parameter
1 EQ switch EQ on/off
2 gain control knob EQ gain level
3 width control knob EQ width
4 freq control knob EQ frequency
5 SHAPE switch Selects band 6 shelving modes: parametric, soft,
low pass 6dB or low pass 12dB
6* SHAPE switch Selects band 1 shelving modes: parametric,
warm, high pass 6dB or high pass 12dB
7* SHAPE switch Selects band 2 shelving modes: parametric or high
pass 24dB
1
1
4
5/6/7
2
3
7
2
3
4
2
3
2
3
2
3
4
4
4
