EQ

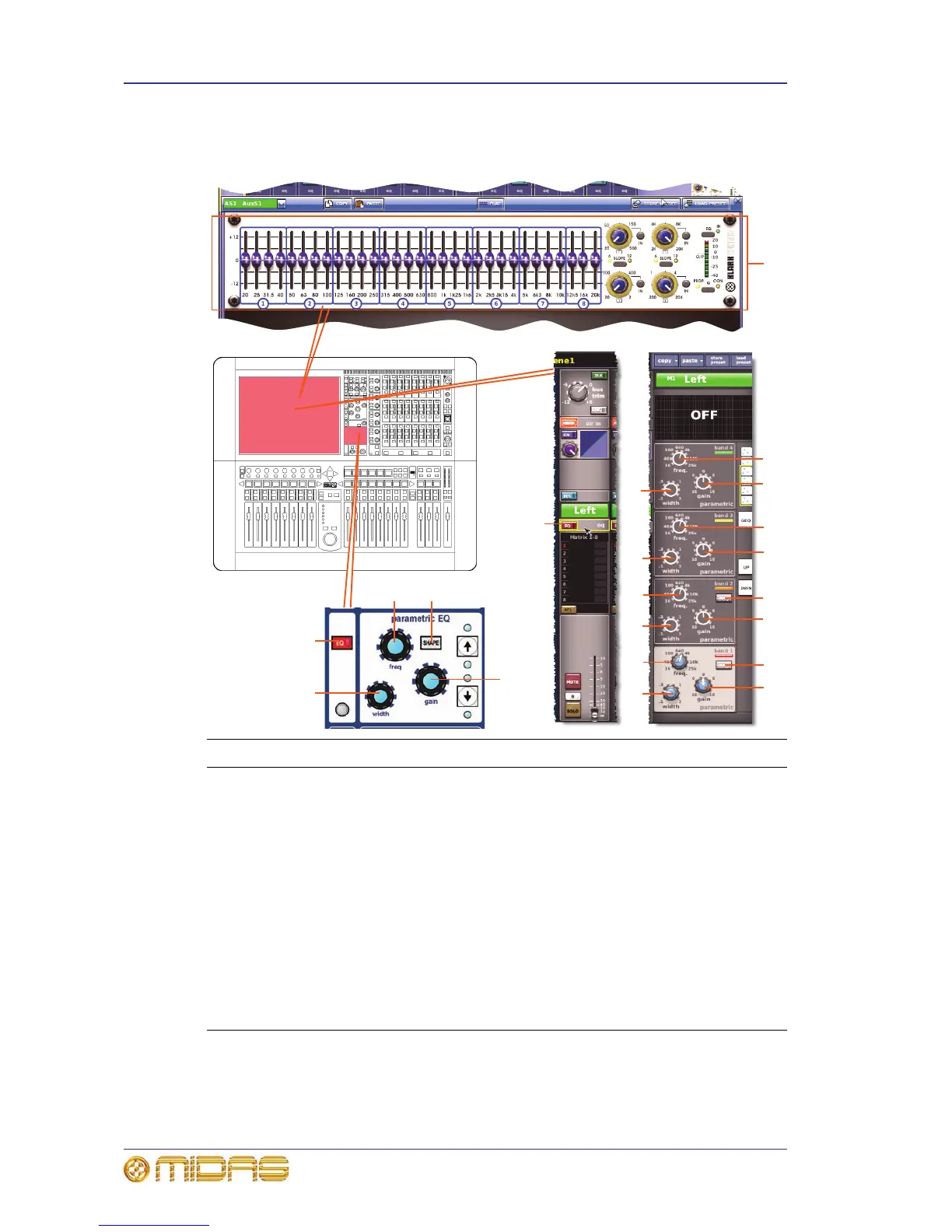

This section shows the parameters of the EQ section affected by stereo linking.
* Not shown in diagram.
Note: Although bands 5 and 6 are not shown above, the items in the table also apply.
Both bands have items 2, 3 and 4, band 6 also has item 7.
Item Control Parameter
1 EQ switch EQ on/off
2 gain control knob EQ gain level
3 width control knob EQ width
4 freq. control knob EQ frequency
5 SHAPE switch Band 1 shelving mode: bell, warm, high pass 6dB
or high pass 12dB
6 SHAPE switch Band 2 shelving mode: bell or high pass 24dB
7* SHAPE switch Band 6 shelving mode: bell, soft, low pass 6dB or
low pass 12dB
8 GEQ All GEQ parameters. (GEQ parameters linked
when both linked channels have a GEQ assigned to
them.)
