EQs

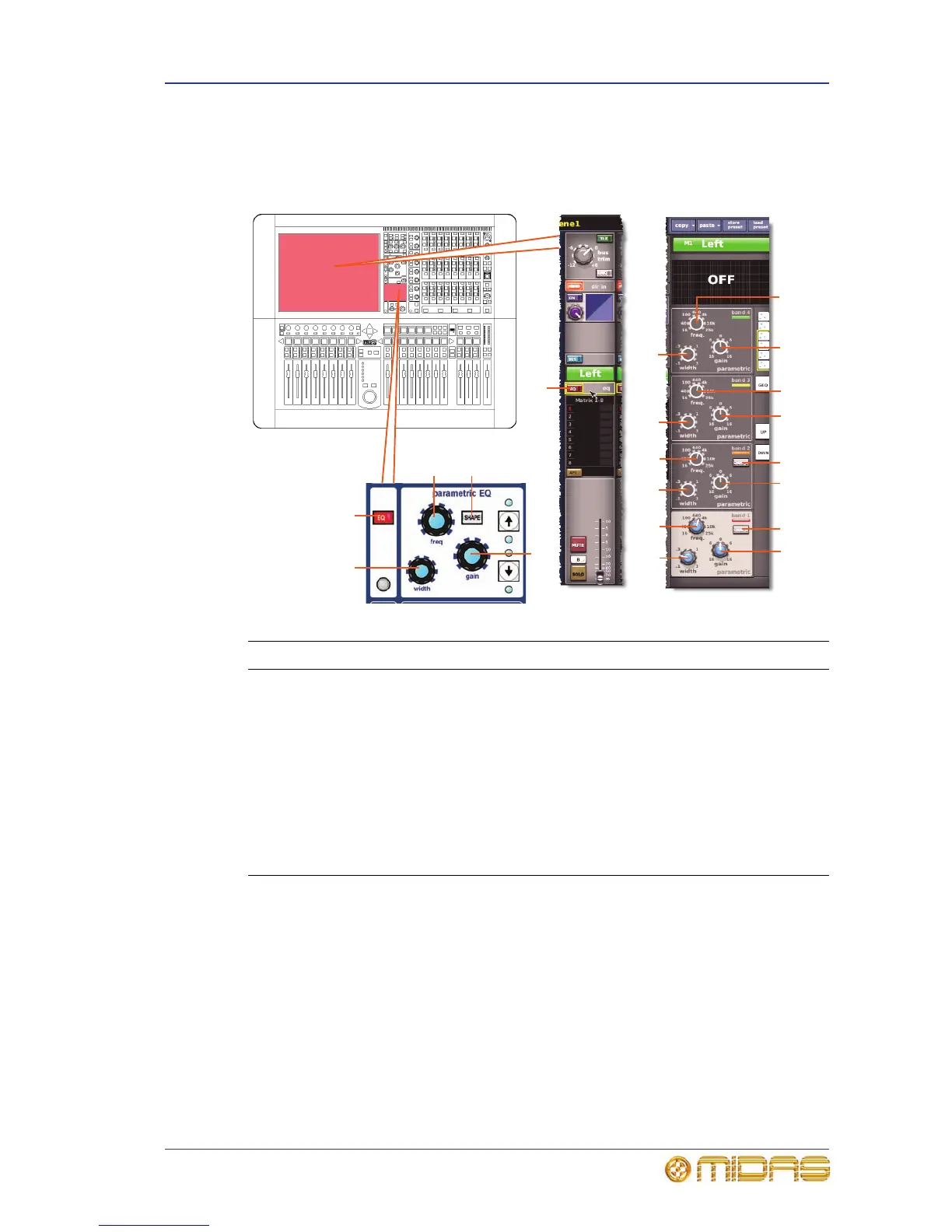

The following diagram shows the parameters of the EQ detail area copied through
scenes.
* Not shown in diagram.
Note: Although bands 5 and 6 are not shown above, the items in the table also apply.
Both bands have items 2, 3 and 4, and band 6 also has item 7.
Aux Sends (1 to 16)
Not applicable.
Item Control Parameter
1 EQ switch EQ on/off
2 gain control knob EQ gain level
3 width control knob EQ width
4 freq control knob EQ frequency
5* SHAPE switch Band 6 shelving mode: bell, soft, low pass 6dB or
low pass 12dB
6 SHAPE switch Band 2 shelving mode: bell or high pass 24dB
7 SHAPE switch Band 1 shelving mode: bell, warm, high pass 6dB
or high pass 12dB
