Midas PRO2 User Manual

48 Chapter 8: Patching
PRO2 Live Audio System
Owner’s Manual

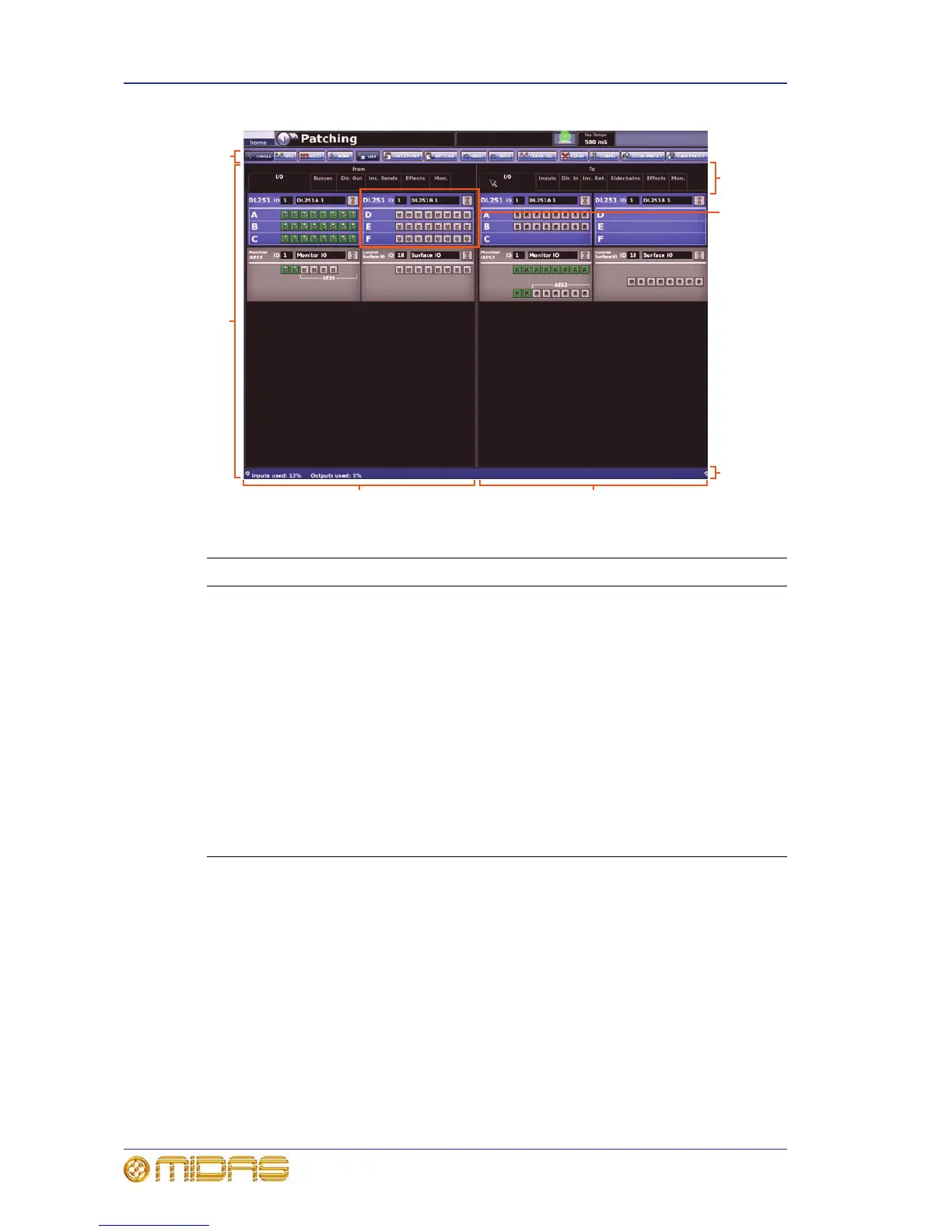

Figure 2: A typical Patching screen display
>> To open the Patching screen
Do one of the following:
• At the GUI, choose home
Patching.
• Press the routing / metering button in the navigation zone.
• At the appropriate GUI screen, click the src (source) or dest (destination) button.
The Patching screen will open at the appropriate tab/configuration window.
Item Description
1 Function button panel, contains the function buttons that enable patching
and device configuration (see “Patching screen function buttons” on
page 49).
2 Patching area, contains all of the patch connectors on tabs.
3 From section, contains a number of tabs that house all of the patch
connector sources (see “About the tabs in the From and To sections” on
page 50).
4 To section, contains a number of tabs that house all of the patch connector
destinations (see “About the tabs in the From and To sections” on page 50).
5 Status bar that shows the patching status of the inputs and outputs as a
percentage.
6 A pictorial representation of a physical device.
7 Section titles and tab names.
3 4
5
2
1
7
6

Midas PRO2 Specifications

General

Sample Rate	96 kHz
Talkback	Yes
MIDI I/O	Yes
Computer Connectivity	USB, Ethernet
Processing	40-bit floating point
Recallable Preamps	Yes
Channels	64
Matrix	8 matrix buses
Display	15" TFT display
Connectivity	Ethernet, MIDI
Type	Digital
EQ Bands	4-band parametric EQ
Inputs - Mic Preamps	8 XLR
Outputs - Main	8 XLR
Effects	Reverb, Delay, Modulation, etc.
Dynamic Processing	Gate, Compressor, Limiter
Control Surface	Motorized faders, touchscreen
Power Supply	Internal
