Mindray WATO EX-65 Operator's Manual

12-2
12.2 Trend Table
A trend table is used to recall the patient’s physiological parameter data at a specific time
point. The parameter data are reflected through a table. You can recall TVe, MV, Ppeak, FiO
2,
EtC0
2
, Plat, PEEP, Pmean, Rate and BIS data at the selected resolution within a maximum of
24-hour operating time. When the anesthesia machine is restarted, the trend table is recorded
anew.

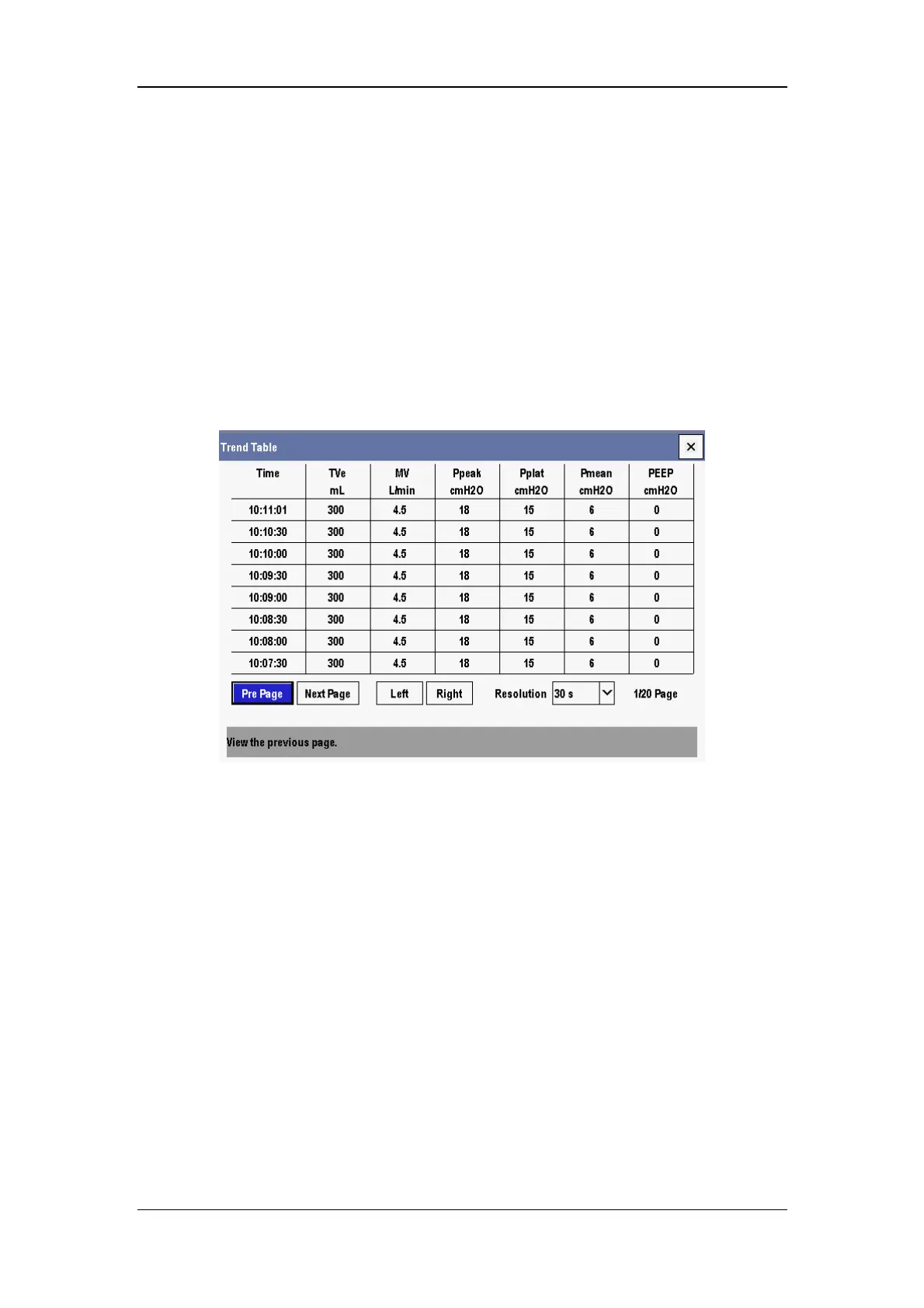

Select the [Maintenance] shortcut key → [Trend and Logbook >>] → [Trend Table >>]
to access the window as shown below.
 Select [Resolution] and toggle between [30 s], [1 min], [5 min] and [30 min] to view
the trend table.
 To browse the trend table:
 Select [Left] or [Right] to scroll left or right to view more measured values.
 Select [Prev Page] or [Next Page] to scroll up or down to view more measured
values.

Mindray WATO EX-65 Specifications

General

Type	Anesthesia Machine
Model	WATO EX-65
Brand	Mindray
Tidal Volume Range	20 to 1500 mL
O2 Concentration	21% to 100%
I:E Ratio	4:1 to 1:8
Ventilation Modes	VCV, PCV, SIMV, Manual, Spontaneous
Flow Meter	O2, N2O
Vaporizer	Up to 2 vaporizers
PEEP	0 to 20 cmH2O
Gas Supply	O2, N2O, Air
Monitoring	Airway Pressure, Flow, Volume
O2 Flush	35 to 75 L/min
Respiratory Rate	4 to 100 breaths per minute
Power Supply	100 to 240 VAC, 50/60 Hz
Fresh Gas Flow	0 to 15 L/min
