NOTE
z As required by the relevant international rules and regulations, anesthetic agent
concentration monitoring needs to be performed when the anesthesia machine is
used on the patient. If your anesthesia machine is not configured with such
monitoring function, use a qualified monitor for anesthetic agent concentration
monitoring.
5.3.3 CO2 Concentration Monitoring
If your anesthesia machine is configured with CO2 module, you can monitor FiCO2 and
EtCO2 by setting up the CO2 module.
If your anesthesia machine is configured with AG module, the system can also monitor
FiCO2 and EtCO2.
5.3.3.1 Display CO2 Parameters

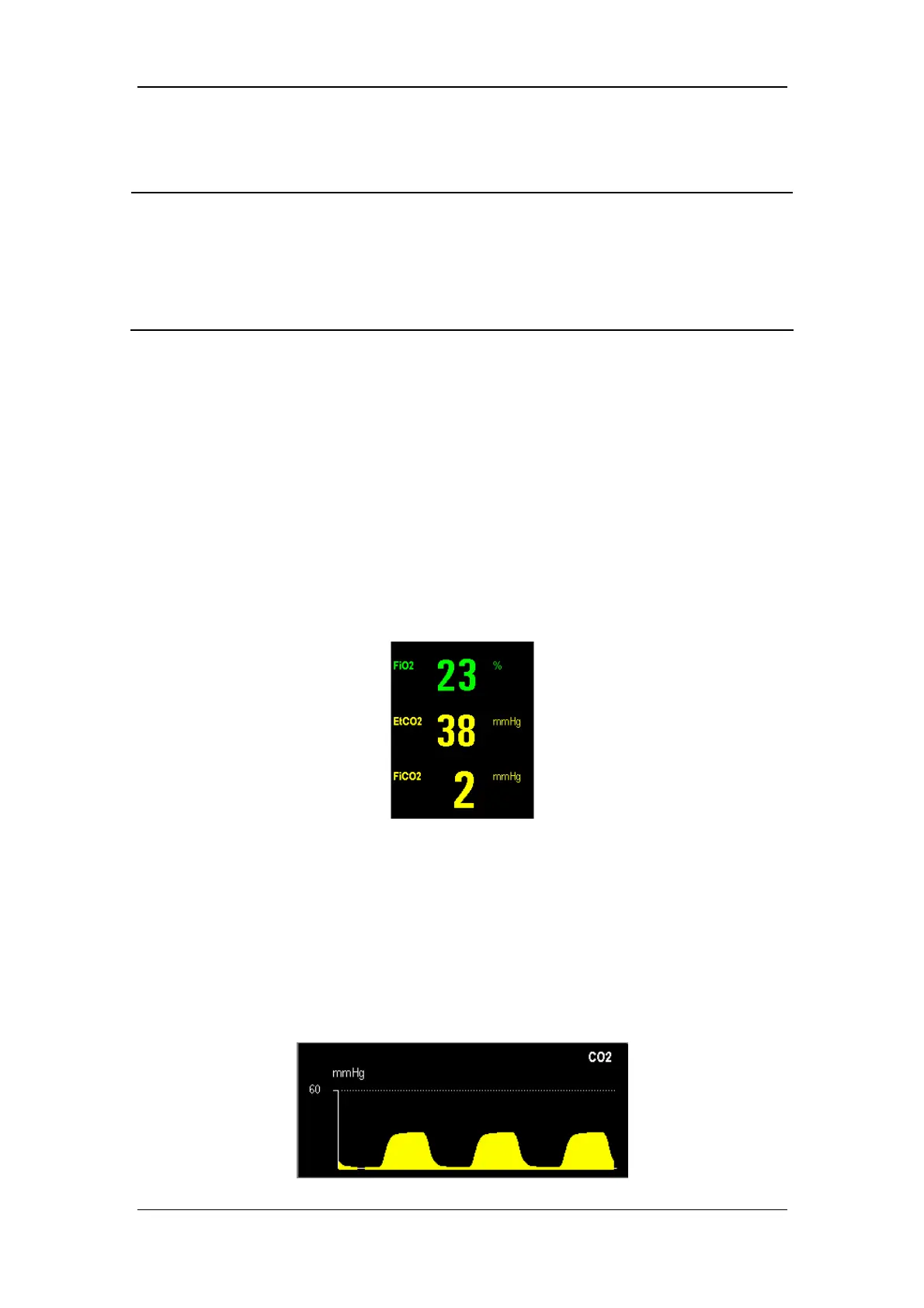

If your anesthesia machine is configured with CO2 module, CO2 related parameters are
displayed as shown below.
 [FiO2]: Fraction of inspired oxygen
 [EtCO2]: End-tidal carbon dioxide
 [FiCO2]: Fraction of inspired carbon dioxide
5.3.3.2 Display CO2 Waveform
If your anesthesia machine is configured with CO2 or AG module, a CO2 waveform is
displayed as shown below.
