5.3.3.3 Other Settings
For details, refer to 8CO2 Monitoring and 9AG and O2 Concentration Monitoring.
NOTE
z As required by the relevant international rules and regulations, CO2 concentration
monitoring needs to be performed when the anesthesia machine is used on the
patient. If your anesthesia machine is not configured with such monitoring
function, use a qualified monitor for CO2 concentration monitoring.
5.3.4 Pressure Monitoring
5.3.4.1 Display Pressure Parameters

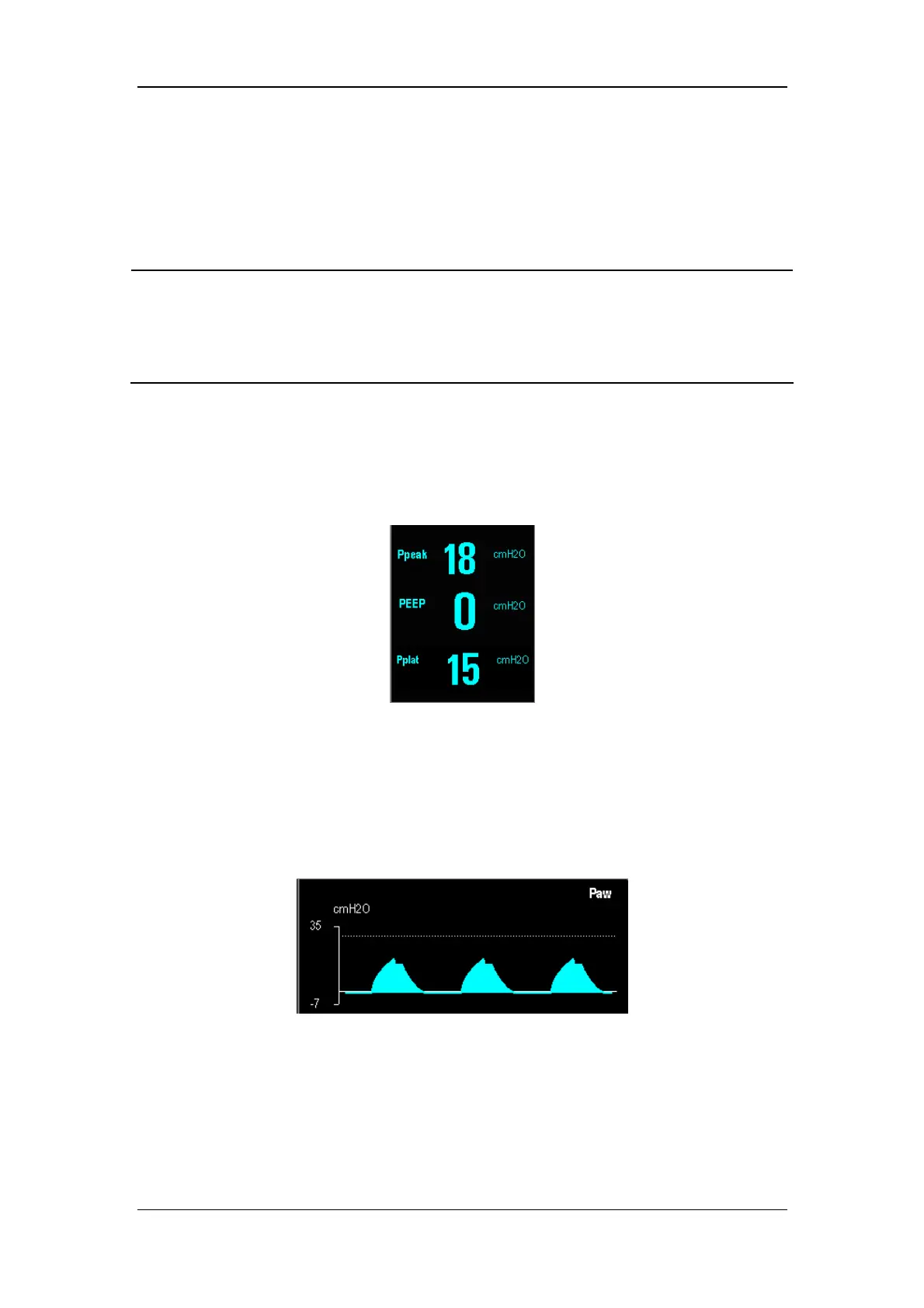

On the normal screen, the pressure related parameters are displayed as shown below.
 [Ppeak]: Peak pressure
 [Pplat]: Plateau pressure
 [PEEP]: Positive end-expiratory pressure
5.3.4.2 Display Paw Waveform
5.3.4.3 Set Paw Waveform
1. Select the Paw waveform area to access the [Paw Waveform Setup] menu.
2. Select [Waveform] and select [Paw].
3. Select [Sweep] and toggle between [6.25 mm/s] and [12.5 mm/s].The greater the value
is, the faster the waveform sweeps.

Mindray WATO EX-65 Specifications

General

Type	Anesthesia Machine
Model	WATO EX-65
Brand	Mindray
Tidal Volume Range	20 to 1500 mL
O2 Concentration	21% to 100%
I:E Ratio	4:1 to 1:8
Ventilation Modes	VCV, PCV, SIMV, Manual, Spontaneous
Flow Meter	O2, N2O
Vaporizer	Up to 2 vaporizers
PEEP	0 to 20 cmH2O
Gas Supply	O2, N2O, Air
Monitoring	Airway Pressure, Flow, Volume
O2 Flush	35 to 75 L/min
Respiratory Rate	4 to 100 breaths per minute
Power Supply	100 to 240 VAC, 50/60 Hz
Fresh Gas Flow	0 to 15 L/min
