Mindray WATO EX-65 Operator's Manual

13-37

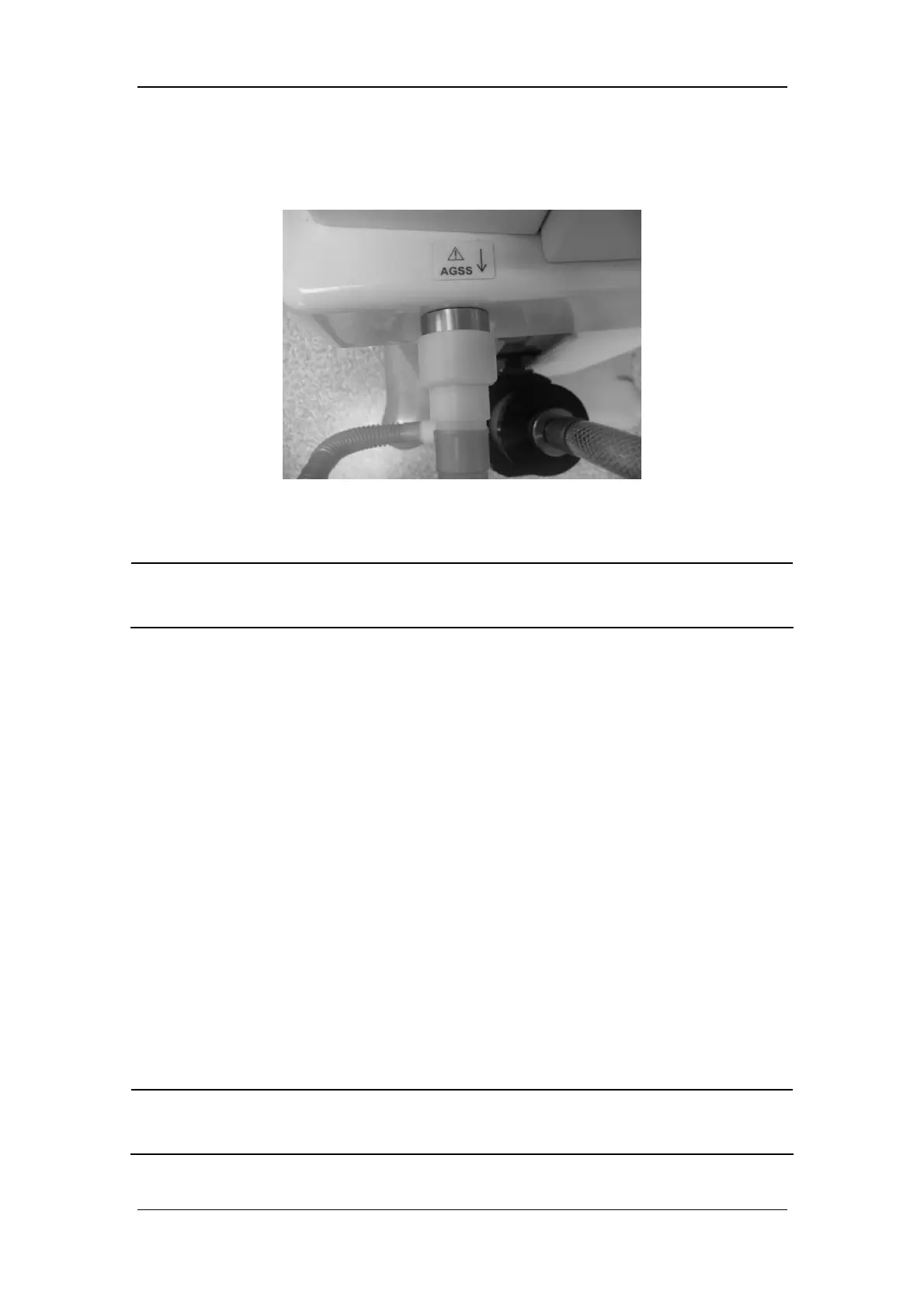

3. Connect the 30 mm female conical connector of the transfer tube to the AGSS waste gas
outlet on the anesthesia machine.
NOTE
z Remove the AGSS transfer and receiving system from the main unit when
transporting or moving the anesthesia machine.
13.10.3 Waste Gas Disposal System
The AGSS transfer and receiving system is of high flow and low vacuum type, which is in
compliance with ISO 8835-3:1997. The applicable pump rate ranges from 50 to 80 L/min.
Before use, make sure that the waste gas disposal system is high-flow disposal system and is
able to reach the flow range.
Before use, make sure that the connector of the waste gas disposal system is BS6834-1987
standard connector.
For details about specifications, refer to B.10AGSS Transfer and Receiving System
Specifications.
NOTE
z Do not block the pressure compensation opening of the AGSS transfer and
receiving system during test.

Mindray WATO EX-65 Specifications

General

Type	Anesthesia Machine
Model	WATO EX-65
Brand	Mindray
Tidal Volume Range	20 to 1500 mL
O2 Concentration	21% to 100%
I:E Ratio	4:1 to 1:8
Ventilation Modes	VCV, PCV, SIMV, Manual, Spontaneous
Flow Meter	O2, N2O
Vaporizer	Up to 2 vaporizers
PEEP	0 to 20 cmH2O
Gas Supply	O2, N2O, Air
Monitoring	Airway Pressure, Flow, Volume
O2 Flush	35 to 75 L/min
Respiratory Rate	4 to 100 breaths per minute
Power Supply	100 to 240 VAC, 50/60 Hz
Fresh Gas Flow	0 to 15 L/min
