13.10 AGSS Transfer and Receiving System

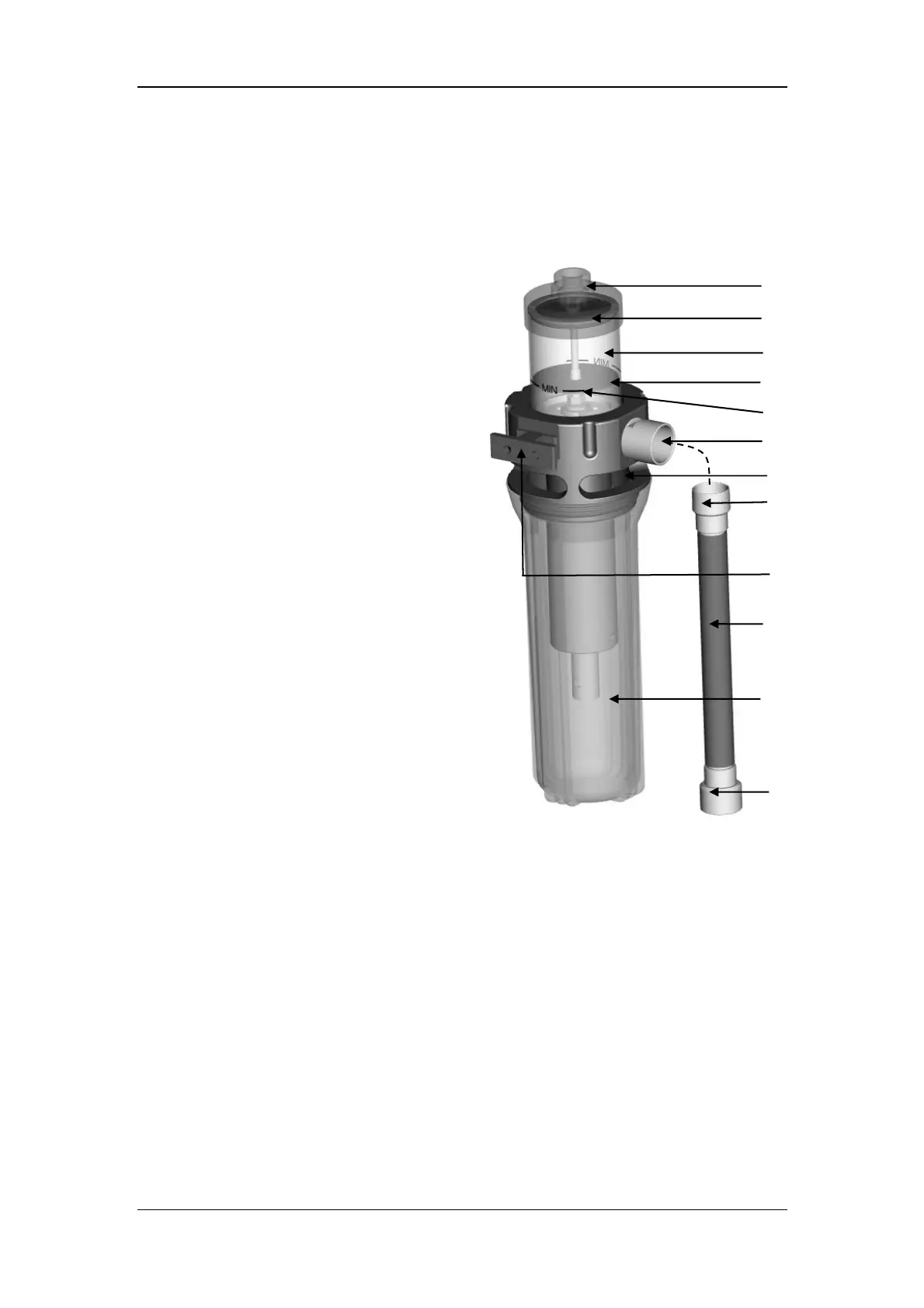

13.10.1 Components
1. Top cover
The AGSS outlet on the top cover is
connected with the AGSS active
scavenging tube.
2. Filter screen
3. Sight glass
4. Float
5. “MIN” mark
6. AGSS inlet
7. Pressure compensation opening
8. 30 mm male conical connector
9. Hook
10. Transfer tube
11. Gas reservoir
12 30 mm female conical connector
Connected with the AGSS waste gas
outlet on the left side of the anesthesia
machine.
11
1
2
8
3
9
10
12
4
7
5
6
