13.4.2.2 Quik-Fil System
1. Check that the vaporizer concentration control is in the off (“0”) position.
2. Remove the protective cap from the anesthetic agent bottle filler, checking that the
bottle and filler mechanism are not damaged.

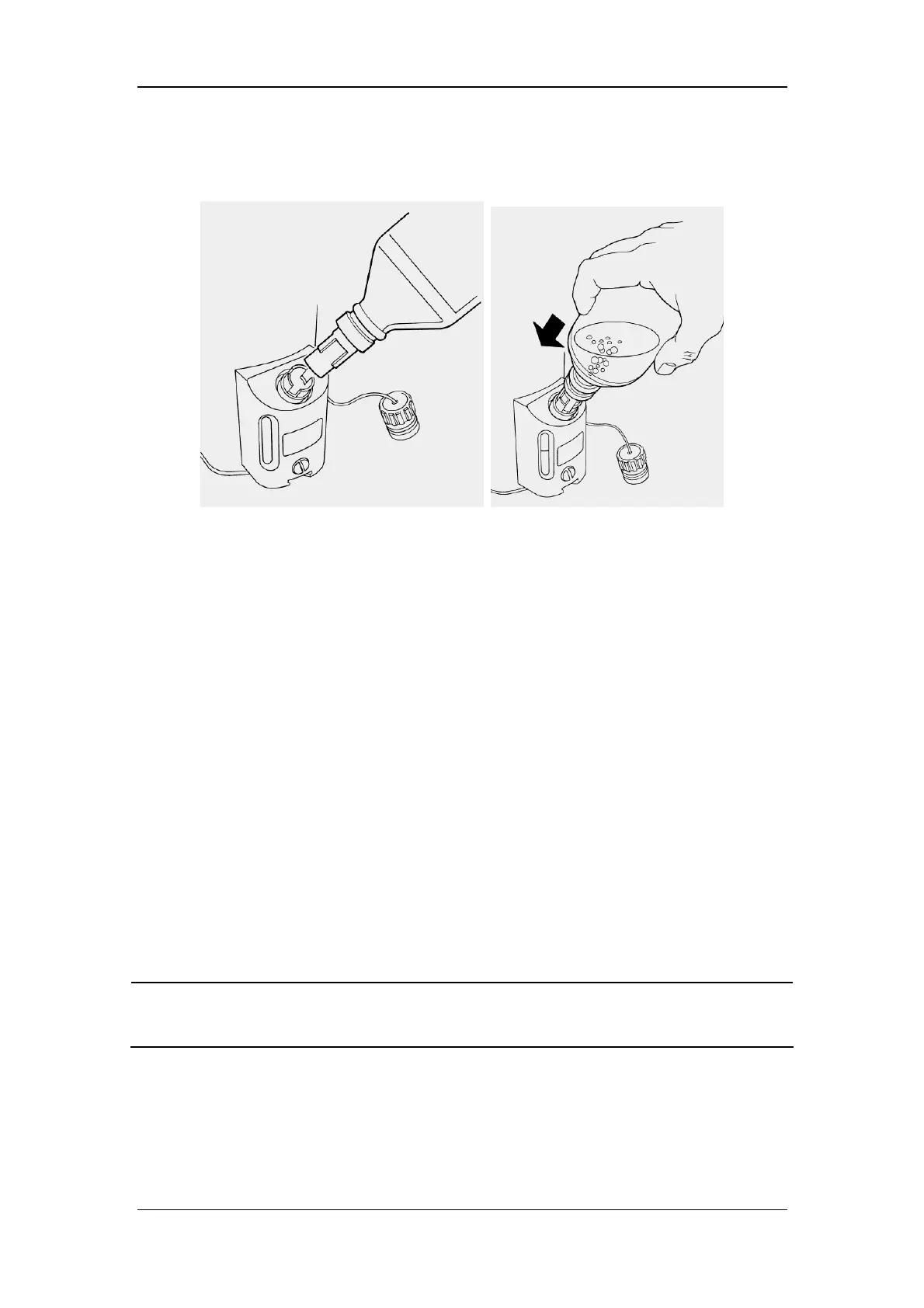

3. Remove the vaporizer filler block cap and insert the bottle nozzle into the filler block.
Rotate the bottle to align the bottle filler keys with the slots in the filler block.
4. Note the liquid level in the vaporizer sight glass and press the agent bottle firmly into
the vaporizer filler against the spring valve assembly. Allow the liquid to flow into the
vaporizer until the maximum level mark is reached, paying continuous attention to the
level in the sight glass and the air return bubbles flowing into the bottle.
5. Release the bottle when the vaporizer is full and the continuous stream of bubbles
ceases.
6. Withdraw the bottle from the vaporizer filler and replace the vaporizer filler block cap
and the protective cap on the agent bottle
NOTE
z The vaporizer volume is 250 ml at the maximum liquid level and 35 ml at the
minimum liquid level.
