Mindray WATO EX-65 Operator's Manual

2-8
1. Cylinder connector (s)
2. Equipotential stud
3. Fan
4. Mains inlet
5. Network connector
6. CIS 12 V power supply connector
7. Speaker
8. Auxiliary O2 supply

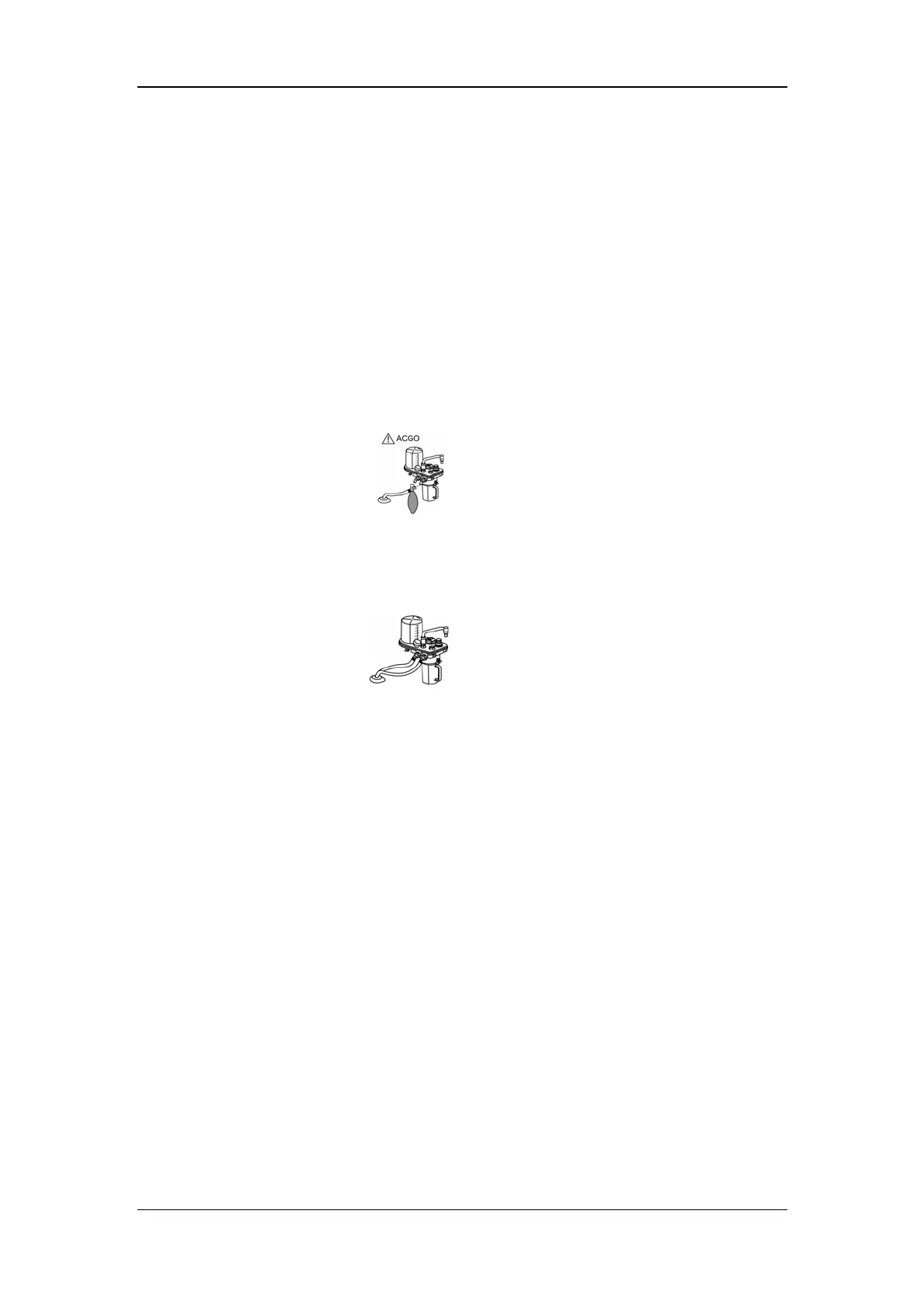

9. ACGO (Auxiliary Common Gas Outlet) switch
 Set the switch to the position to stop mechanical ventilation. Then,
fresh gas is sent to the externally connected manual breathing system through the
ACGO outlet and the technical alarm of [ACGO On] is triggered. The system
monitors airway pressure and O
2
concentration instead of volume.
 Set the switch to the position to apply mechanical or manual ventilation
to the patient through the breathing system.
10. Module slot
CO
2
, AG and BIS modules mentioned in this manual can be inserted into the slot and
identified. The CO
2
and AG modules cannot be used simultaneously.
11. AGSS outlet
12. AGSS Transfer and Receiving System

Mindray WATO EX-65 Specifications

General

Type	Anesthesia Machine
Model	WATO EX-65
Brand	Mindray
Tidal Volume Range	20 to 1500 mL
O2 Concentration	21% to 100%
I:E Ratio	4:1 to 1:8
Ventilation Modes	VCV, PCV, SIMV, Manual, Spontaneous
Flow Meter	O2, N2O
Vaporizer	Up to 2 vaporizers
PEEP	0 to 20 cmH2O
Gas Supply	O2, N2O, Air
Monitoring	Airway Pressure, Flow, Volume
O2 Flush	35 to 75 L/min
Respiratory Rate	4 to 100 breaths per minute
Power Supply	100 to 240 VAC, 50/60 Hz
Fresh Gas Flow	0 to 15 L/min
