Mindray WATO EX-65 - Volume Monitoring; Display Volume Waveform; Set Volume Waveform; Breath Rate Monitoring

5-13
5.3.7 Volume Monitoring

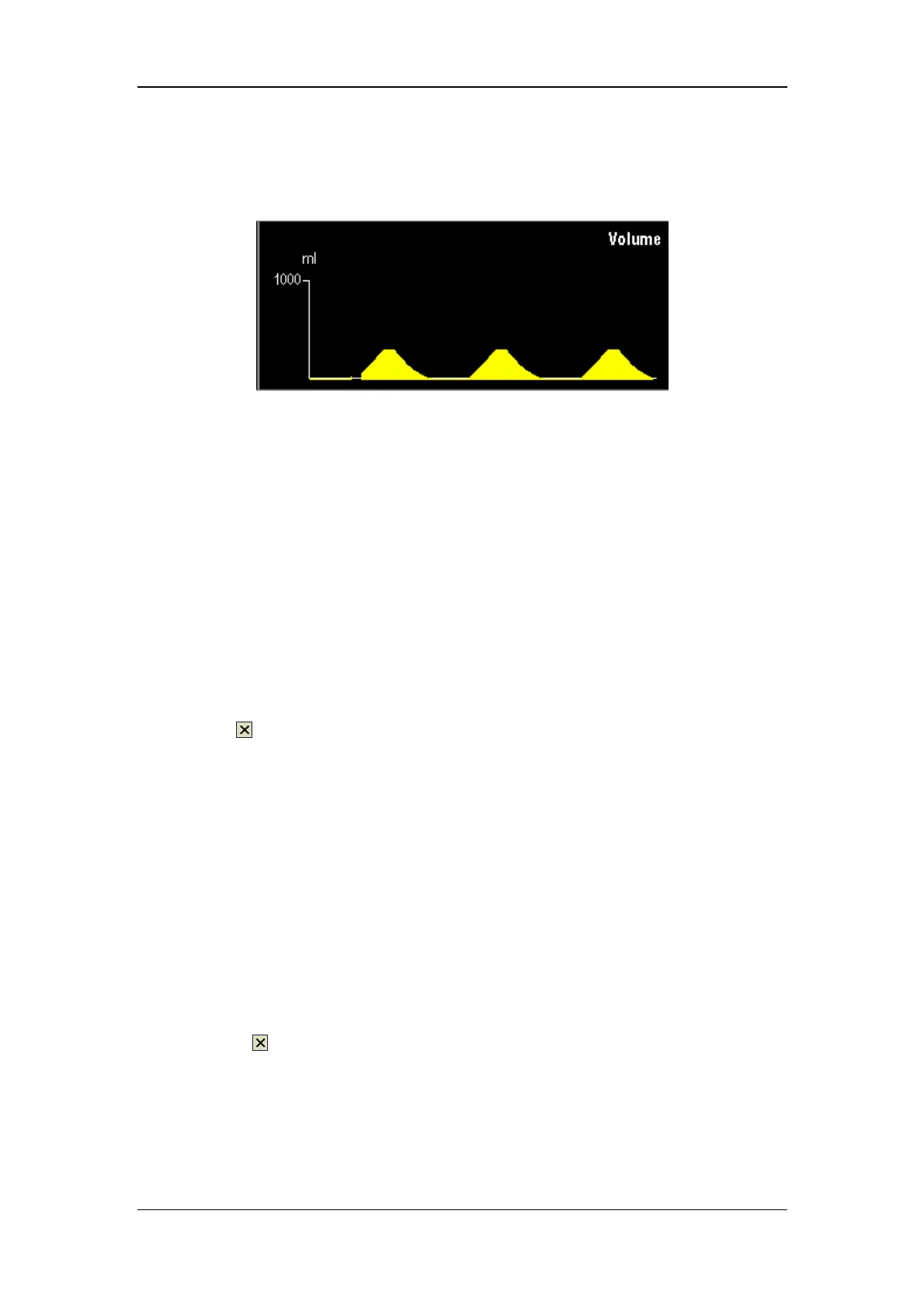

5.3.7.1 Display Volume Waveform
5.3.7.2 Set Volume Waveform
1. Select the waveform area to access the waveform setup menu.
2. Select [Waveform] and select [Volume].
3. Select [Sweep] and toggle between [6.25 mm/s] and [12.5 mm/s]. The greater the value
is, the faster the waveform sweeps.
4. Select [Scale] and toggle between [500], [1000], and [1500].The volume ranges
corresponding to the waveform scales are:
 [500]: 0 to 500 ml.
 [1000]: 0 to 1000 ml.
 [1500]: 0 to 1500 ml.
5. Select
to exit the current menu.
5.3.8 Breath Rate Monitoring
5.3.8.1 Display Breath Rate
Refer to 5.3.5.1Display Tidal Volume and Breath Rate Parameters.
5.3.8.2 Set Breath Rate Alarm Limits
1. Select the [Alarm Setup] shortcut key and select [Ventilator >>].
2. Set Rate high and low alarm limits in the [Ventilator Alarm Limits] menu.
3 Select
to exit the current menu.
