Mindray WATO EX-65 Operator's Manual

8-8
8.4 Use a Microstream CO2 Module
NOTE
z This section is only applicable to the anesthesia machine configured with
microstream CO2 module.
8.4.1 Prepare to Measure CO2
1. Plug the sampling tube into the sampling tube connector and then connect the CO2
components as shown below.
2. By default, the microstream CO2 module is in measure mode. The [CO2 Warmup]
message appears on the screen when the CO2 module is plugged in.
3. After warm-up is finished, you can perform CO2 measurements.
8.4.2 Make CO2 Settings
By selecting the [User Setup] shortcut key and then [Gas Module Setup >>], you can make
CO2 settings described below.

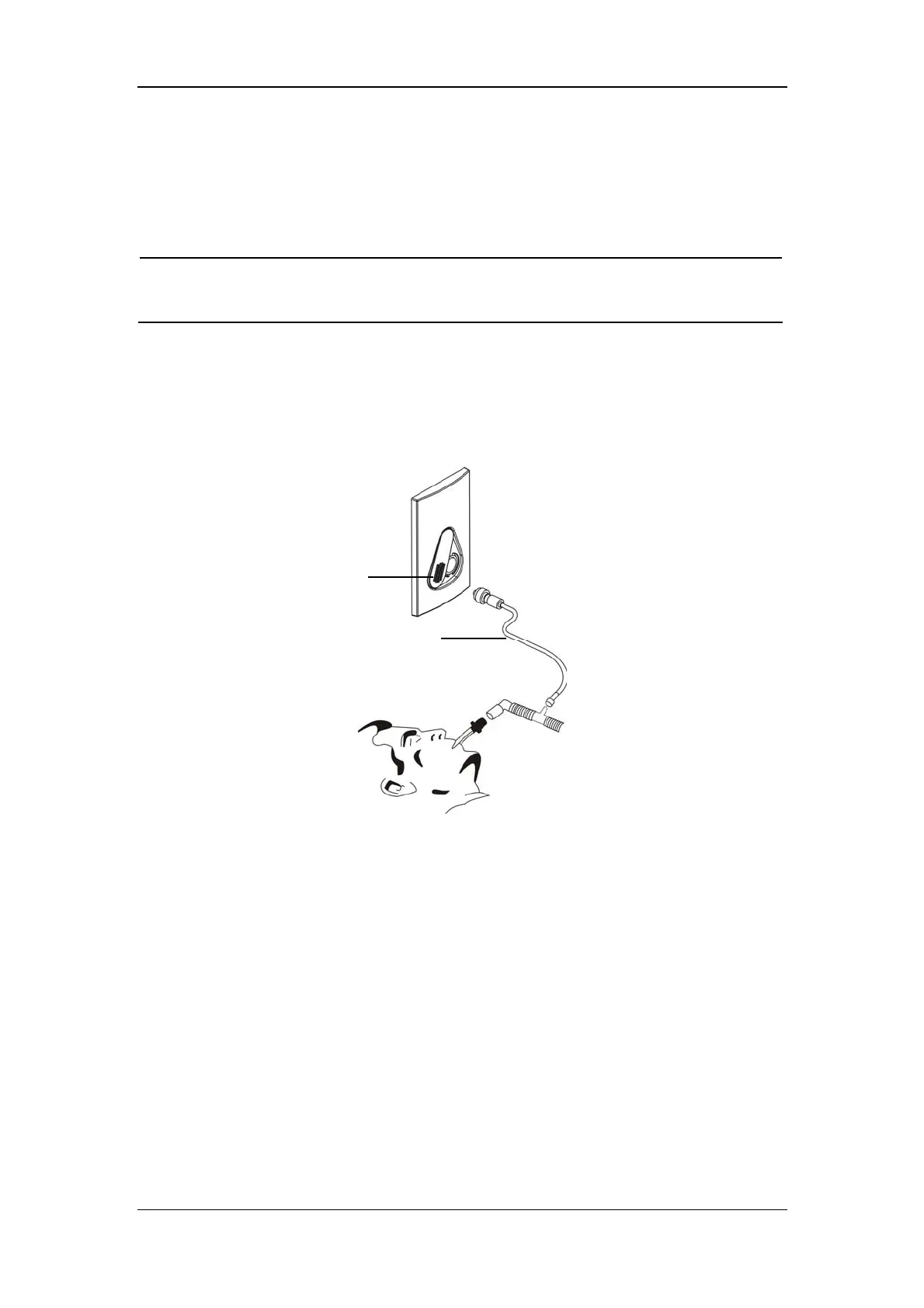

Sampling tube
Sampling tube connecto
r

Mindray WATO EX-65 Specifications

General

Type	Anesthesia Machine
Model	WATO EX-65
Brand	Mindray
Tidal Volume Range	20 to 1500 mL
O2 Concentration	21% to 100%
I:E Ratio	4:1 to 1:8
Ventilation Modes	VCV, PCV, SIMV, Manual, Spontaneous
Flow Meter	O2, N2O
Vaporizer	Up to 2 vaporizers
PEEP	0 to 20 cmH2O
Gas Supply	O2, N2O, Air
Monitoring	Airway Pressure, Flow, Volume
O2 Flush	35 to 75 L/min
Respiratory Rate	4 to 100 breaths per minute
Power Supply	100 to 240 VAC, 50/60 Hz
Fresh Gas Flow	0 to 15 L/min
