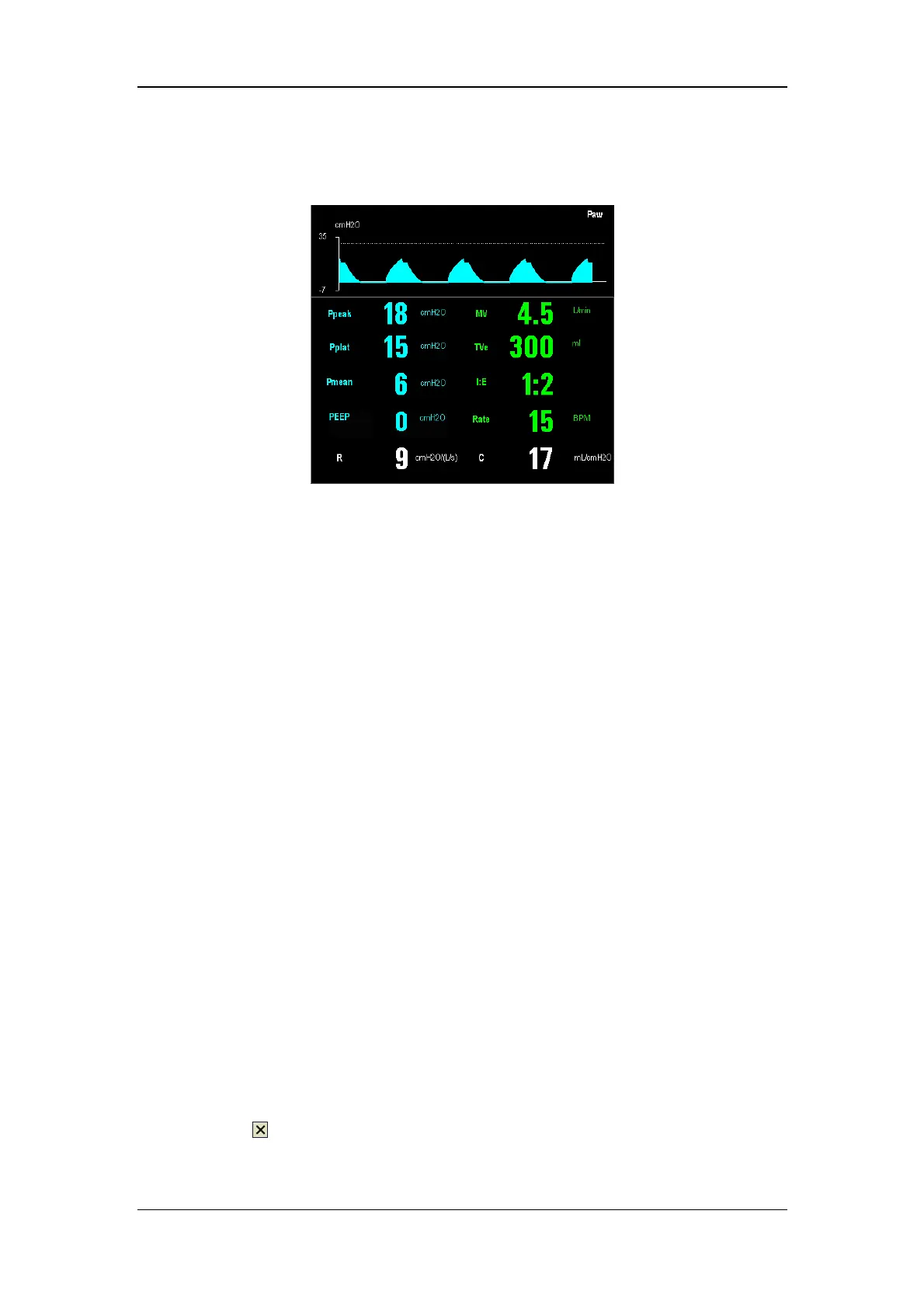

 When screen layout is set to measured values screen, this area displays Paw waveform
and ventilation parameters as shown below.
5.2 Screen Setup
To set the desired screen style,
1. Select the [Screens] shortcut key and select [Screens].
2. You can toggle between [Normal Screen], [Big Numerics] and [Measured Values].
5.3 Parameter Monitoring
5.3.1 O2 Concentration Monitoring
If your anesthesia machine is configured with an O2 sensor, select [Maintenance] → [User
Maintenance >>] → [Set O2 Sensor Monitoring >>]. Then select [ON] from the pop-up
menu to monitor the patient’s FiO2. Select [OFF] if you do not need to use the O2 sensor
monitoring function which the anesthesia machine has. You can make the following settings
when [O2 Sensor Monitoring] is set to [ON].
5.3.1.1 Switch on O
2
Sensor or O
2
Module
1. Select the [User Setup] shortcut key and select [O2 Monitoring Source >>].
2. Select [O2 Sensor] or [O2 Module] as desired. Select [OFF] if you do not need to use
the O2 sensor or O2 module.
3 Select
to exit the current menu.

Mindray WATO EX-65 Specifications

General

Type	Anesthesia Machine
Model	WATO EX-65
Brand	Mindray
Tidal Volume Range	20 to 1500 mL
O2 Concentration	21% to 100%
I:E Ratio	4:1 to 1:8
Ventilation Modes	VCV, PCV, SIMV, Manual, Spontaneous
Flow Meter	O2, N2O
Vaporizer	Up to 2 vaporizers
PEEP	0 to 20 cmH2O
Gas Supply	O2, N2O, Air
Monitoring	Airway Pressure, Flow, Volume
O2 Flush	35 to 75 L/min
Respiratory Rate	4 to 100 breaths per minute
Power Supply	100 to 240 VAC, 50/60 Hz
Fresh Gas Flow	0 to 15 L/min
