5-7

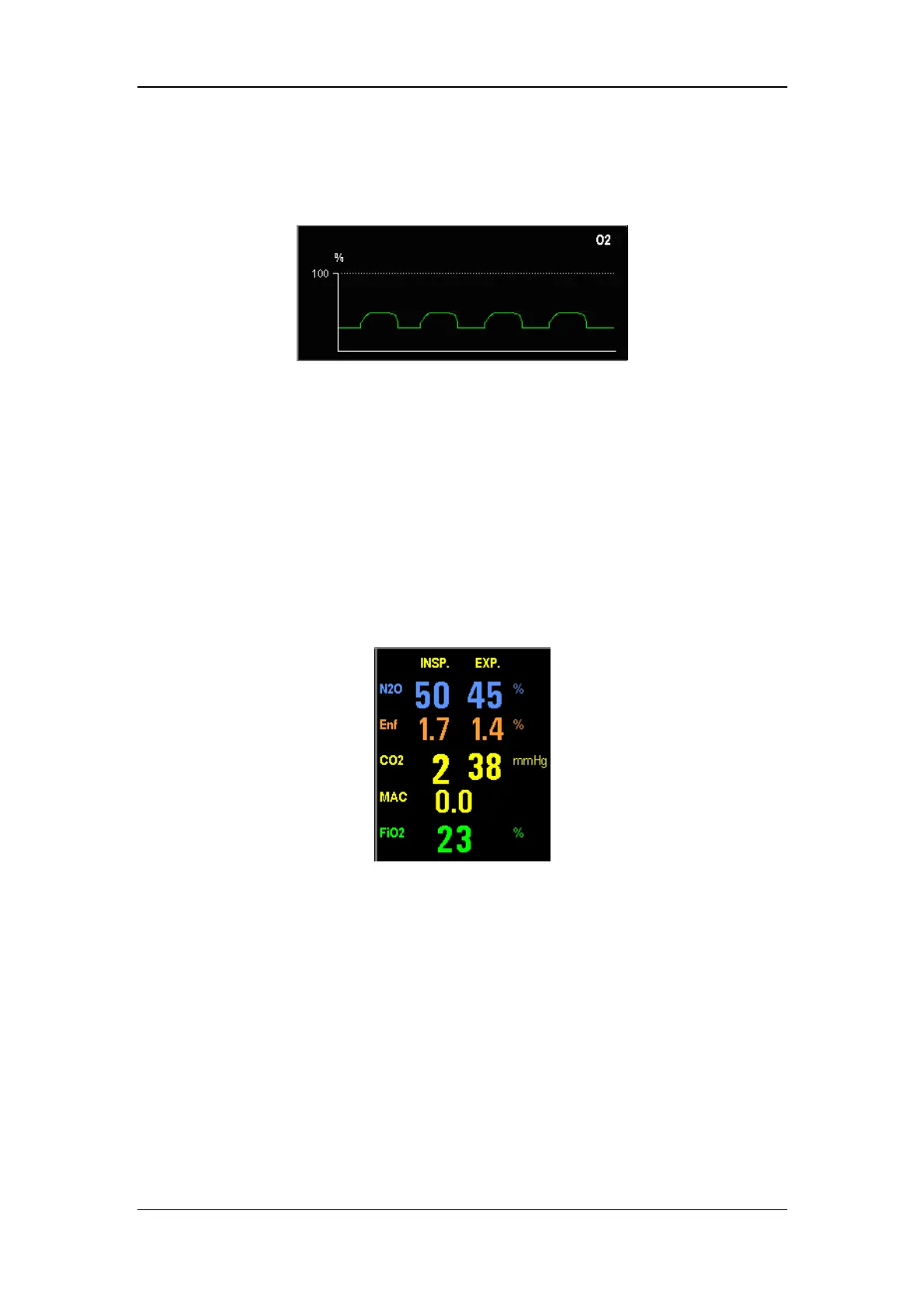

5.3.1.4 Display O2 Waveform
If the AG module which your anesthesia machine is configured with incorporates an O2
module, an O2 waveform is displayed as shown below.
5.3.2 Anesthetic Agent (AA) Concentration Monitoring
If your anesthesia machine is configured with AG module, you can monitor FiAA and EtAA
by setting up the AG module. For details, refer to 9 AG and O2 Concentration Monitoring.
5.3.2.1 Display AG Parameters
If your anesthesia machine is configured with AG module, AG related parameters are
displayed as shown below.
îš„ [FiN2O]: Fraction of inspired nitrous oxide
îš„ [EtN2O]: End-tidal nitrous oxide
îš„ [FiEnf]: Fraction of inspired enflurane (displaying the concentration of the actually
selected anesthetic agent)
îš„ [EtEnf]: End-tidal enflurane (displaying the concentration of the actually selected
anesthetic agent)
îš„ [EtCO2]: End-tidal carbon dioxide
îš„ [FiCO2]: Fraction of inspired carbon dioxide
îš„ [MAC]: Minimum alveolar concentration
îš„ [FiO2]: Fraction of inspired oxygen
