Mindray WATO EX-65 Operator's Manual

1-6

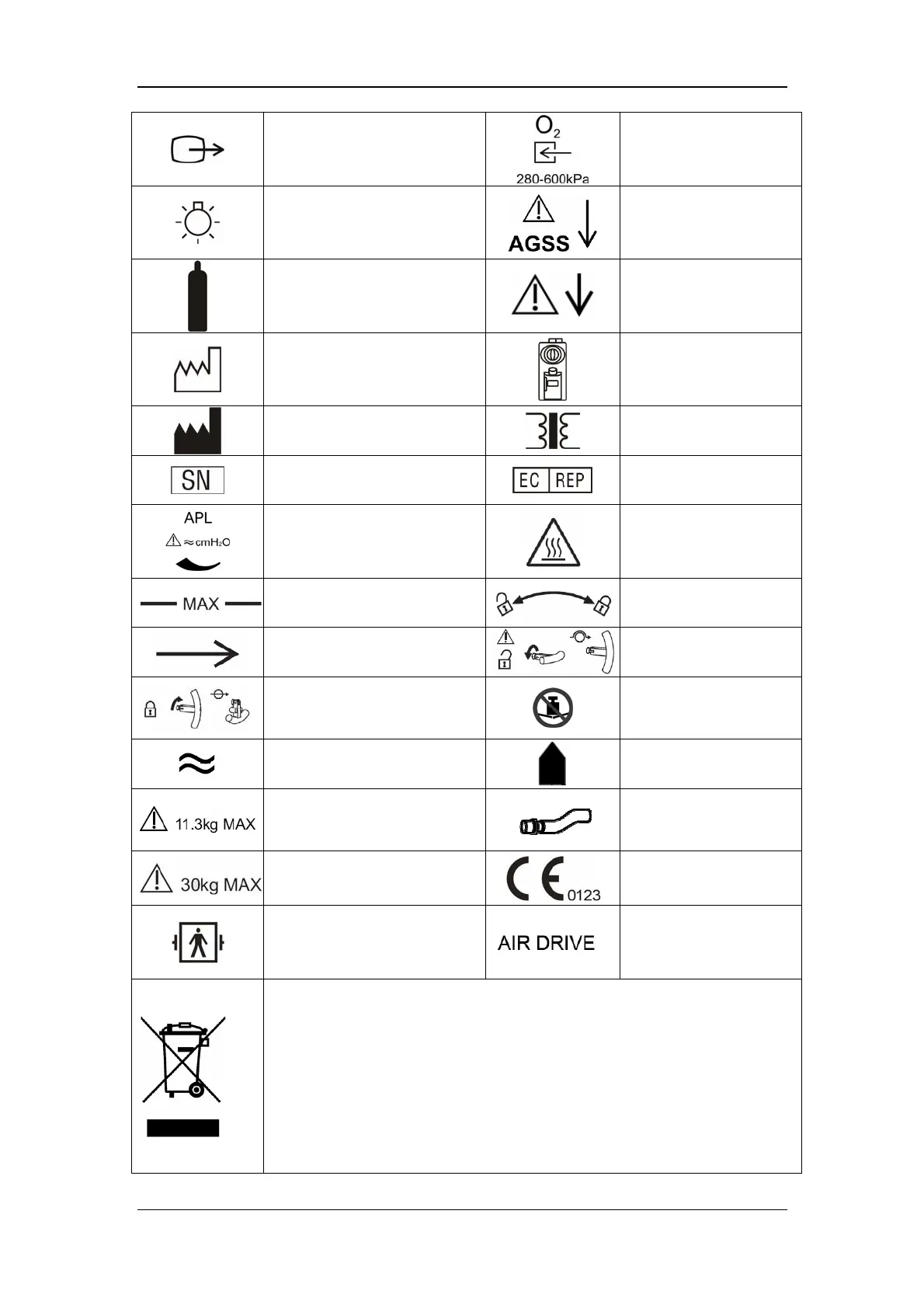

VGA connector
O
2
supply connector
Table top light
AGSS outlet
Cylinder
PEEP outlet
Manufacture date
Vaporizer
Manufacturer
Isolation transformer
Serial number
European community
representative
APL valve
CAUTION HOT
Maximum level of the
sodalime canister
Lock or unlock as the
arrow shows
Gas input direction
Unlock the lifting device
Lock the lifting device
Do Not Crush
Approximate
Please align!
Max. weight: 11.3 kg
Pipeline
Max. weight: 30 kg
CE marking
Type BF applied part.
Defibrillation-proof protection
against electric shock.
The anesthesia machine
is driven by Air.
The following definition of the WEEE label applies to EU member states only.
This symbol indicates that this product should not be treated as household
waste. By ensuring that this product is disposed of correctly, you will help
prevent bringing potential negative consequences to the environment and
human health. For more detailed information with regard to returning and
recycling this product, please consult the distributor from whom you purchased
it.
* For system products, this label may be attached to the main unit only.

Mindray WATO EX-65 Specifications

General

Type	Anesthesia Machine
Model	WATO EX-65
Brand	Mindray
Tidal Volume Range	20 to 1500 mL
O2 Concentration	21% to 100%
I:E Ratio	4:1 to 1:8
Ventilation Modes	VCV, PCV, SIMV, Manual, Spontaneous
Flow Meter	O2, N2O
Vaporizer	Up to 2 vaporizers
PEEP	0 to 20 cmH2O
Gas Supply	O2, N2O, Air
Monitoring	Airway Pressure, Flow, Volume
O2 Flush	35 to 75 L/min
Respiratory Rate	4 to 100 breaths per minute
Power Supply	100 to 240 VAC, 50/60 Hz
Fresh Gas Flow	0 to 15 L/min
