▼ Detection of a peak in the entire section
To detect a peak with the entire section defined as the desired detecting section, set the following
values to P functions PF-01 and PF-02, respectively.
P function Setting
PF-01 (Detecting operation) 00 (Peak)
PF-02 (Detecting section) 0 (Entire section)

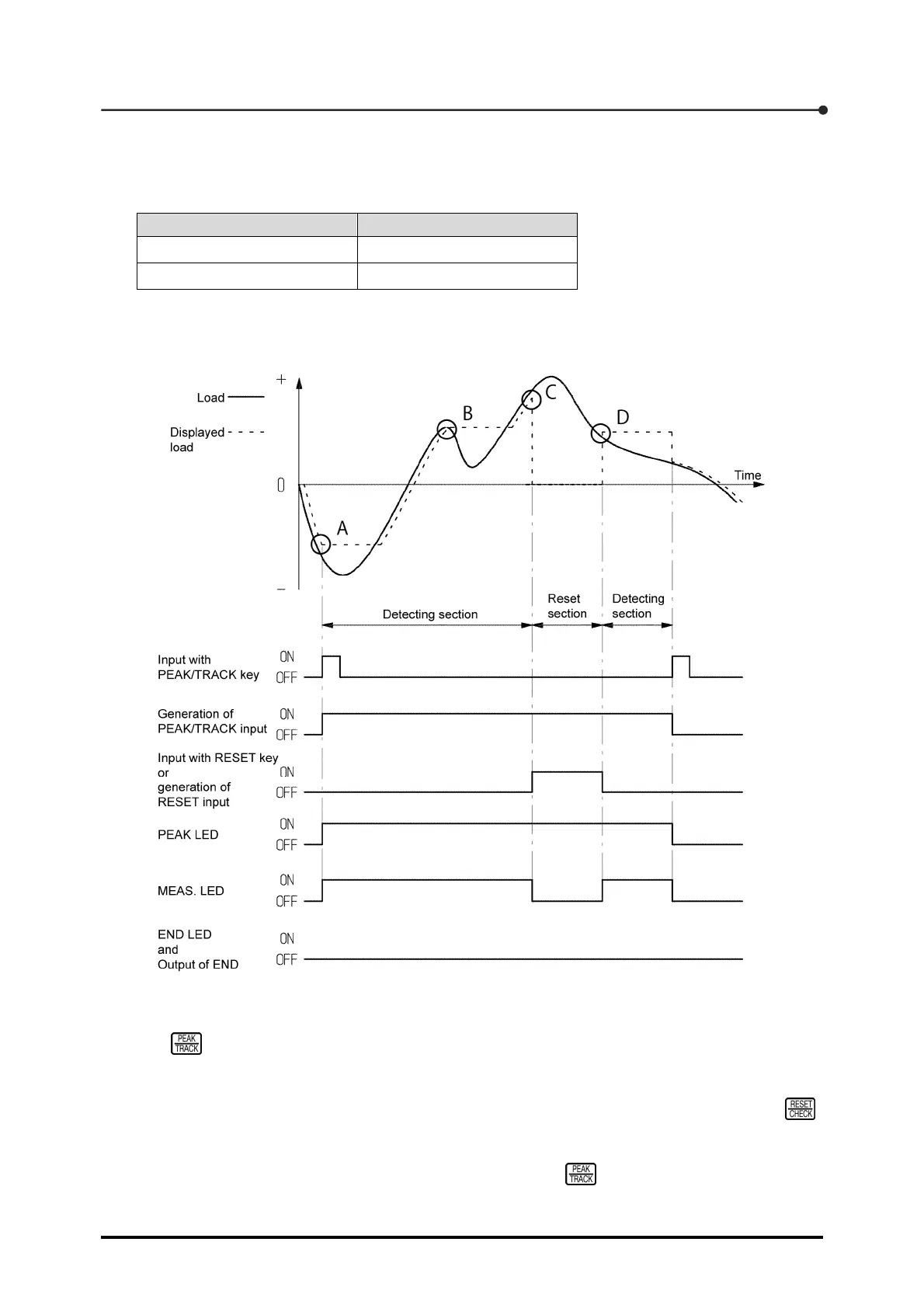

Under these settings, the peak is determined as shown below according to the change in load.
When the detection operation initiated through PEAK/TRACK input is generated by, for example,
pressing , point A is determined as a peak. When the load changes thereafter and exceeds the
value of point A, the peak changes according to the track, and, when the load reaches point B, the
peak will be the value of point B. Similarly, when the load exceeds the value of point B, the peak
changes according to the track. When the RESET input is generated by, for example, pressing ,
the process enters into the reset section and the displayed load becomes [0]. When the process
leaves the reset section, it reenters the detecting section and the value of point D will be the peak
until the PEAK/TRACK input is ended by, for example, pressing .
