5 Settings Related to Detection
69
▼ Detection of a maximum in the time-specified section
To detect a maximum with the time-specified section defined as the desired detecting section, set the
following values to P functions PF-01, PF-02, PF-11, and PF-40, respectively.
P function Setting
PF-01 (Detecting operation) 05 (Maximum)
PF-02 (Detecting section) 2 (Time-specified section)
PF-11 (Detecting data width) 1 000 (Display in the load window)
PF-40 (Detecting time) 1 000 (ms)

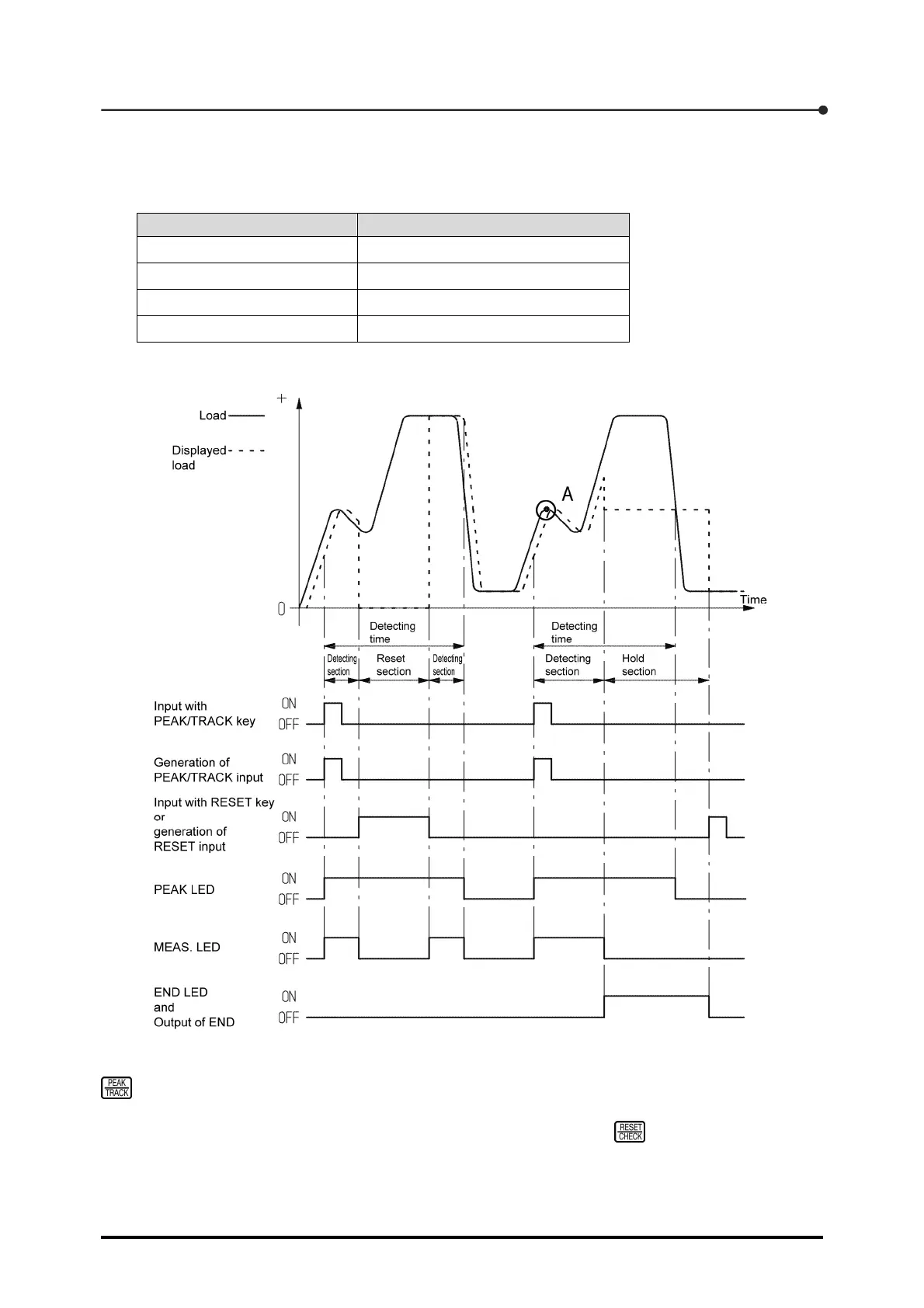

Under these settings, the maximum is determined as shown below according to the change in load.
When the detecting operation is initiated through input of PEAK/TRACK by, for example, pressing
, the section within the detecting time already set is defined as the detecting section. When a
maximum (point A) is detected in the detecting section, the subsequent section will be the hold
section. When the RESET input is generated by, for example, pressing in the detecting section,
the process enters the reset section and the displayed load becomes [0]. When the RESET input is
ended, the process reenters the detecting section. When the RESET input is generated in the hold
section, the detection process ends.
