7 Settings Related to Operation
95
5. Press to complete checking the option.
When you press instead of , used to check the excitation voltage
appears.
6. Press twice to return to Measurement mode.

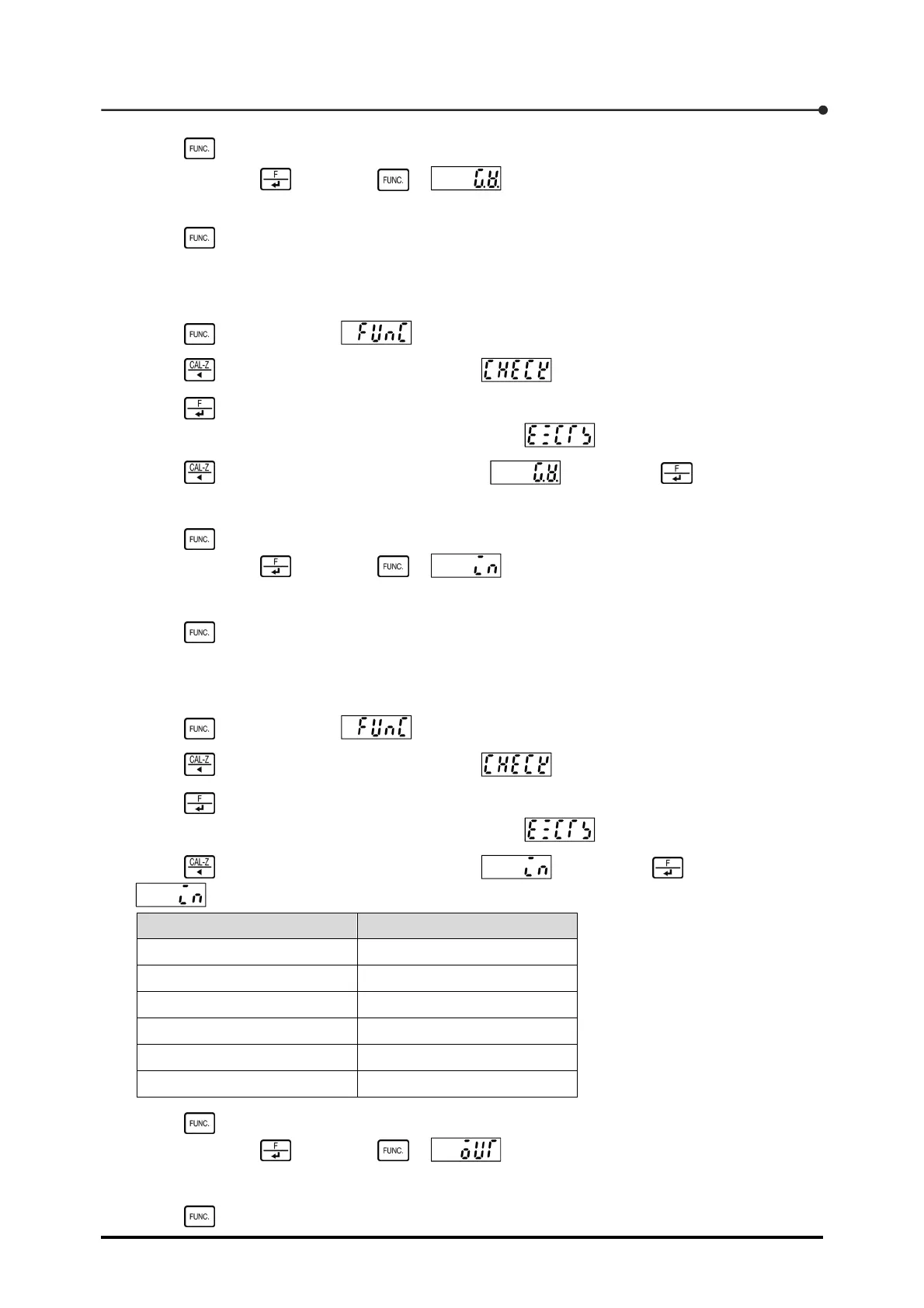

7.5.4 Checking the excitation voltage
1. Press once to display .
2. Press four times to change the display to .
3. Press .
Check mode is activated, and the display changes to .
4. Press three times to change the display to , then press .
The current excitation voltage appears and flashes.
5. Press to complete checking the excitation voltage.
When you press instead of , used to check the external control input
appears.
6. Press twice to return to Measurement mode.
7.5.5 Checking the external control input
1. Press once to display .
2. Press four times to change the display to .
3. Press .
Check mode is activated, and the display changes to .
4. Press four times to change the display to , then press .
flashes, and the LED connected to the external control input turns on.
External control input LED
INPUT1 is turned on. SEL1
INPUT2 is turned on. SEL2
INPUT3 is turned on. CHECK
INPUT4 is turned on. HOLD
INPUT5 is turned on. PEAK
INPUT6 is turned on. MEAS.
5. Press to complete checking the external control input.
When you press instead of , used to check the external control output
appears.
6. Press twice to return to Measurement mode.
To Next Page
