7 Settings Related to Operation
96

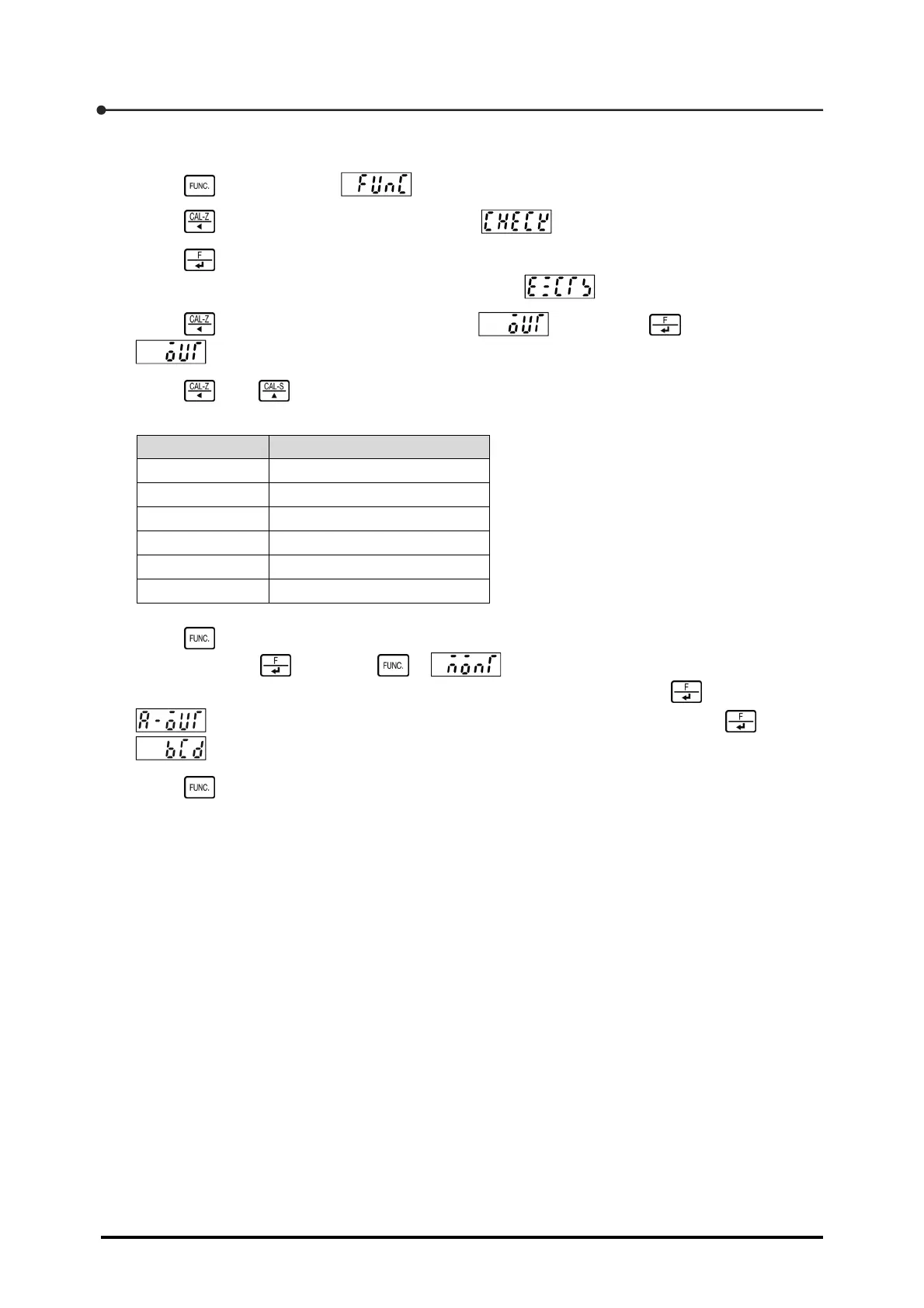

7.5.6 Checking the external control output
1. Press once to display .
2. Press four times to change the display to .
3. Press .
Check mode is activated, and the display changes to .
4. Press five times to change the display to , then press .
flashes and the [OUT1] LED in the status window turns on.
5. Using and , turn on any of the following LEDs to turn on the connected external
control output.
LED External control input
OUT1 OUTPUT1 is turned on.
OUT2 OUTPUT2 is turned on.
OUT3 OUTPUT3 is turned on.
OUT4 OUTPUT4 is turned on.
SEL1 OUTPUT5 is turned on.
SEL2 OUTPUT6 is turned on.
6. Press to complete checking the external control output.
When you press instead of , used to check the current input appears.
When the current output card or voltage output card is mounted, pressing displays
used to check the analog output. If the BCD card is mounted, pressing displays
used to check the BCD output.
7. Press twice to return to Measurement mode.
