Configuring for Switched Digital Video • Step by Step Instructions

APEX1000 All-Purpose Edge QAM Software Version 2.4.x • Installation and Operation Manual

182

573408-001-a

Configuring QAM Outputs

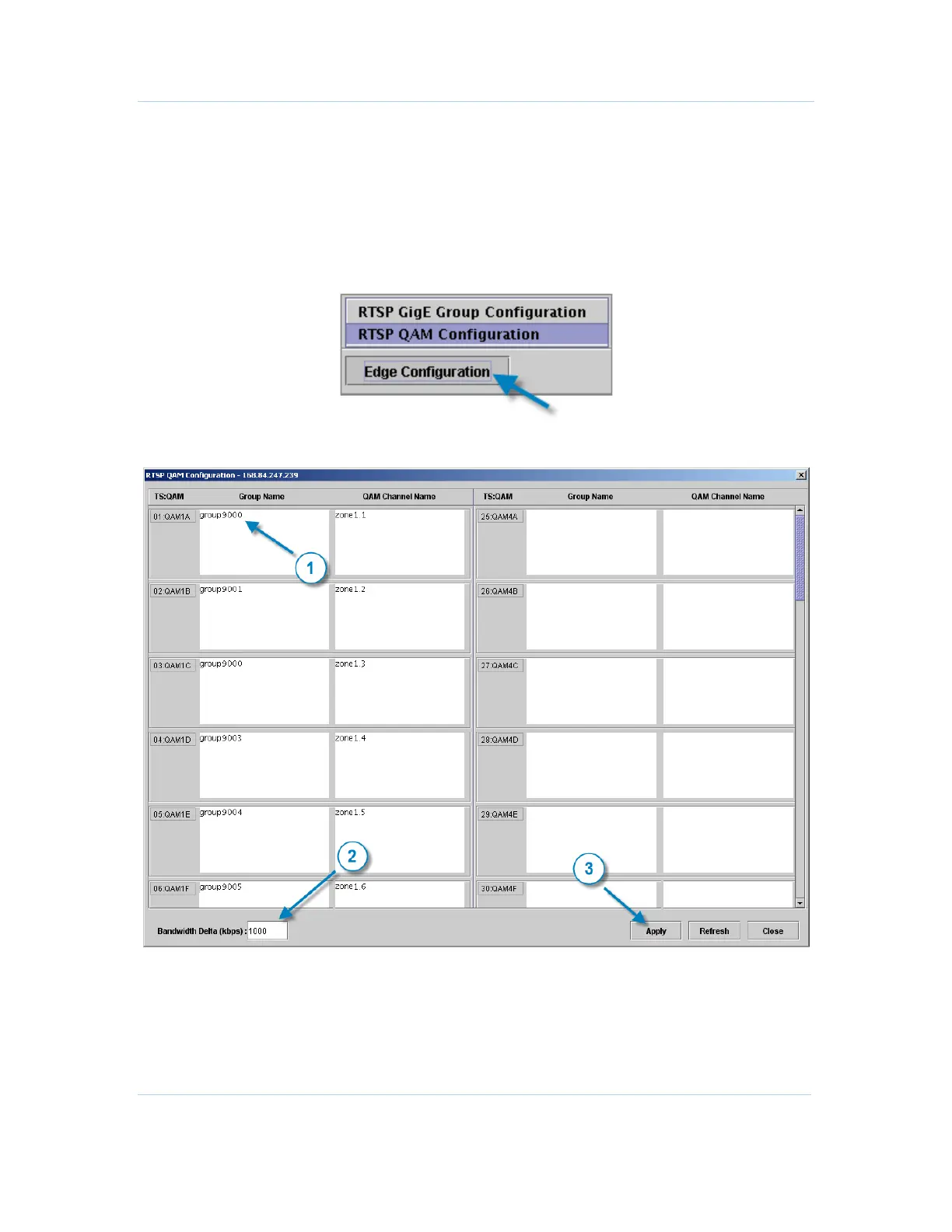

You must also use the RTSP QAM Configuration window to configure the APEX1000

QAM outputs:

1. Select SDV > RTSP QAM Config

2. Click the Edge Configuration button on the RTSP Controller Configuration window,

and then select RTSP QAM Configuration:

The RTSP QAM Configuration window displays:
