MC40IntegratorGuide
2Alignthelipofthecupwiththeslotonthefrontofthecradle.EnsurethatthecupispositionedwithintheSlot
AlignmentTabs.

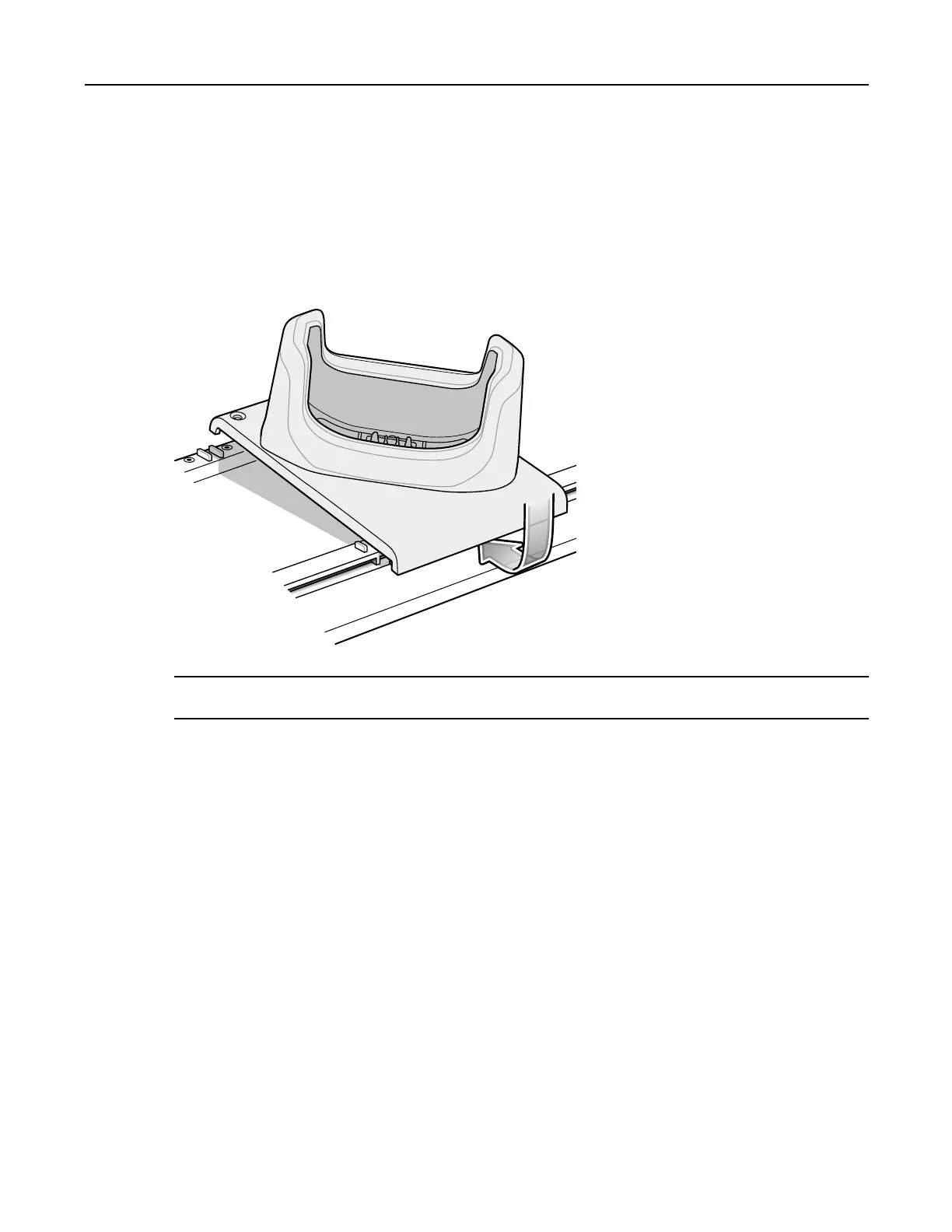

Figure2-11FiveSlotChargeOnlyCradleCupInstallation
3Slidethelipintotheslotandrotatethecupuntilitisatonthecradlebase.
2-12
MN000112A01-September2013
